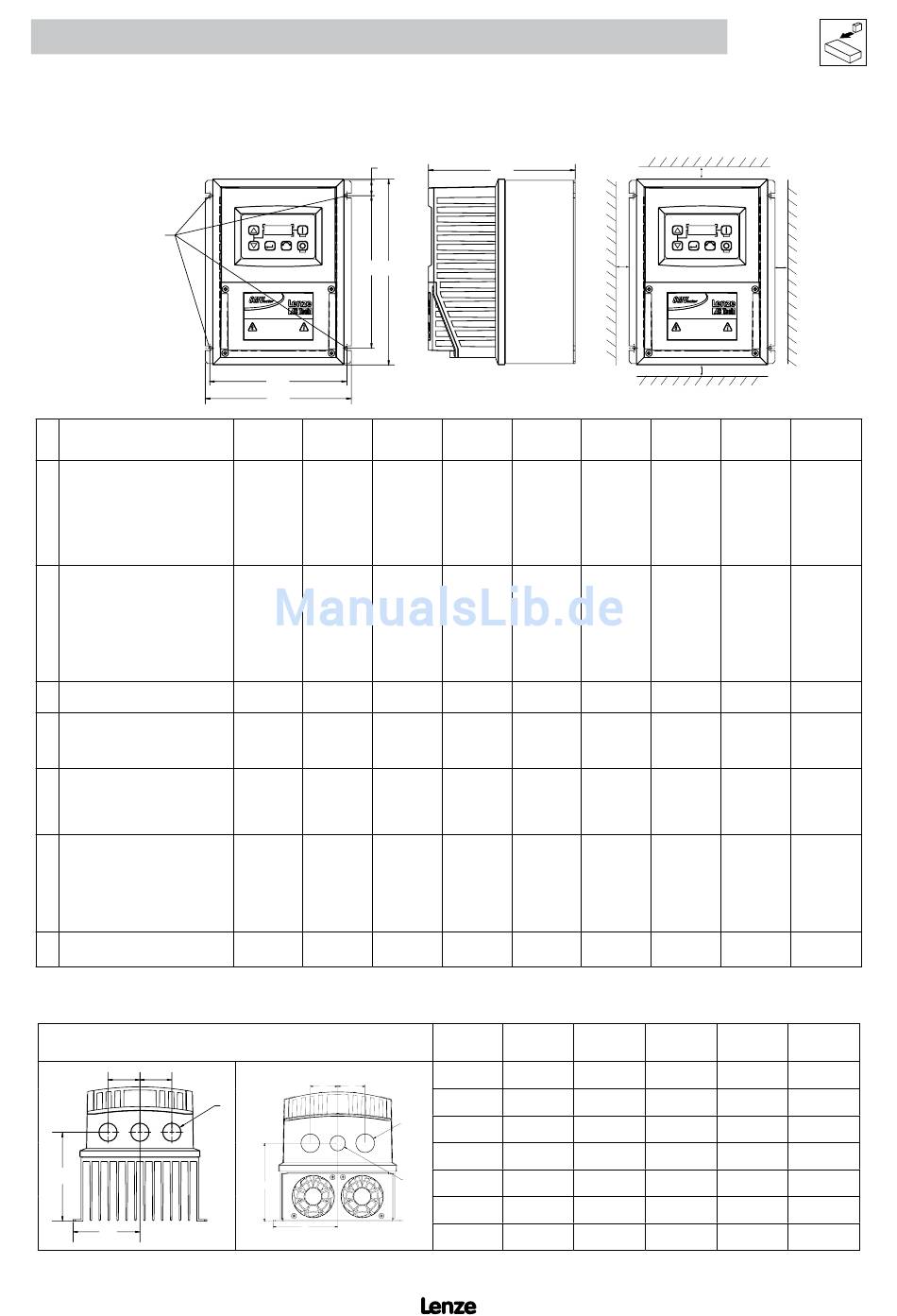

3.1.3 NEMA 4X-Modelle (IP65)
Befestigungsschrauben
4 x #8-32
10 lb-in
( )
4 x M4
1.2 Nm
Typ
ESV371N01SX_; ESV751N01SX_;
ESV371N02YX_; ESV751N02YX_;
ESV371N04TX_; ESV751N04TX_;
R1
ESV751N06TX_; ESV371N02SF_;
ESV751N02SF_; ESV371N04TF_;
ESV751N04TF_;
ESV112N01SX_; ESV112N02YX_;
ESV152N02YX_; ESV112N04TX_;
ESV152N04TX_; ESV222N04TX_;
R2 ESV152N06TX_; ESV222N06TX_;
ESV112N02SF_; ESV152N02SF_;
ESV112N04TF_; ESV152N04TF_;
ESV222N04TF_; ESV302N04TF_;
S1 ESV222N02YX_; ESV222N02SF_
ESV552N02TX~; ESV752N02TX~
T1 ESV752N04TX~; ESV752N06TX~;
ESV752N04TF~
ESV402N02TX_; ESV402N04TX_;
ESV552N04TX_; ESV402N06TX_
V1
ESV552N06TX_; ESV402N04TF_;
ESV552N04TF_
ESV113N02TX~; ESV153N02TX~
ESV113N04TX~; ESV153N04TX~
ESV113N04TF~; ESV153N04TF~
W1
ESV113N06TX~; ESV153N06TX~
ESV183N04TX~; ESV183N04TF~
ESV183N06TX~
ESV223N04TX~; ESV223N04TF~
X1
ESV223N06TX~
_ = Typenbez. letztes Zeichen: C = N4X nur innen einsetzbar (konvektionsgekühlt)
E = N4X innen/außen einsetzbar (konvektionsgekühlt)
Abmessungen Leitungsführung
Q Q
P
N
EDBSV01_13434350 EN/DE/ES/FR/IT/PT
b2
b1 b
a1
a
a a1
Inch (mm) Inch (mm) Inch (mm)
6.28 (160) 5.90 (150) 8.00 (203)
6.28 (160) 5.90 (150) 8.00 (203)
7.12 (181) 6.74 (171) 8.00 (203)
8.04 (204) 7.56 (192) 10.00 (254)
8.96 (228) 8.48 (215) 10.00 (254)
9.42 (240) 8.94 (228) 14.50 (368)
9.42 (240) 8.94 (228) 18.5 (470)
Q Q
S
P
N
Installation
c
b b1 b2
Inch (mm) Inch (mm)
6.56 (167) 0.66 (17)
6.56 (167) 0.66 (17)
6.56 (167) 0.66 (17)
8.04 (204) 0.92 (23)
8.04 (204) 0.92 (23)
12.54 (319) 0.92 (24)
16.54 (420) 0.92 (24)
~ = Typenbez. letztes Zeichen:
N
Typ
Inch (mm)
R1 3.14 (80)
R2 3.14 (80)
S
S1 3.56 (90)
T1 4.02 (102)
S1 V1 4.48 (114)
W1 4.71 (120)
X1 4.71 (120)
s2
s1
s2
c s1 s2
Inch (mm) Inch (mm) Inch (mm)
4.47 (114) 2.00 (51) 2.00 (51)
6.31 (160) 2.00 (51) 2.00 (51)
6.77 (172) 2.00 (51) 2.00 (51)
8.00 (203) 4.00 (102) 4.00 (102)
8.00 (203) 4.00 (102) 4.00 (102)
9.45 (241) 4.00 (102) 4.00 (102)
9.45 (241) 4.00 (102) 4.00 (102)
D = N4X nur innen einsetzbar (mit Lüfter)
F = N4X innen/außen einsetzbar (mit Lüfter)
P Q S
Inch (mm) Inch (mm) Inch (mm)
2.33 (59) 1.50 (38) .88 (22)
4.18 (106) 1.50 (38) .88 (22)
4.63 (118) 1.50 (38) .88 (22)
5.00 (127) 1.85 (47) 1.06 (27)
5.00 (127) 1.85 (47) 1.06 (27)
5.70 (145) 2.00 (51) 1.375 (35)
5.70 (145) 2.00 (51) 1.375 (35)
s1
m
lb (kg)
3.6 (1.63)
5.9 (2.68)
7.1 (3.24)
10.98 (4.98)
11.58 (5.25)
22.0 (10.0)
25.5 (11.6)
S1
Inch (mm)
n. v.
n. v.
n. v.
n. v.
n. v.
1.125 (28)
1.125 (28)
13
