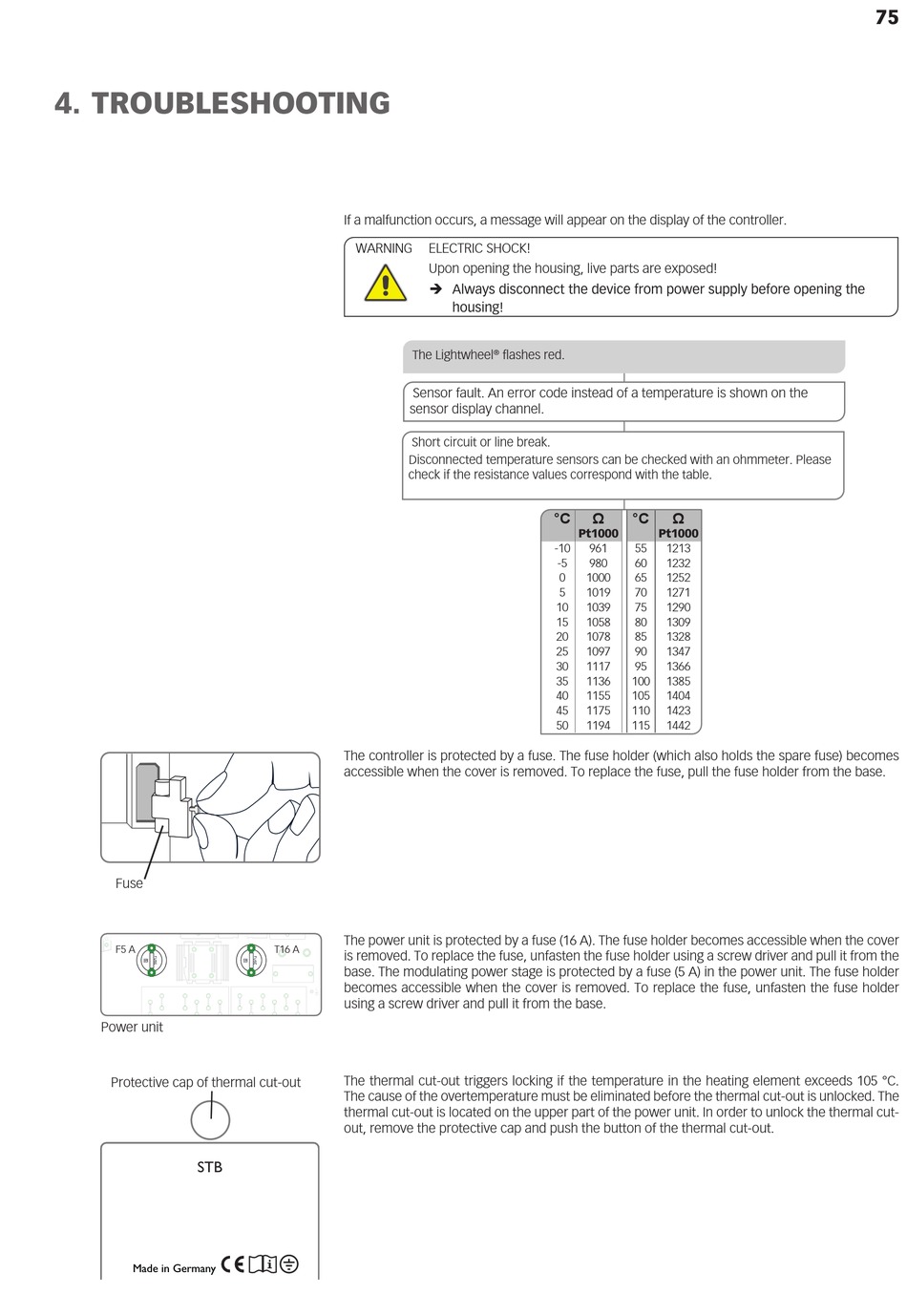

4. TROUBLESHOOTING
Etikett t t
Etikett
Fuse
F5 A
Power unit
Protective cap of thermal cut-out
STB
Made in Germany
If a malfunction occurs, a message will appear on the display of the controller.
WARNING
The controller is protected by a fuse. The fuse holder (which also holds the spare fuse) becomes
accessible when the cover is removed. To replace the fuse, pull the fuse holder from the base.
Wago 2091-1130
Wago 2091-1130
The power unit is protected by a fuse (16 A). The fuse holder becomes accessible when the cover
T16 A
is removed. To replace the fuse, unfasten the fuse holder using a screw driver and pull it from the
base. The modulating power stage is protected by a fuse (5 A) in the power unit. The fuse holder
becomes accessible when the cover is removed. To replace the fuse, unfasten the fuse holder
using a screw driver and pull it from the base.
The thermal cut-out triggers locking if the temperature in the heating element exceeds 105 °C.
The cause of the overtemperature must be eliminated before the thermal cut-out is unlocked. The
thermal cut-out is located on the upper part of the power unit. In order to unlock the thermal cut-
out, remove the protective cap and push the button of the thermal cut-out.
ELECTRIC SHOCK!
Upon opening the housing, live parts are exposed!
Î Always disconnect the device from power supply before opening the
housing!
The Lightwheel
flashes red.
®
Sensor fault. An error code instead of a temperature is shown on the
sensor display channel.
Short circuit or line break.
Disconnected temperature sensors can be checked with an ohmmeter. Please
check if the resistance values correspond with the table.
°C
Pt1000
-10
-5
0
5
10
15
20
25
30
35
40
45
50
Ω
°C
Ω
Pt1000
961
55
1213
980
60
1232
1000
65
1252
1019
70
1271
1039
75
1290
1058
80
1309
1078
85
1328
1097
90
1347
1117
95
1366
1136
100
1385
1155
105
1404
1175
110
1423
1194
115
1442
75
