TECHNICAL DATA AND FUNCTION OVERVIEW
• Increase in self-consumption of the PV system
• Environmental protection and reduction of heating costs
• Store excess PV current as regenerative thermal energy
• Optimisation of solar current feed-in
• Can be fitted to all central heating and hot water systems
• One solar system for current and heat

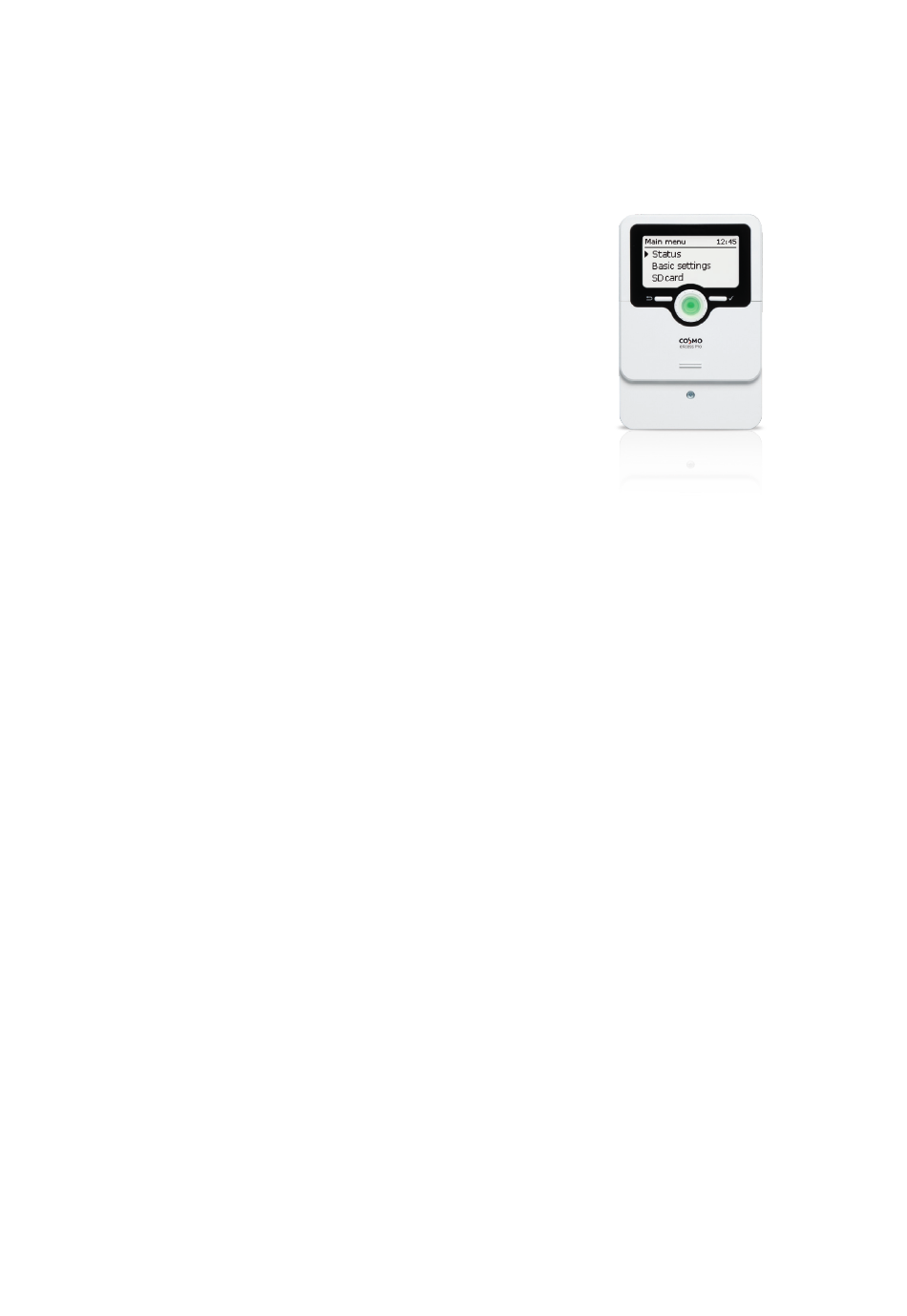

CONTROLLER
Inputs:
4 Pt1000 temperature sensors, 2 digital swit-
ching inputs, 1 RPS Grundfos Direct SensorTM
(analogue)
Outputs:
3 semiconductor relays, 1 potential-free extra-
low voltage relay, 1 PWM output
PWM frequency:
512 Hz
PWM voltage:
10.8 V
Switching capacity:
1 (1) A 240 V~ (semiconductor relay)
1 (1) A 30 V ⎓ (potential-free relay)
Total switching capacity:
3 A 240 V~
Power supply:
100 – 240 V~ (50 – 60 Hz)
Supply connection:
type X attachment
Standby:
0.89 W
Mode of operation:
type 1.B.C.Y action
Rated impulse voltage:
2.5 kV
Data interface:
VBus
, MicroSD card slot
®
VBus
current supply:
®
60 mA
Functions:
controlling a hydraulic group and electric
heater for using excess PV current for heating
a store, internal backup heating, external
backup heating, S0 Excess, S0 Heating, Smart
Remote, external load, inverter
Housing:
plastic, PC-ABS and PMMA
Montage:
integrated in the station
Indication / Display:
full graphic display, control LED (Lightwheel
and background illumination
Operation:
2 buttons and 1 adjustment dial (Lightwheel
Ingress protection:
IP 20 / EN 60529
Protection class:
I
Ambient temperature:
0 ... 40 °C
Degree of pollution
2
Fuse:
T4A
Relative humidity:
10 ... 90 %
Maximum altitude:
2000 m NN
Maße:
110 x 166 x 47 mm
Overvoltage category:
2
Maximum altitude:
2000 m above MSL
Dimensions:
ca. 110 x 166 x 47 mm
)
®
®
)
SENSOR MODULE
Inputs:
3 current inputs for CT, 3 voltage inputs
Outputs:
2 digital S0 impulse outputs
Power supply:
100 – 240 V~ (50 – 60 Hz))
Supply connection:
Y
Standby:
< 1 W
Rated impulse voltage:
1,0 kV
Data interface:
VBus
®
Funktions:
energy measuring unit
Housing:
plastic, PC (UL 94 V-0)
Mounting:
DIN rail in the domestic distribution board
Indication / Display:
2 operating control LEDs
Ingress protection:
IP 20 / DIN EN 60529
Protection class:
II
Ambient temperature:
0 ... 40 °C
Degree of pollution:
2
Dimensions:
71 x 90 x 58 mm
