72

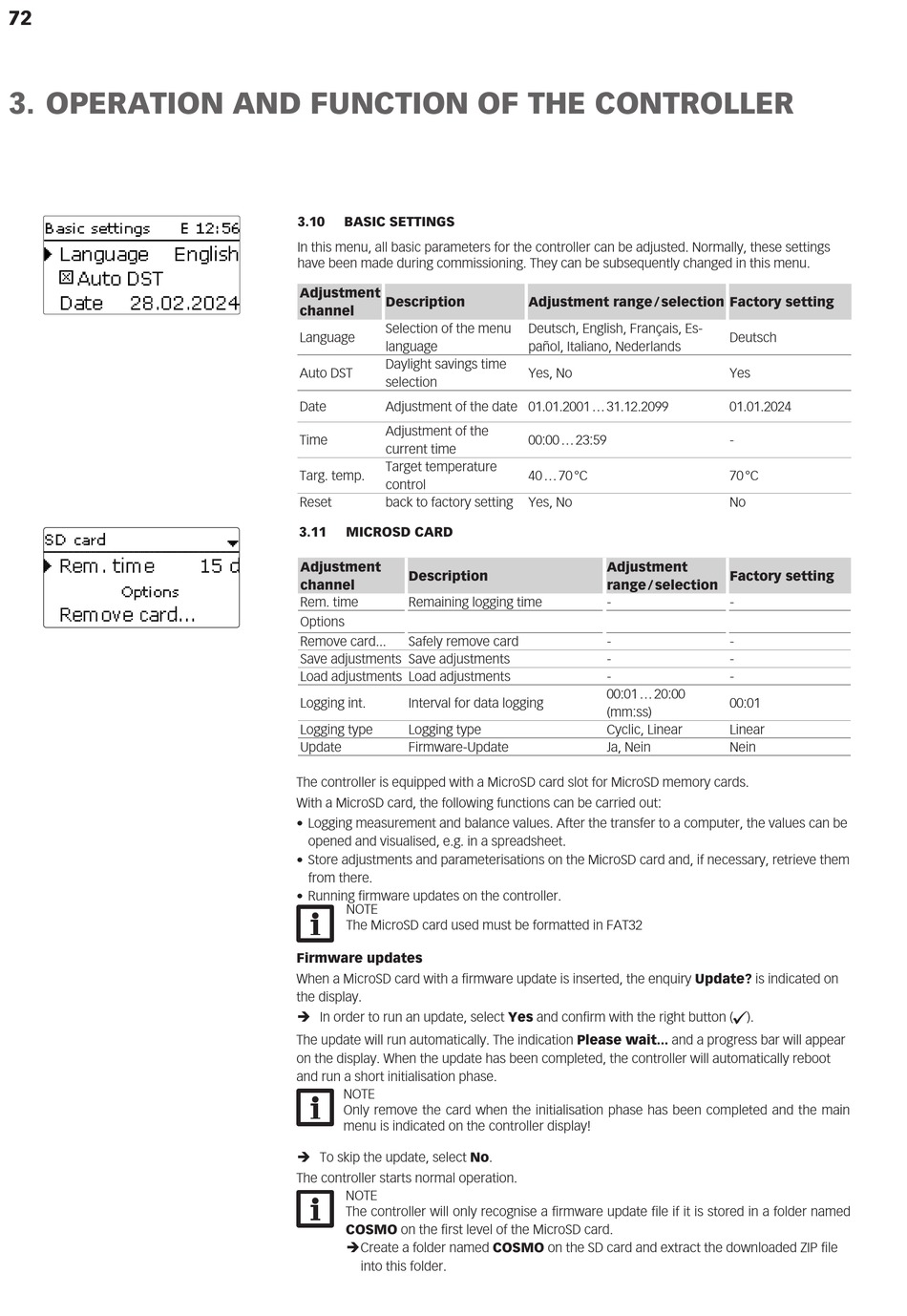

3. OPERATION AND FUNCTION OF THE CONTROLLER
3.10
BASIC SETTINGS
In this menu, all basic parameters for the controller can be adjusted. Normally, these settings
have been made during commissioning. They can be subsequently changed in this menu.
Adjustment
Description
channel
Selection of the menu
Language
language
Daylight savings time
Auto DST
selection
Date
Adjustment of the date 01.01.2001 ... 31.12.2099
Adjustment of the
Time
current time
Target temperature
Targ. temp.
control
Reset
back to factory setting
3.11
MICROSD CARD
Adjustment
Description
channel
Rem. time
Remaining logging time
Options
Remove card...
Safely remove card
Save adjustments Save adjustments
Load adjustments Load adjustments
Logging int.
Interval for data logging
Logging type
Logging type
Update
Firmware-Update
The controller is equipped with a MicroSD card slot for MicroSD memory cards.
With a MicroSD card, the following functions can be carried out:
• Logging measurement and balance values. After the transfer to a computer, the values can be
opened and visualised, e.g. in a spreadsheet.
• Store adjustments and parameterisations on the MicroSD card and, if necessary, retrieve them
from there.
• Running firmware updates on the controller.
NOTE
The MicroSD card used must be formatted in FAT32
Firmware updates
When a MicroSD card with a firmware update is inserted, the enquiry Update? is indicated on
the display.
Î In order to run an update, select Yes and confirm with the right button (✓).
The update will run automatically. The indication Please wait... and a progress bar will appear
on the display. When the update has been completed, the controller will automatically reboot
and run a short initialisation phase.
NOTE
Only remove the card when the initialisation phase has been completed and the main
menu is indicated on the controller display!
Î To skip the update, select No.
The controller starts normal operation.
NOTE
The controller will only recognise a firmware update file if it is stored in a folder named
COSMO on the first level of the MicroSD card.
ÎCreate a folder named COSMO on the SD card and extract the downloaded ZIP file
into this folder.
Adjustment range / selection Factory setting
Deutsch, English, Français, Es-
pañol, Italiano, Nederlands
Yes, No
00:00 ... 23:59
40 ... 70 °C
Yes, No
Adjustment
range / selection
-
-
-
-
00:01 ... 20:00
(mm:ss)
Cyclic, Linear
Ja, Nein
Deutsch
Yes
01.01.2024
-
70 °C
No
Factory setting
-
-
-
-
00:01
Linear
Nein
