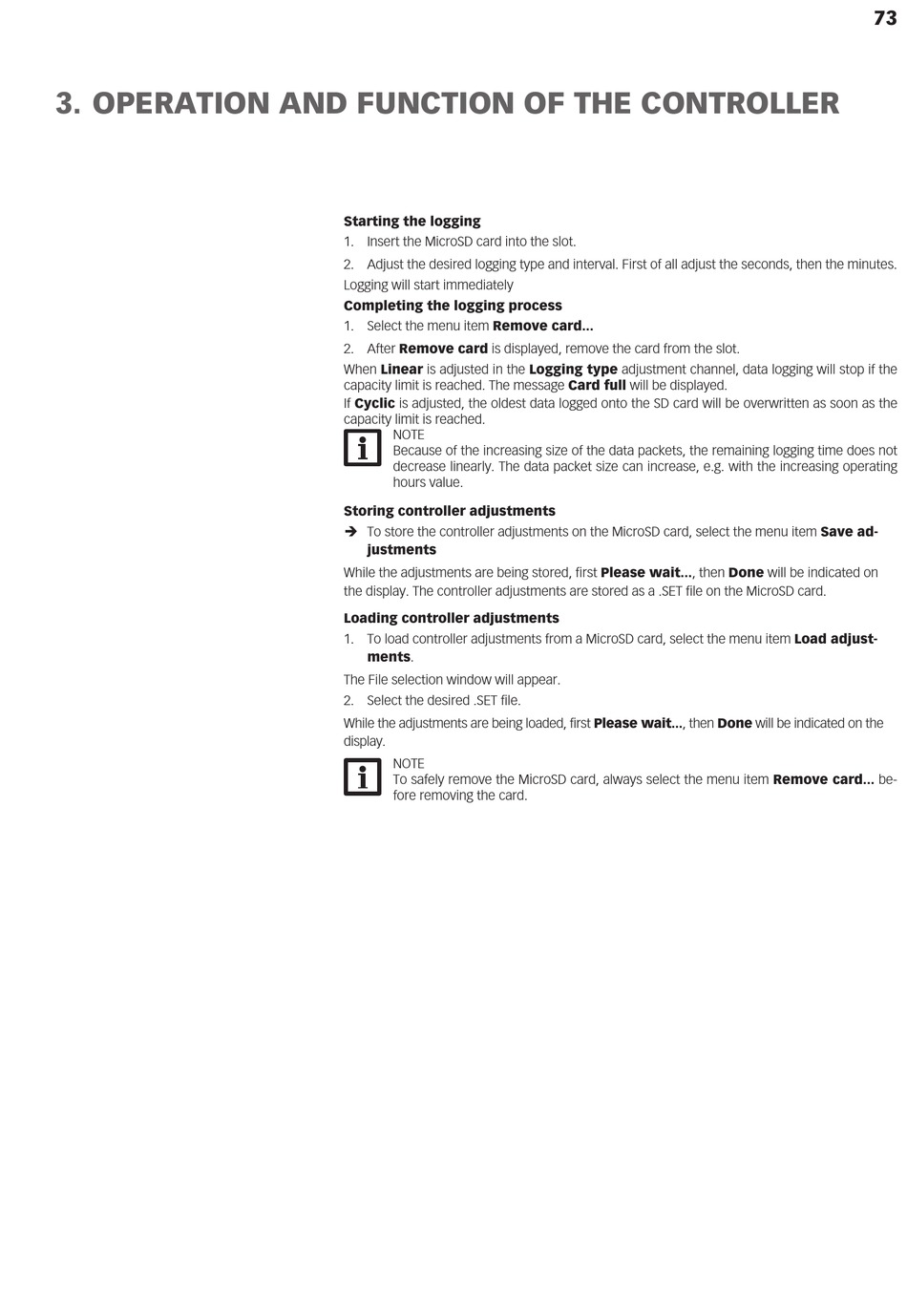

3. OPERATION AND FUNCTION OF THE CONTROLLER
Starting the logging
1. Insert the MicroSD card into the slot.
2. Adjust the desired logging type and interval. First of all adjust the seconds, then the minutes.
Logging will start immediately
Completing the logging process
1. Select the menu item Remove card...
2. After Remove card is displayed, remove the card from the slot.
When Linear is adjusted in the Logging type adjustment channel, data logging will stop if the
capacity limit is reached. The message Card full will be displayed.
If Cyclic is adjusted, the oldest data logged onto the SD card will be overwritten as soon as the
capacity limit is reached.
NOTE
Because of the increasing size of the data packets, the remaining logging time does not
decrease linearly. The data packet size can increase, e.g. with the increasing operating
hours value.
Storing controller adjustments
Î To store the controller adjustments on the MicroSD card, select the menu item Save ad-
justments
While the adjustments are being stored, first Please wait..., then Done will be indicated on
the display. The controller adjustments are stored as a .SET file on the MicroSD card.
Loading controller adjustments
1. To load controller adjustments from a MicroSD card, select the menu item Load adjust-
ments.
The File selection window will appear.
2. Select the desired .SET file.
While the adjustments are being loaded, first Please wait..., then Done will be indicated on the
display.
NOTE
To safely remove the MicroSD card, always select the menu item Remove card... be-
fore removing the card.
73
