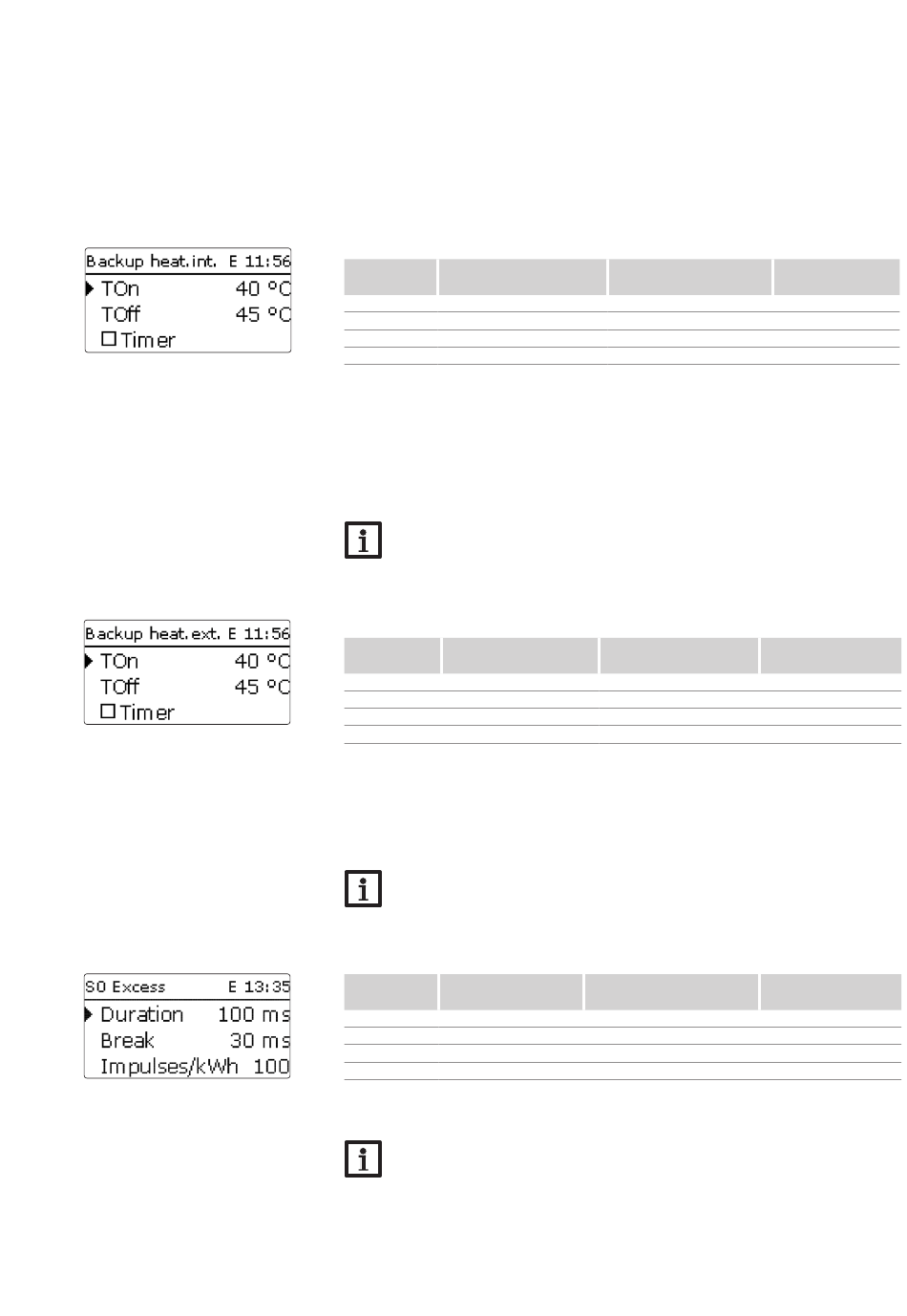

3. OPERATION AND FUNCTION OF THE CONTROLLER
INTERNAL BACKUP HEATING
Opt. functions / Add new function / Backup heat.int.
Adjustment
Description
channel
TOn
Switch-on temperature
TOff
Switch-off temperature
Timer
Timer option
Funct.
Activation / Deactivation
The Backup heat.int. function is used for operating the electrothermal station for backup
heating with current from the mains. For this purpose, the power stages of the power unit and
the pump (R1) switch on. The switch-on and switch-off temperatures TOn and TOff are used as
reference parameters.
If the temperature falls below the adjusted threshold TOn, the power stages and the relay switch
on. They switch off if the temperature exceeds the threshold TOff.
S3 is used as the reference sensor (non-adjustable).
NOTE
For information on timer adjustment see page 14.
EXTERNAL BACKUP HEATING
Opt. functions / Add new function / Backup heat.ext.
Adjustment
Description
channel
TOn
Switch-on temperature
TOff
Switch-off temperature
Timer
Timer option
Funct.
Activation / Deactivation
The Backup heat.ext. function is used for operating the electrothermal station for backup hea-
ting by means of an external heat source (e.g. heat pump, solid fuel boiler). The switch-on and
switch-off temperatures TOn and TOff are used as reference parameters.
If the temperature falls below the adjusted threshold TOn, R2 is energised at 100 %. It switches off
if the temperature exceeds the threshold TOff.
S3 is used as the reference sensor (non-adjustable).
NOTE
For information on timer adjustment see page 14.
S0 EXCESS
Opt. functions / Add new function / S0 Excess
Adjustment
Description
channel
Duration
Impulse duration
Break
Impulse break
Impulses/kWh Impulse rate
Funct.
Activation / Deactivation Activated, Deactivated
The S0 Excess function is used for activating the digital impulse output S0-2 of the sensor mod-
ule in order to issue the balanced excess energy in the form of impulses.
The impulse duration, break and rate can be adjusted.
NOTE
This function is only available, if the variant Sensor module has been selected in the
Variant menu.
Adjustment range / se-
lection
20 ... 74 °C
21 ... 75 °C
Yes, No
Activated, Deactivated
Adjustment range / se-
lection
20 ... 84 °C
21 ... 85 °C
Yes, No
Activated, Deactivated
Adjustment range / se-
lection
30 ... 120 ms
30 ... 120 ms
1 ... 1000
69
Factory setting
40 °C
45 °C
No
Activated
Factory setting
40 °C
45 °C
No
Activated
Factory setting
100 ms
30 ms
100
Activated
