2. INSTALLATION

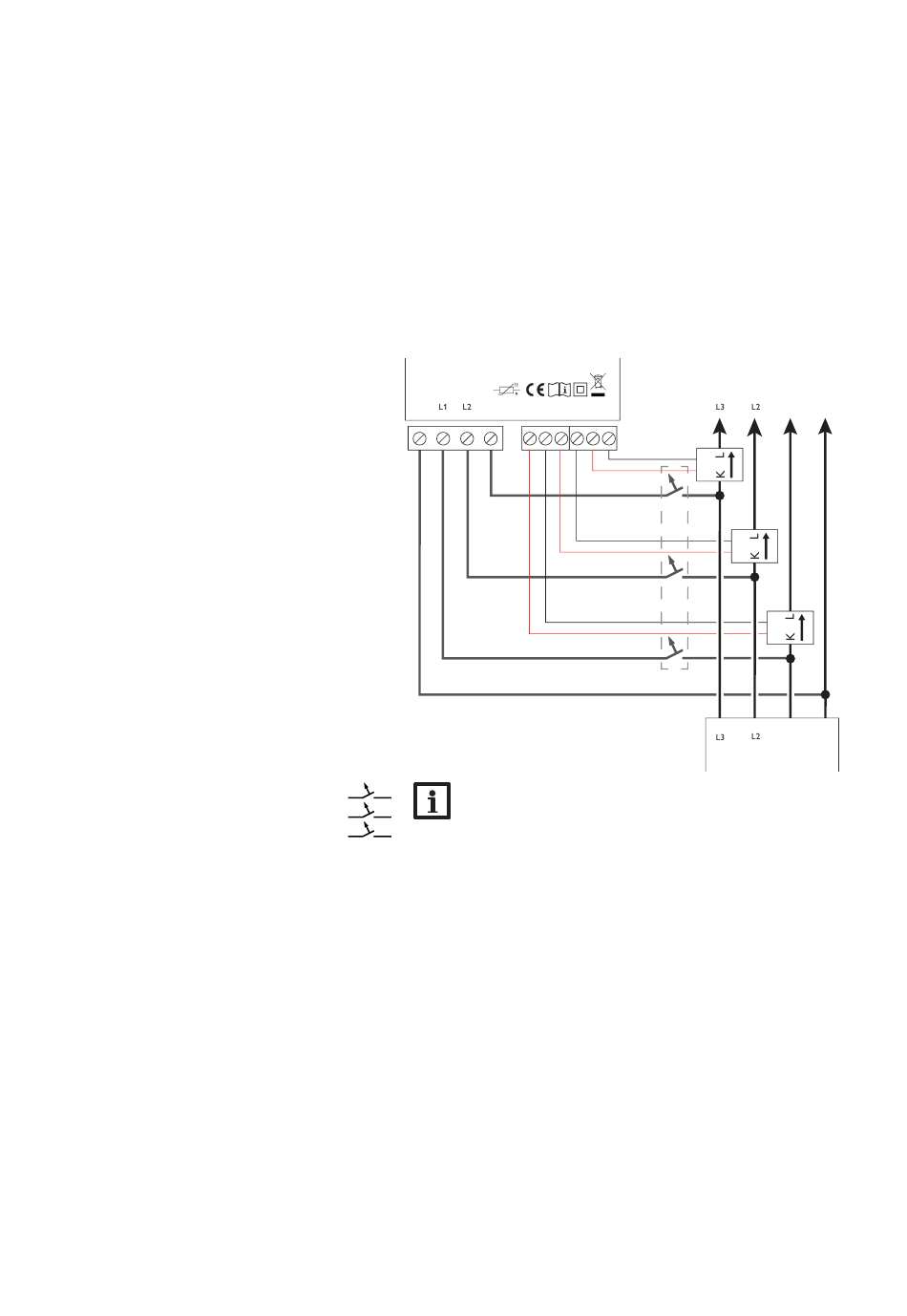

THREE-PHASE CONNECTION
1. Connect the current sensors and the conductors of the sensor module in phase directly at
the energy meter. The arrow indicated on the current sensors must point in the direction of
the loads.
2. Make sure that no load is installed between the energy meter and the current sensors.
The sensor module adds up the power values of all 3 phases. All 3 phases have to be connected
to the sensor module.
Versorgung / Power supply
160mA 240V~
N L3
NOTE
The 3 phases have to be protected by means of a three-phase 16 A cir-
cuit-breaker (not included with the device).
CTL1 CTL2 CTL3
black
red
black
red
black
red
49
Loads
L1 N
L1 N
Energy meter
