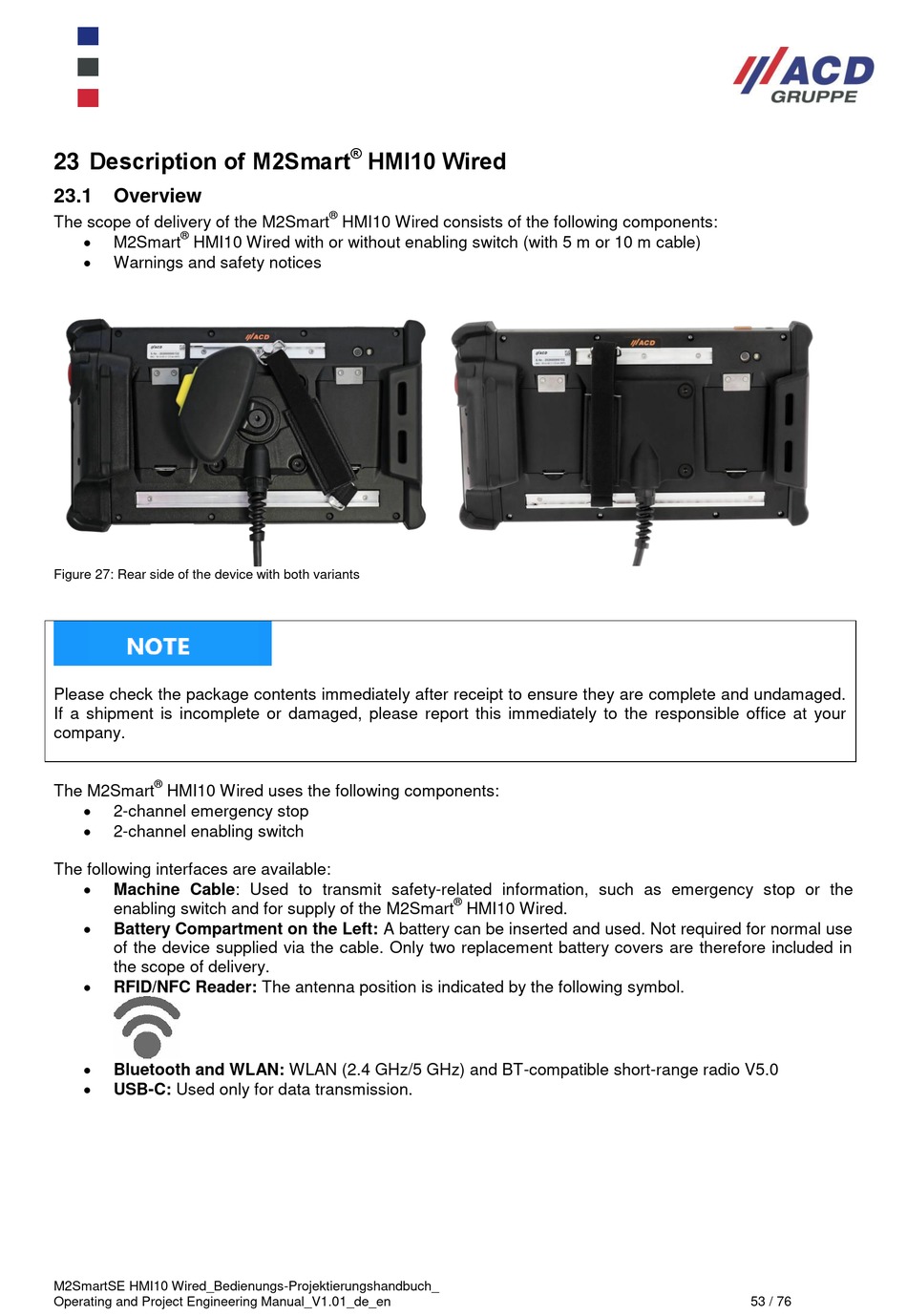

23 Description of M2Smart
23.1 Overview
The scope of delivery of the M2Smart
®

M2Smart HMI10 Wired with or without enabling switch (with 5 m or 10 m cable)

Warnings and safety notices
Figure 27: Rear side of the device with both variants
Please check the package contents immediately after receipt to ensure they are complete and undamaged.
If a shipment is incomplete or damaged, please report this immediately to the responsible office at your
company.
®
The M2Smart HMI10 Wired uses the following components:

2-channel emergency stop

2-channel enabling switch
The following interfaces are available:

Machine Cable: Used to transmit safety-related information, such as emergency stop or the
enabling switch and for supply of the M2Smart

Battery Compartment on the Left: A battery can be inserted and used. Not required for normal use
of the device supplied via the cable. Only two replacement battery covers are therefore included in
the scope of delivery.

RFID/NFC Reader: The antenna position is indicated by the following symbol.

Bluetooth and WLAN: WLAN (2.4 GHz/5 GHz) and BT-compatible short-range radio V5.0

USB-C: Used only for data transmission.
M2SmartSE HMI10 Wired_Bedienungs-Projektierungshandbuch_
Operating and Project Engineering Manual_V1.01_de_en
®
HMI10 Wired
®
HMI10 Wired consists of the following components:
®
HMI10 Wired.
