34.1.2 Wall bracket
Passive wall bracket for secure mounting of the M2Smart
magnets for the M2Smart
screws are not included in the scope of delivery.
This wall bracket can optionally also be used with the cable holder.

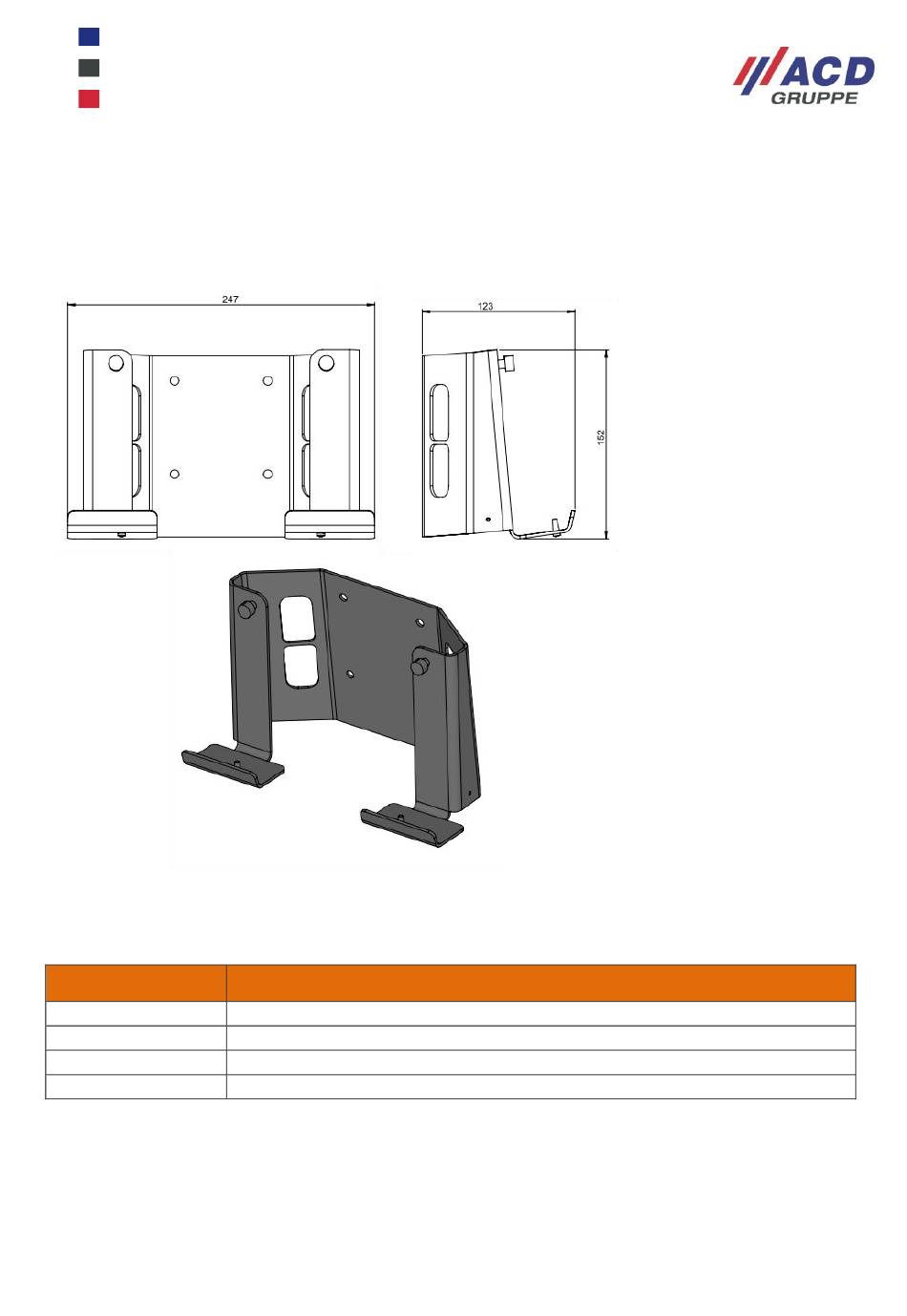

Figure 46: Wall bracket
The holding magnets allow easy insertion and removal, as well as a secure hold of the M2Smart
Wired.
Material
Mounting
Dimensions
Weight
Table 37: Technical data for wall bracket
M2SmartSE HMI10 Wired_Bedienungs-Projektierungshandbuch_
Operating and Project Engineering Manual_V1.01_de_en
®
HMI10 Wired. Used for wall mounting of the bracket with 4x M6 screws. The
Technical Data
Sheet steel, painted deep black (RAL 9005)
The bracket is mounted with 4x screws M6
Approx. 247 x 123 x 152 mm (L x W x H)
Approx. 1140 g
®
HMI10 Wired on the wall including holding
®
HMI10
