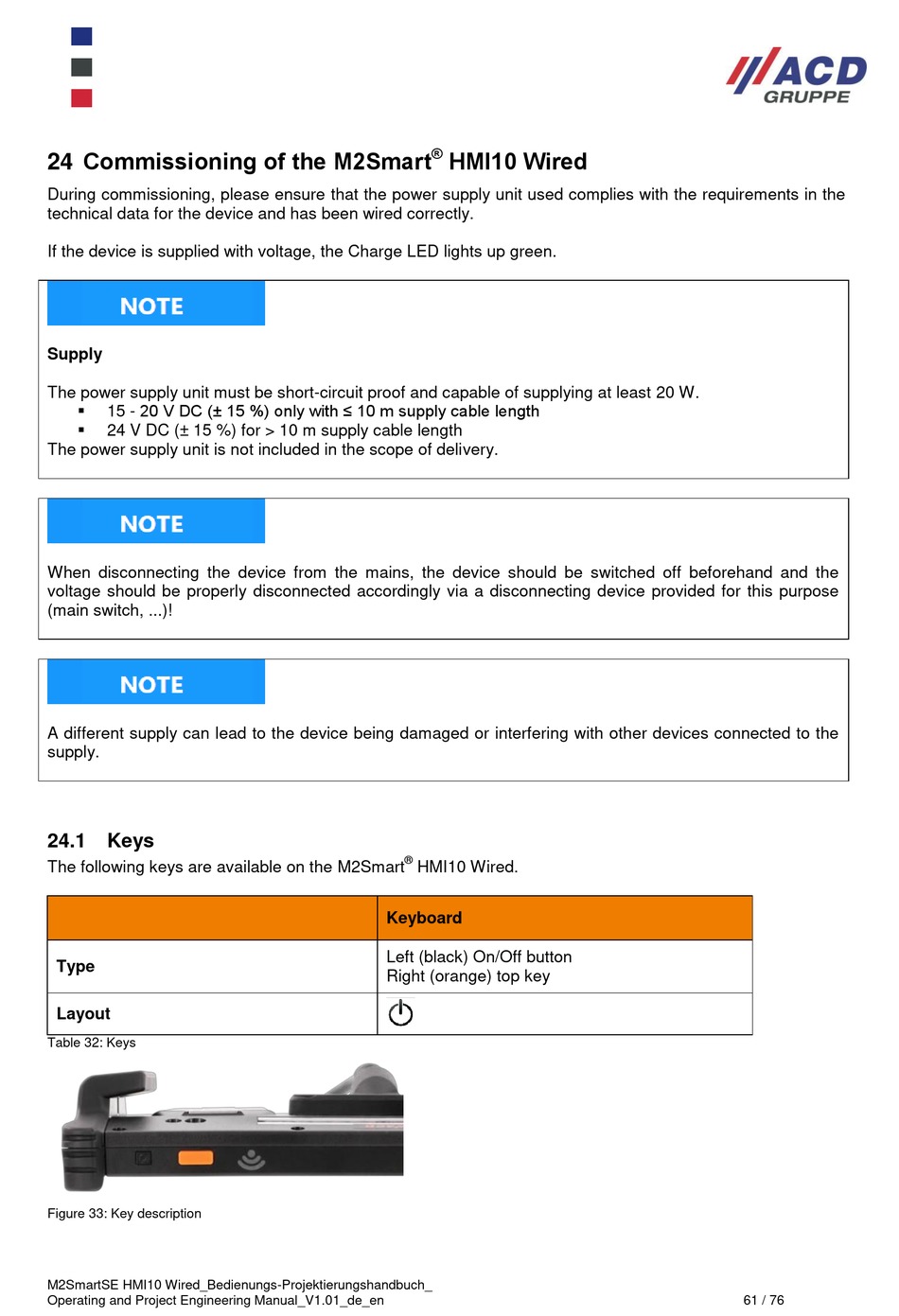

24 Commissioning of the M2Smart
During commissioning, please ensure that the power supply unit used complies with the requirements in the
technical data for the device and has been wired correctly.
If the device is supplied with voltage, the Charge LED lights up green.
Supply
The power supply unit must be short-circuit proof and capable of supplying at least 20 W.
15 - 20 V DC (± 15 %) only with ≤ 10 m supply cable length

 24 V DC (± 15 %) for > 10 m supply cable length
The power supply unit is not included in the scope of delivery.
When disconnecting the device from the mains, the device should be switched off beforehand and the
voltage should be properly disconnected accordingly via a disconnecting device provided for this purpose
(main switch, ...)!
A different supply can lead to the device being damaged or interfering with other devices connected to the
supply.
24.1 Keys
The following keys are available on the M2Smart
Type
Layout
Table 32: Keys
Figure 33: Key description
M2SmartSE HMI10 Wired_Bedienungs-Projektierungshandbuch_
Operating and Project Engineering Manual_V1.01_de_en
®
HMI10 Wired
®
HMI10 Wired.
Keyboard
Left (black) On/Off button
Right (orange) top key
