21 Standards and Directives
21.1 Information in Relation to the MRL 2006/42/EC
This operating and project engineering manual is structured in accordance with the Machinery Directive
2006/42/EC.
The Machinery Directive 2006/42/EC sets out safety requirements for machinery and installations placed
on the market in the European Union.
21.2 Information on Functional Safety according to EN ISO 13849/
Performance Level
The graph for determining the required Performance Level (PL) is based on the identification of the risk and
the resulting need to reduce it to an acceptable level.

Low risk results in PL = a (low risk mitigation measures)

High risk results in PL = e (comprehensive risk mitigation measures)

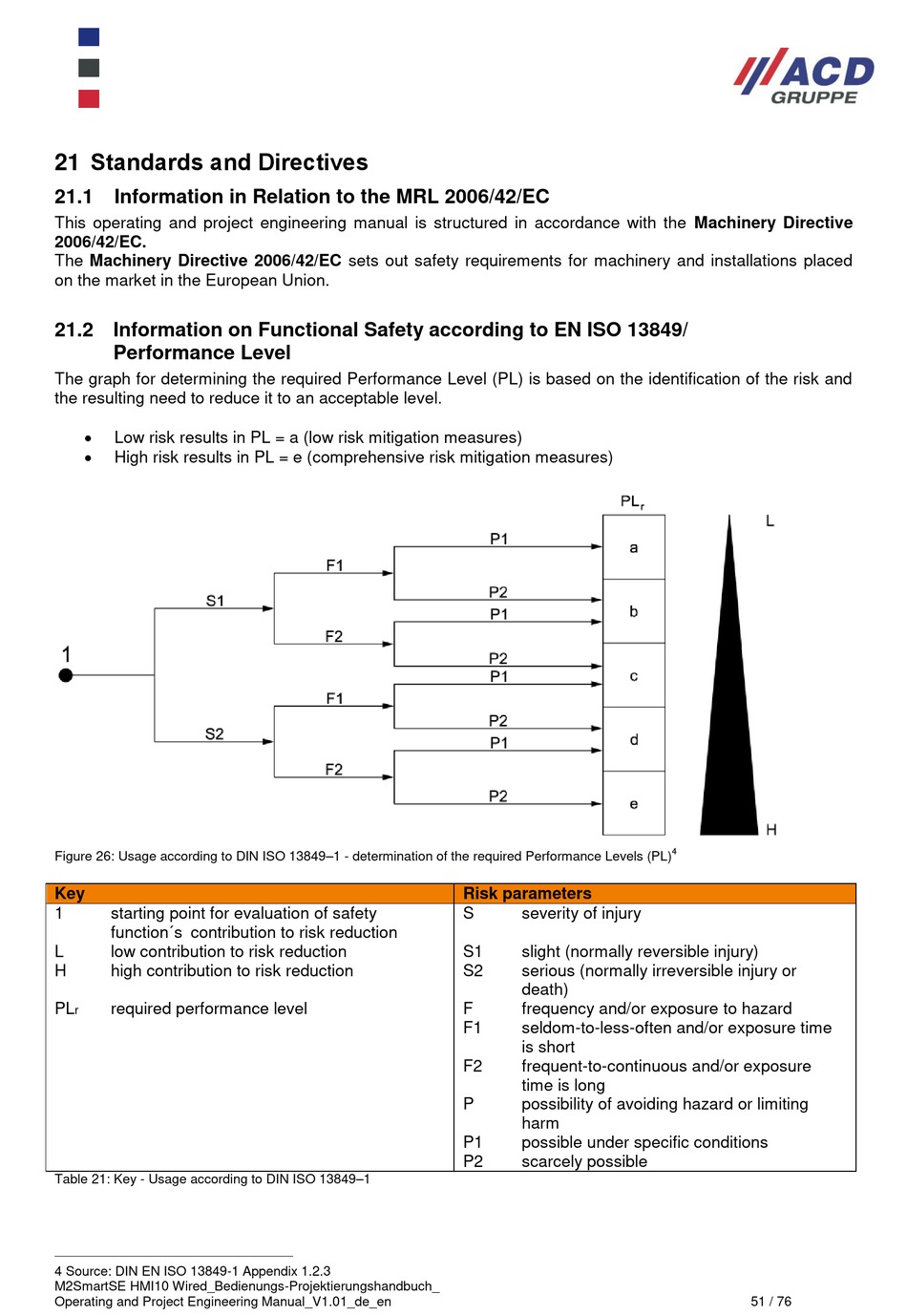

Figure 26: Usage according to DIN ISO 13849–1 - determination of the required Performance Levels (PL)
Key
1 starting point for evaluation of safety
function´s contribution to risk reduction
L low contribution to risk reduction
H high contribution to risk reduction
PL required performance level
r
Table 21: Key - Usage according to DIN ISO 13849–1
4 Source: DIN EN ISO 13849-1 Appendix 1.2.3
M2SmartSE HMI10 Wired_Bedienungs-Projektierungshandbuch_
Operating and Project Engineering Manual_V1.01_de_en
Risk parameters
S severity of injury
S1 slight (normally reversible injury)
S2 serious (normally irreversible injury or
death)
F frequency and/or exposure to hazard
F1 seldom-to-less-often and/or exposure time
is short
F2 frequent-to-continuous and/or exposure
time is long
P possibility of avoiding hazard or limiting
harm
P1 possible under specific conditions
P2 scarcely possible
4
