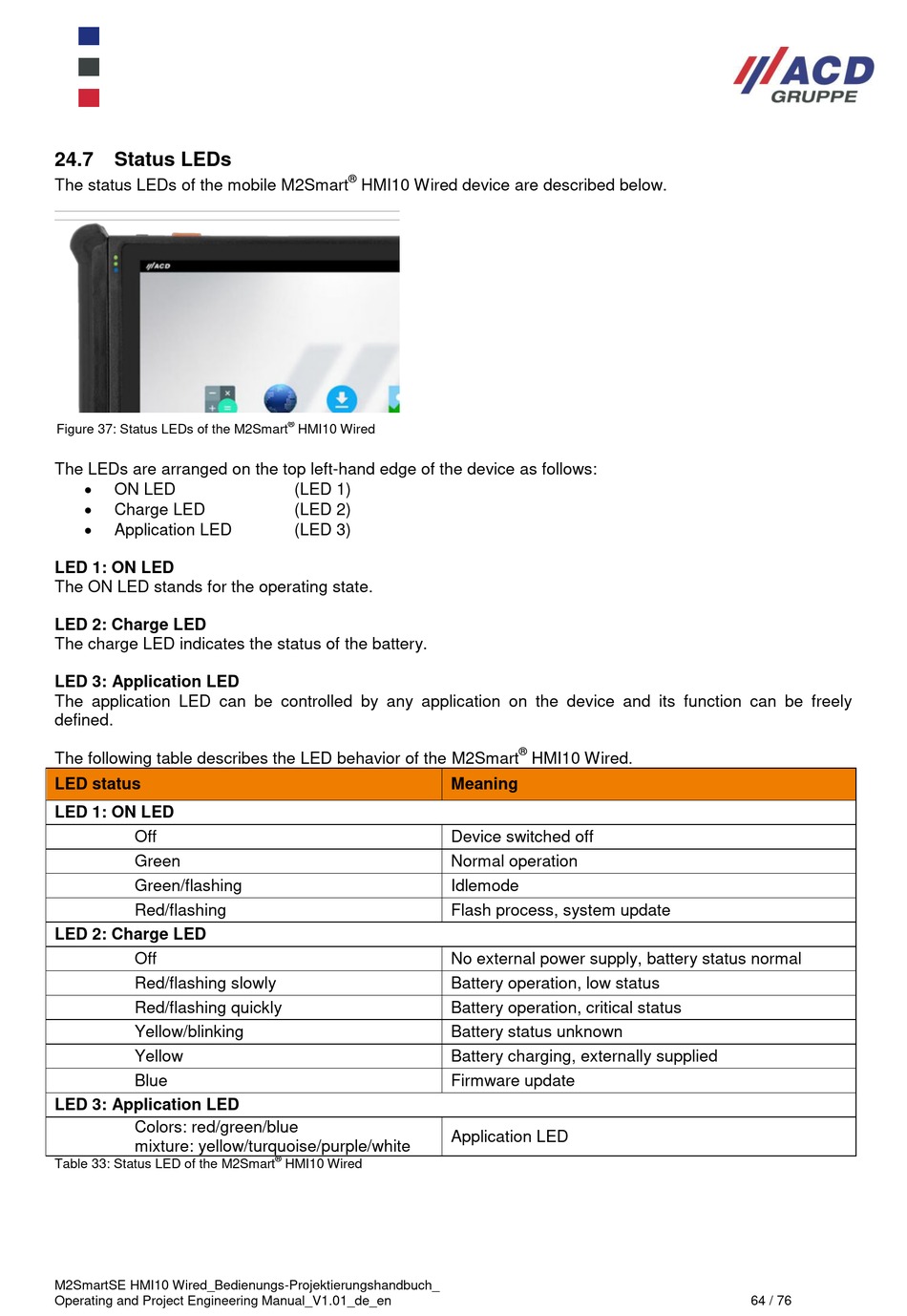

24.7 Status LEDs
The status LEDs of the mobile M2Smart
Figure 37: Status LEDs of the M2Smart
The LEDs are arranged on the top left-hand edge of the device as follows:

ON LED

Charge LED

Application LED
LED 1: ON LED
The ON LED stands for the operating state.
LED 2: Charge LED
The charge LED indicates the status of the battery.
LED 3: Application LED
The application LED can be controlled by any application on the device and its function can be freely
defined.
The following table describes the LED behavior of the M2Smart
LED status
LED 1: ON LED
Off
Green
Green/flashing
Red/flashing
LED 2: Charge LED
Off
Red/flashing slowly
Red/flashing quickly
Yellow/blinking
Yellow
Blue
LED 3: Application LED
Colors: red/green/blue
mixture: yellow/turquoise/purple/white
Table 33: Status LED of the M2Smart
M2SmartSE HMI10 Wired_Bedienungs-Projektierungshandbuch_
Operating and Project Engineering Manual_V1.01_de_en
®
HMI10 Wired device are described below.
®
HMI10 Wired
(LED 1)
(LED 2)
(LED 3)
®
HMI10 Wired
®
HMI10 Wired.
Meaning
Device switched off
Normal operation
Idlemode
Flash process, system update
No external power supply, battery status normal
Battery operation, low status
Battery operation, critical status
Battery status unknown
Battery charging, externally supplied
Firmware update
Application LED
