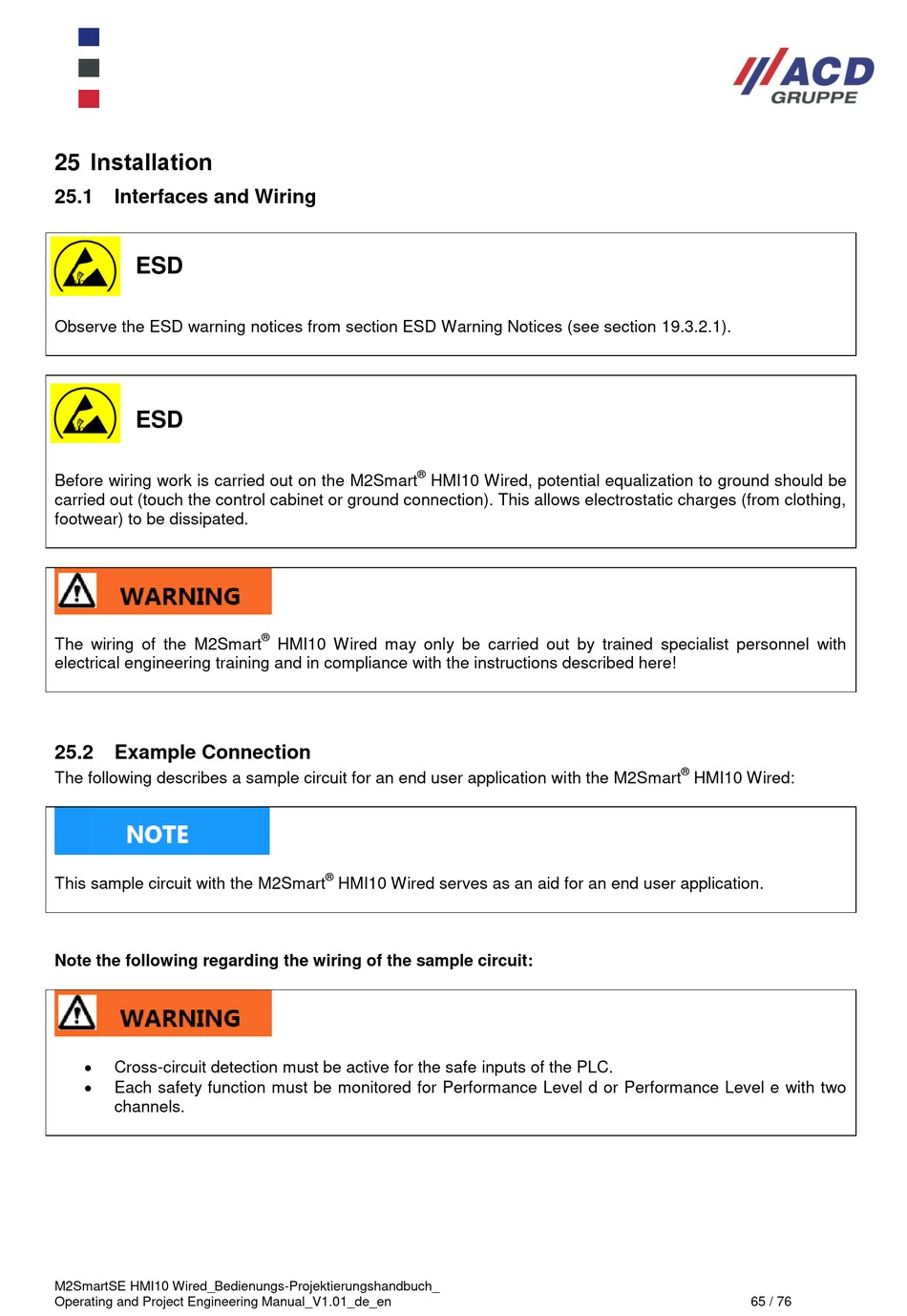

25 Installation
25.1 Interfaces and Wiring
ESD
Observe the ESD warning notices from section ESD Warning Notices (see section 19.3.2.1).
ESD
Before wiring work is carried out on the M2Smart
carried out (touch the control cabinet or ground connection). This allows electrostatic charges (from clothing,
footwear) to be dissipated.
The wiring of the M2Smart
electrical engineering training and in compliance with the instructions described here!
25.2 Example Connection
The following describes a sample circuit for an end user application with the M2Smart
This sample circuit with the M2Smart
Note the following regarding the wiring of the sample circuit:

Cross-circuit detection must be active for the safe inputs of the PLC.

Each safety function must be monitored for Performance Level d or Performance Level e with two
channels.
M2SmartSE HMI10 Wired_Bedienungs-Projektierungshandbuch_
Operating and Project Engineering Manual_V1.01_de_en
®
HMI10 Wired, potential equalization to ground should be
®
HMI10 Wired may only be carried out by trained specialist personnel with
®
HMI10 Wired serves as an aid for an end user application.
®
HMI10 Wired:
