23.2 Device Overview

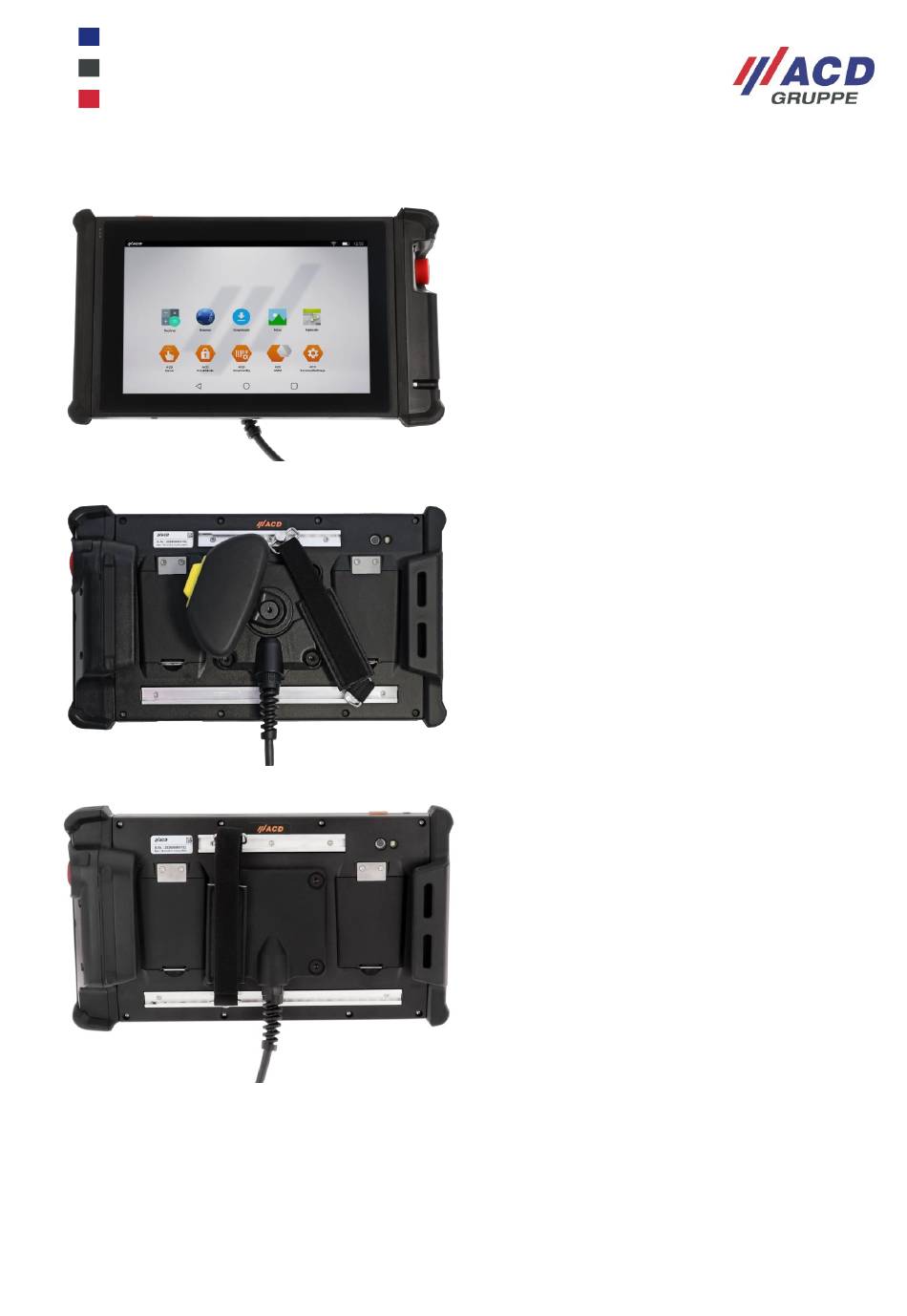

Figure 28: Front view with the emergency stop button
Figure 29: Rear view with enabling switch
Figure 30: Rear view without enabling switch
M2SmartSE HMI10 Wired_Bedienungs-Projektierungshandbuch_
Operating and Project Engineering Manual_V1.01_de_en
The adjacent figure shows the
®
M2Smart HMI10 Wired with
emergency stop on the right
side.
The adjacent figure shows the
®
M2Smart HMI10 Wired with
the enabling switch on the
back.
The position of the enabling
switch can be ergonomically
adjusted by rotating the
handle.
The adjacent figure shows the
®
M2Smart HMI10 Wired
without the enabling switch on
the back.
