27.1.3 Right and Left-Handed Operation
®
The M2Smart
HMI10 Wired is designed for right- and left-handed operation. The device is always delivered
ready for right-handed operation.
To change to left-handed operation, change the position of the handle:
1. Loosen the screw of the handle slightly with a Torx T30 screwdriver.
®

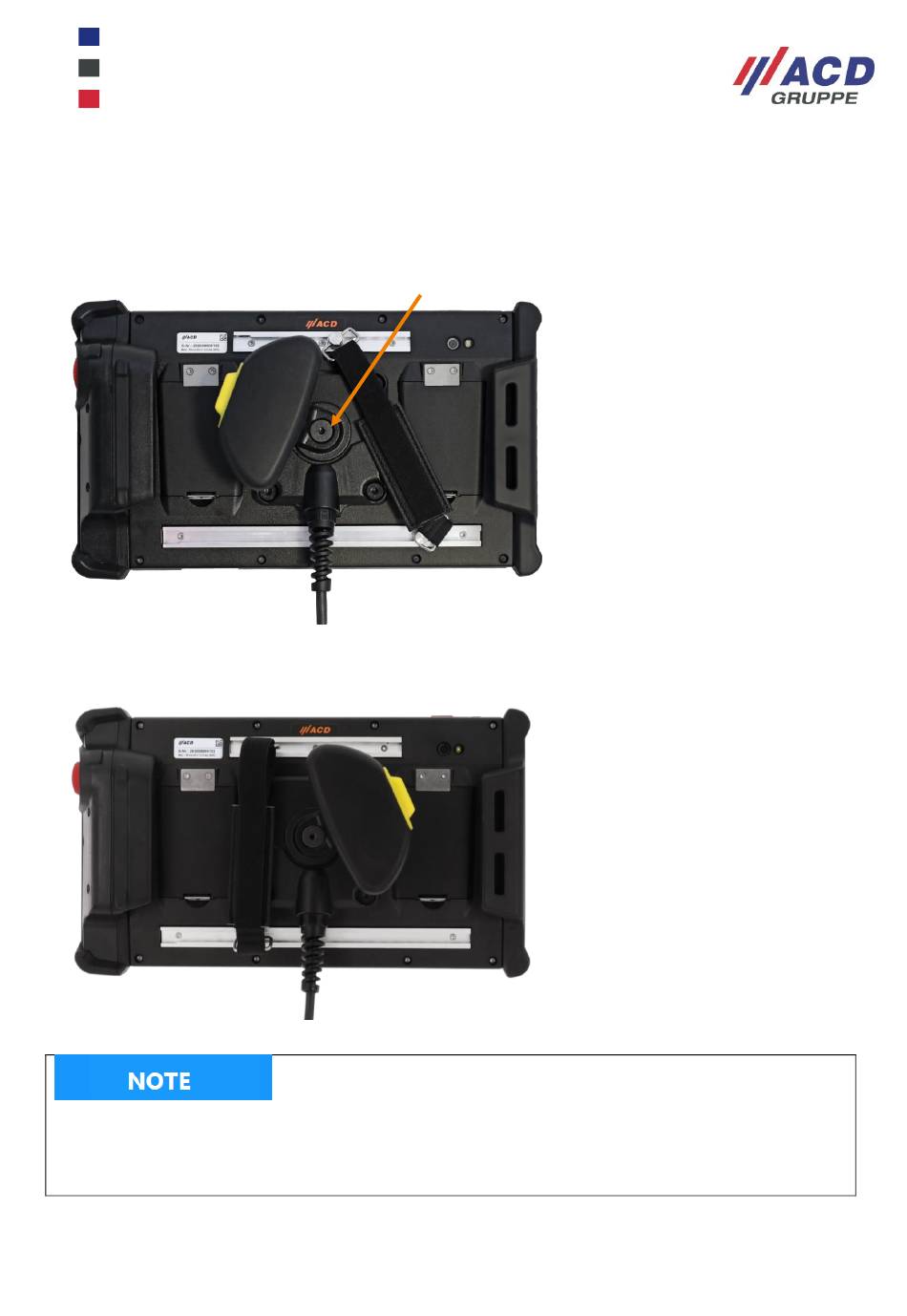

Figure 42: M2Smart
HMI10 Wired rear adjustment handle 1
2. Turn the handle to the left-handed position and tighten the screw again. The tightening torque is 0.5 Nm.
®
Figure 43: M2Smart
HMI10 Wired rear adjustment handle 2
Turn the handle only within the designated area for left/right-handed operation to avoid damaging the cable
to the enabling switch. Only loosen the screw, do not remove it completely. After the screw has been
opened and closed 10 times, the inserted seal must be replaced to ensure the specified protection class.
M2SmartSE HMI10 Wired_Bedienungs-Projektierungshandbuch_
Operating and Project Engineering Manual_V1.01_de_en
69 / 76
