34.1.3 Cable holder
Cable holder for the wall bracket of the M2Smart
holder is attached using the four M6 screws of the wall bracket. The screws are not included in the scope of
delivery.

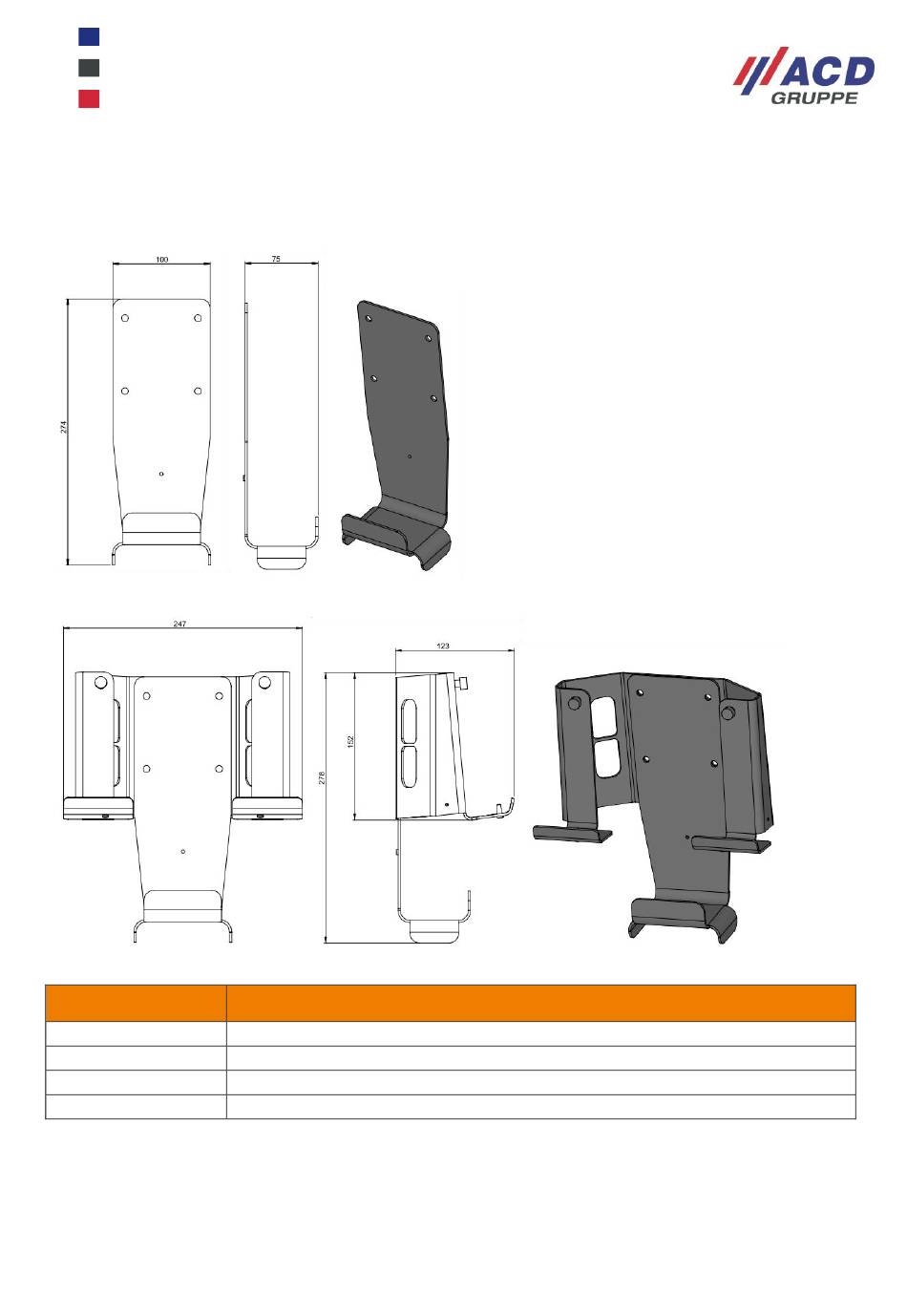

Figure 47: Cable holder
Figure 48: Wall bracket and Cable holder
Material
Mounting
Dimensions
Weight
Table 38: Technical data for cable holder
M2SmartSE HMI10 Wired_Bedienungs-Projektierungshandbuch_
Operating and Project Engineering Manual_V1.01_de_en
Technical Data
Sheet steel, painted deep black (RAL 9005)
The cable holder is attached using the four M6 screws of the wall bracket
Approx. 274 x 100 x 75 mm (L x W x H)
Approx. 670 g
®
