26.3 RFID/NFC Reader (as option)
The device optionally has a PN7150 RFID/NFC reader with integrated firmware that supports the following
operating modes and protocols.
NFC IP modes:
Reader NFC forum tag types 1 to 5, P2P active initiator and target, P2P passive initiator and target,
reader/writer mode, peer to peer mode and card emulation.
Reader (PCD-VCD):
ISO/IEC 14443A/B, ISO/IEC15693, MIFARE Classic/DESFire, Sony FeliCa.
CARD (PICC):
T4T-ISO/IEC14443A, ISO/IEC14443B, NFC FORUM T3T.
The reading area of the reader is located in the upper part of the device and is marked by an icon. The range
depends on the position, size and technology of the transponder and ranges from a few millimeters to a few
centimeters.

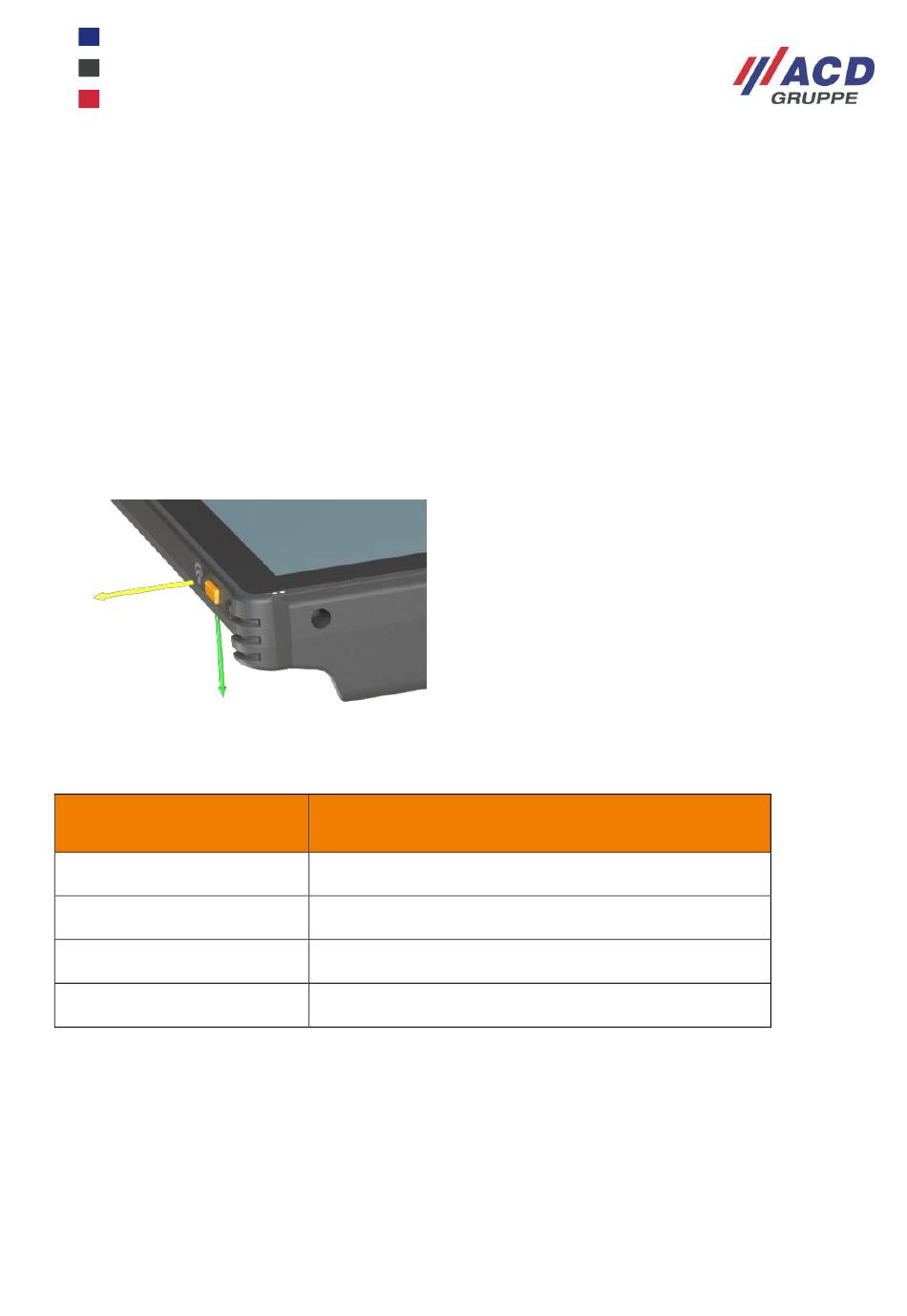

Figure 39: Reading range of the reader from the M2Smart
The following table contains transponders in check card format and their measured reading range:
Transponder
ISO/IEC15693 ICODE
MIFARE Ultralight
MIFARE DESFIRE
NFC Sample Card
Table 34: Transponder reading range
M2SmartSE HMI10 Wired_Bedienungs-Projektierungshandbuch_
Operating and Project Engineering Manual_V1.01_de_en
®
HMI10 Wired
Range of the RFID/NFC reader
®
for the M2Smart HMI10 Wired
(Y [yellow] / X [green])
Approx. 90/43 mm
Approx. 58/25 mm
Approx. 45/20 mm
Approx. 78/45 mm
