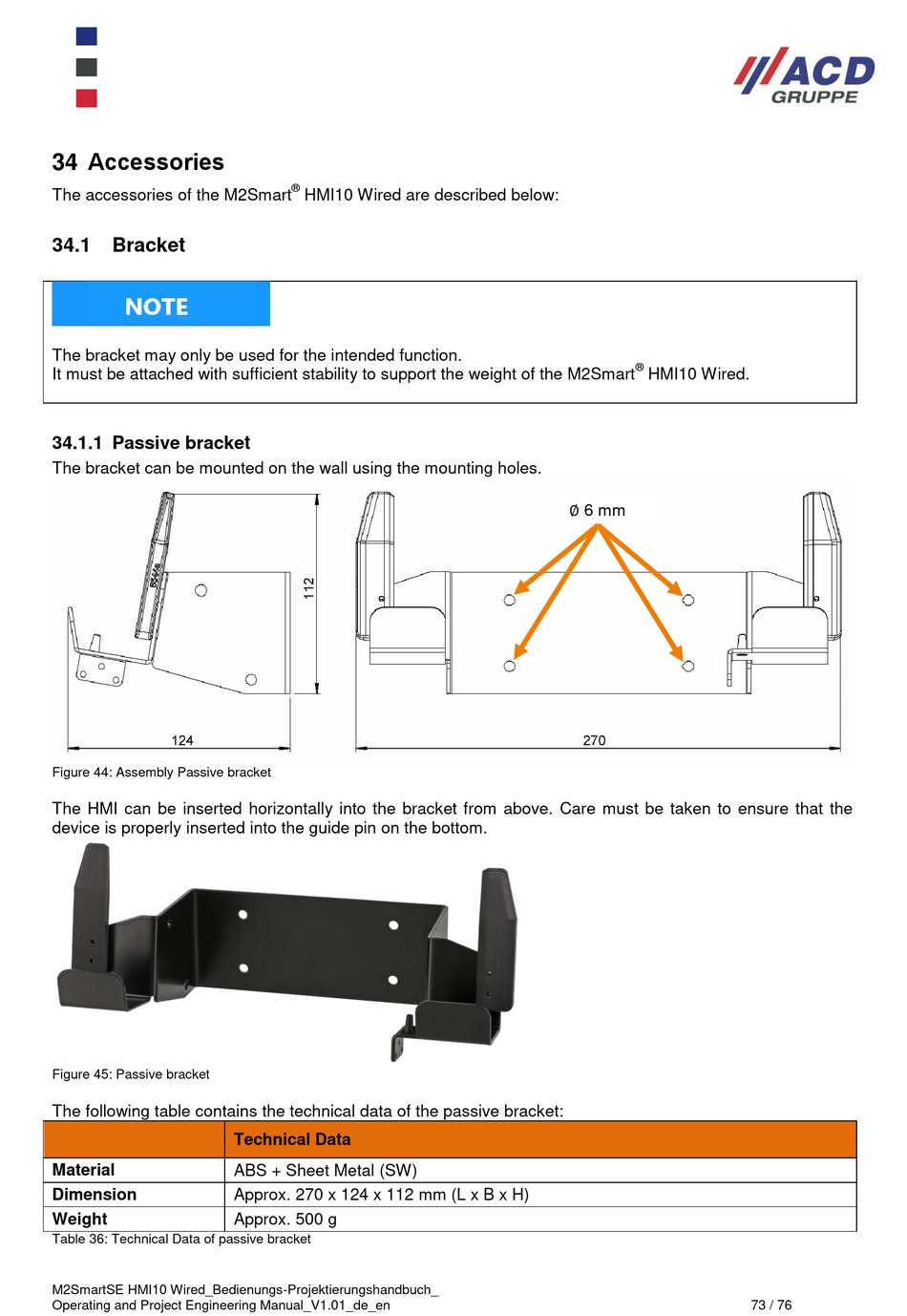

34 Accessories
The accessories of the M2Smart
34.1
Bracket
The bracket may only be used for the intended function.
It must be attached with sufficient stability to support the weight of the M2Smart
34.1.1 Passive bracket
The bracket can be mounted on the wall using the mounting holes.
Figure 44: Assembly Passive bracket
The HMI can be inserted horizontally into the bracket from above. Care must be taken to ensure that the
device is properly inserted into the guide pin on the bottom.
Figure 45: Passive bracket
The following table contains the technical data of the passive bracket:
Material
Dimension
Weight
Table 36: Technical Data of passive bracket
M2SmartSE HMI10 Wired_Bedienungs-Projektierungshandbuch_
Operating and Project Engineering Manual_V1.01_de_en
®
HMI10 Wired are described below:
Technical Data
ABS + Sheet Metal (SW)
Approx. 270 x 124 x 112 mm (L x B x H)
Approx. 500 g
®
HMI10 Wired.
∅ 6 mm
73 / 76
