Setup

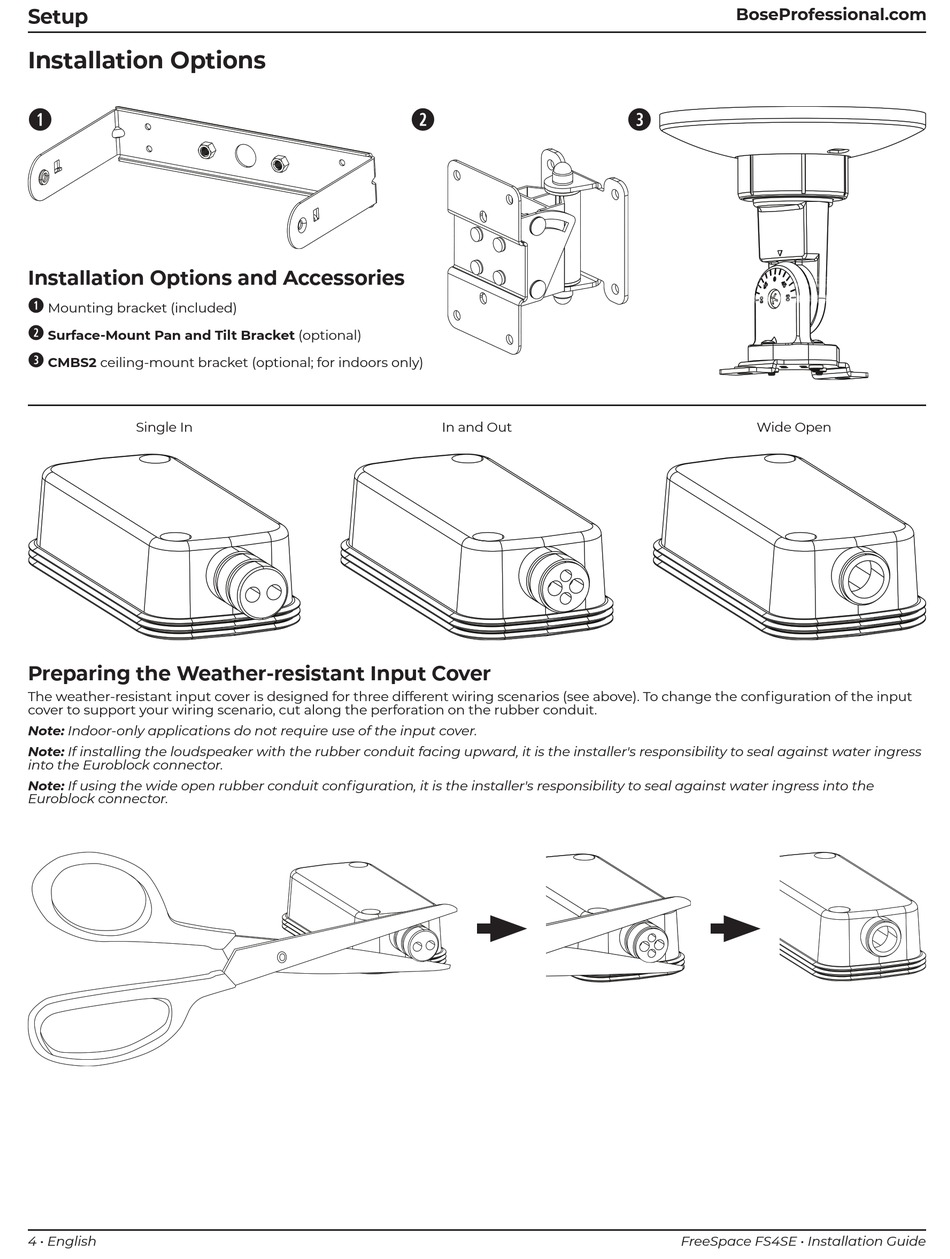

Installation Options

q
Installation Options and Accessories
q
Mounting bracket (included)
w
Surface-Mount Pan and Tilt Bracket (optional)
 CMBS2 ceiling-mount bracket (optional; for indoors only)
Single In
Preparing the Weather-resistant Input Cover
The weather-resistant input cover is designed for three different wiring scenarios (see above). To change the configuration of the input
cover to support your wiring scenario, cut along the perforation on the rubber conduit.
Note: Indoor-only applications do not require use of the input cover.
Note: If installing the loudspeaker with the rubber conduit facing upward, it is the installer's responsibility to seal against water ingress
into the Euroblock connector.
Note: If using the wide open rubber conduit configuration, it is the installer's responsibility to seal against water ingress into the
Euroblock connector.
4 • English
w
In and Out
BoseProfessional.com

Wide Open
FreeSpace FS4SE • Installation Guide
