Operation
Example B
Measuring range: 25 mm,
Start position X1 ... end position X2,
Output signal: 2 ... 10 VDC (4 ... 20 mA)
S1 and S2 of J3 are „ON", see
induSENSOR MSC 7210
All manuals and user guides at all-guides.com
Set the frequency with J4, see Chap. 5.2.1.
Set the phase with J2, see Chap. 5.2.1.
Set the supply voltage for the sensor with J1, see
Chap. 5.2.2.
Fig. 12
Adjust the output to 2 VDC respectively 4 mA with
R1, see Fig. 11.
Put S1 and S2 of J3 „OFF".
Move plunger to start position X1.
Adjust output to 2 VDC respectively 4 mA with R2.
Move plunger to end position X2.
Adjust gain with R3 until the output reaches
10 VDC respectively 20 mA.

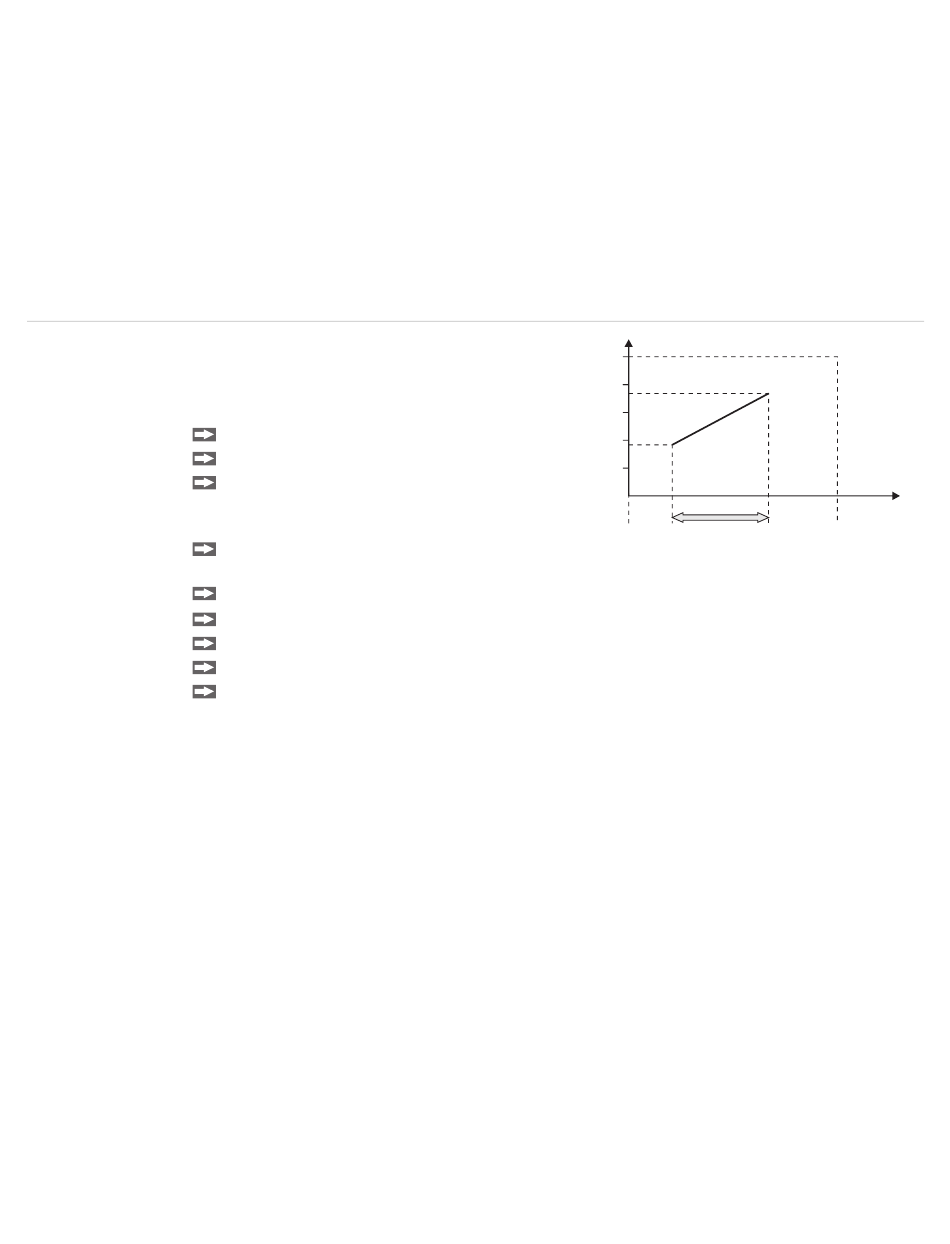

10 V
2 V
X1
0 mm
Measuring range
i
The plunger respectively the sensor are fixed
to the target.
X2
25 mm
Page 50
