Functional Principle, Technical Data

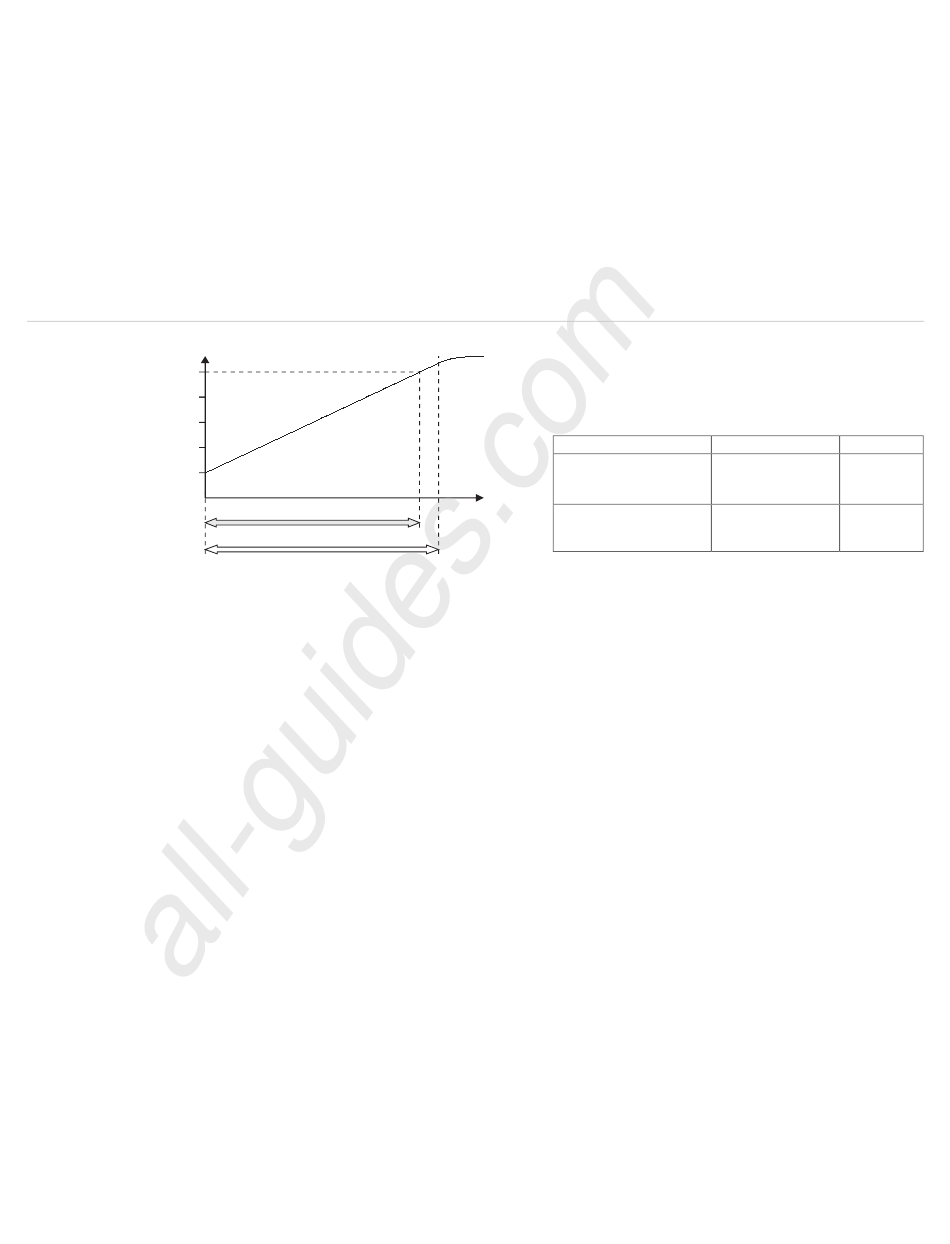

Fig. 2 Output signal of a sensor operated outside
the measuring range
2.2
A complete measuring channel consists of
- Sensor
- Controller
The displacement sensor contains a free moveable plunger which is not bonded with the sensor. The plunger
ist mounted directly on the target.
The controller contains
- Oscillator, demodulator, and amplifier with low-pass filter;
- Setting options for oscillator frequency, amplitude and the phase compensation, zero point and gain.
Any displacement sensor that work by the LDR principle can be connected to the controller.
induSENSOR MSC 7210
All manuals and user guides at all-guides.com
Signal
Measuring range
Linear range
Structure
- Sensor cable
- Power supply and output cable
The output signal increases if the sensor is operated
outside the measuring range, see
i
Take care to the maximum input load of subse-
quent systems!
LDR-10/LDR-25
Maximum
output voltage
Maximum
output current
Fig. 3 Max. output signals with interposed plunger
Fig.
3.
LDR-50
12 V
20 V
24 mA
40 mA
Page 36
