Operation

5.
5.1
5.2
- Plunger respectively the sensor can be adjusted (continue with step 1 ... 3, 4a ... 8a). It is possible to de-
- Plunger respectively the sensor is fixed to the target (continue with step 1 ... 3, 4b ... 8b).

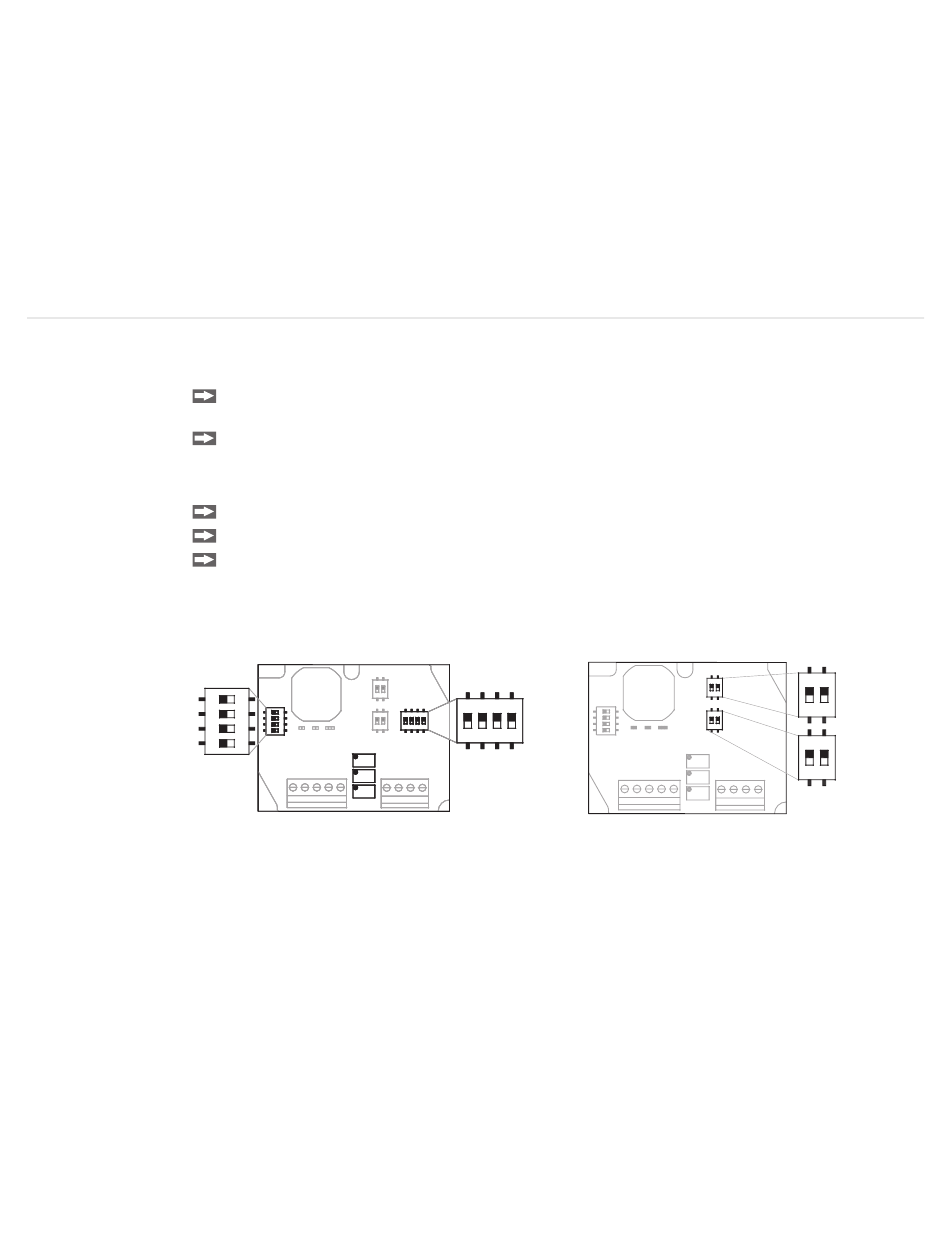

Fig. 11 Controller electronics, DIP switch for frequen-
cy (J4) and phase (J2)
induSENSOR MSC 7210
All manuals and user guides at all-guides.com
Operation

Startup

Check the correct wiring of the sensor connections, signal cables, and voltage connections, see Chap.
4., before the controller is connected to the power supply and before power is turned on.
Perform the basic setting of the controller before the supply voltage is turned
on, see Chap. 5.2.

Settings

Connect the sensor before starting.
Set the controller to the specific type of sensor.
Decide the cases:
ploy the plunger completely out of the sensor to set the electrical zero point.
ON
1
Freq.
2
3
J4
4
R2
R1
R3
Phase
4 3 2 1
ON
J2
J1
J3
Fig. 12 Controller electronics, DIP switch for exci-
tation voltage (J1) and test (J3)
2 1
ON
1
2
ON
