Power Supply And Signal; Sensor - MICRO-EPSILON induSENSOR MSC 7210 Betriebsanleitung

Installation and Assembly
4.4.1

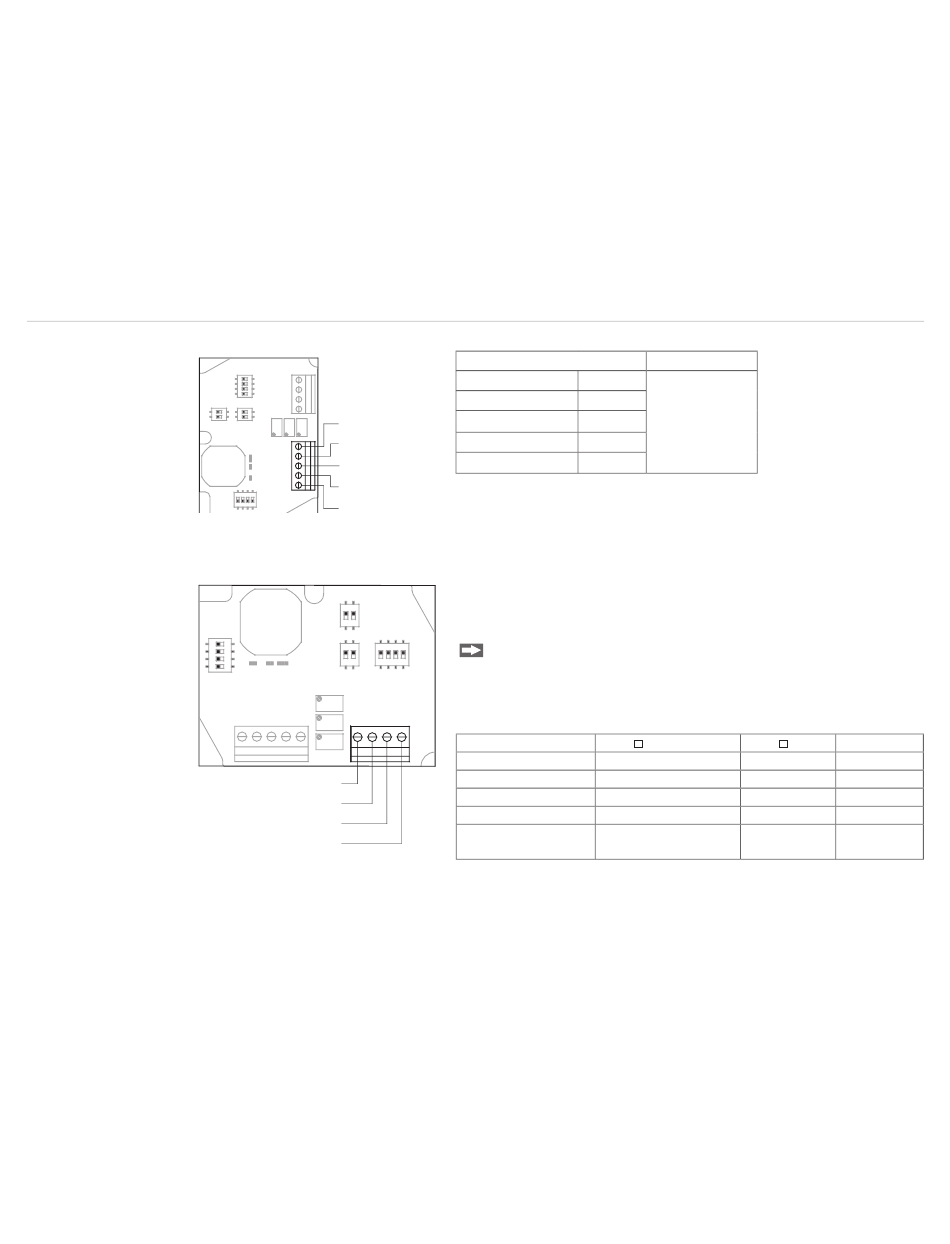

Fig. 9 Pin assignment for power and signal, terminal block X1
4.4.2
Fig. 10 Pin assignment for the sen-
sor, terminal block X2
1)
induSENSOR MSC 7210
All manuals and user guides at all-guides.com

Power Supply and Signal

Screen
Signal
Signal ground
Ground
X1
Power supply

Sensor

Screen
Prim +
Prim -
Center
The colors listed apply to an optional sensor cable.
Screen
Signal yellow
Signal ground green
Ground brown
Power supply white
If the plunger is moved into the sensor,
this results in an increase of the output
signal.
If you need the inverse action (the
signal decreases if the plunger is pulled
out) change the connections prim+ and
prim-.
X2
Terminal X2
Center
Prim -
Prim +
Screen
The maximum cable length of a user made cable is 10 m (32 ft) to
keep the EMC regulations.
i
PC710-6/4
Optional power
supply and
output cable,
6 m (20 ') long
LDR- -CA LDR- -SA
green 4
white 1
brown 3
Screen Housing
Use screened
cables only. Con-
nect the screens
of the signal and
supply cables with
supply ground, if
you operate more
than one con-
troller at the same
power supply.
C7210-x
1)
black
brown
blue
---
Page 44
