Installation and Assembly
4.2
A peripheral clamping on the housing (displacement sensors) is required to mount the sensor. This offers the
highest reliability because the sensor is clamped over a broad area by its cylindrical housing. At installation
locations where there are no forces and vibrations the sensor can also be mounted by the housing using
radial point clamping with set screws. Plastic set screws must be used so that the sensor housing is not
damaged or deformed.
Plungers of displacement sensors are screwed to the measurement object using the thread. The screw joint
must either be secured with a screw locking compound (for example Loctite ...) or counter-screwed with the
lock-nut supplied.
The connection of the sensors to the controller is provided by wire terminals, see Chap.
ment). Ready-made connecting cables are available for sensors with plug connectors, see Chap.

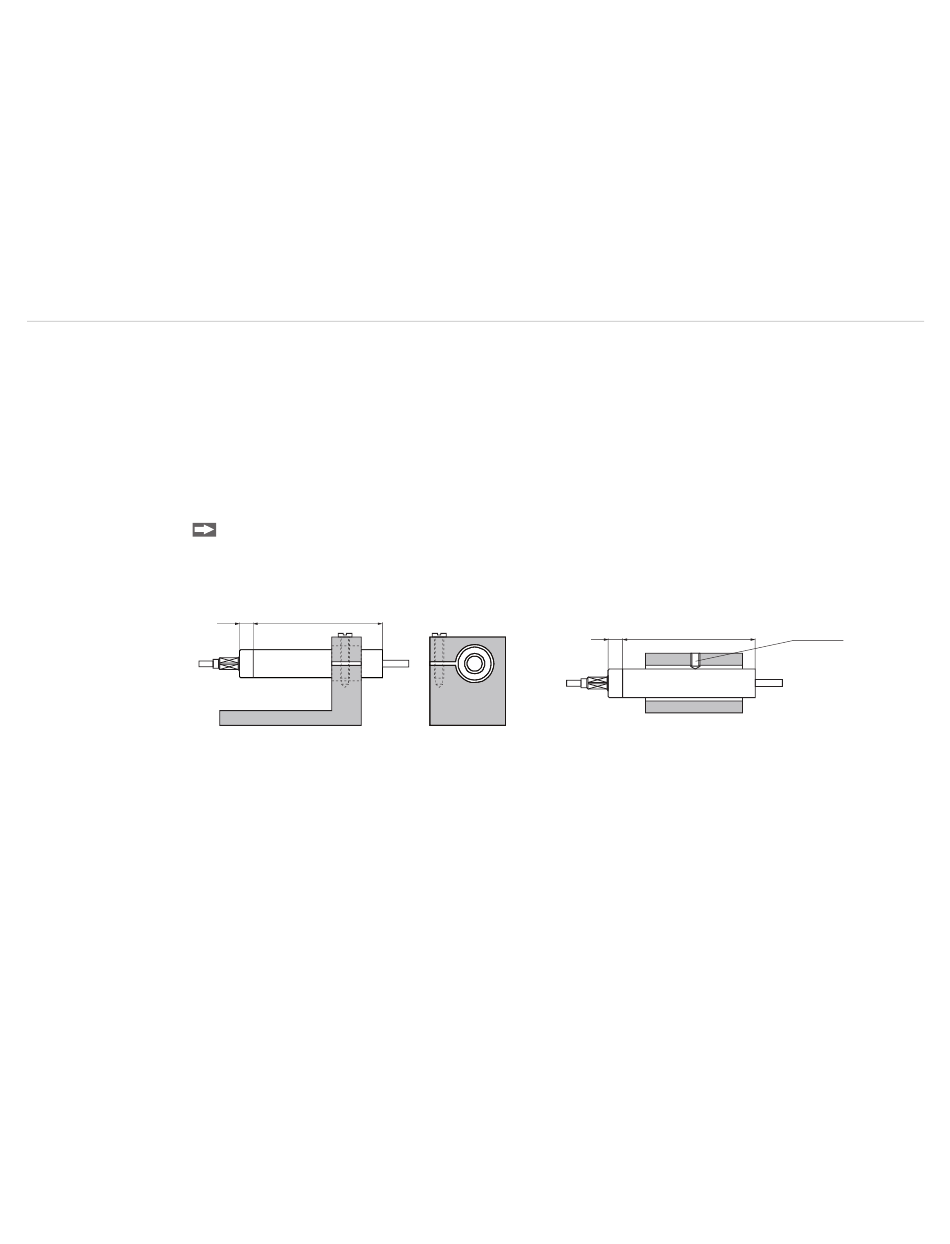

Fig. 4 Mounting of a sensor with peripheral clam-
ping
10 mm for LDR-x-SA
1)
induSENSOR MSC 7210
All manuals and user guides at all-guides.com

Sensor Mounting

When mounting, ensure that the plunger remains freely movable in the sensor and that tilting is avoided.
4 Mounting area
1)
4 Mounting area
1)
Fig. 5 Mounting of a sensor with radial point clamping
4.4 ( for pin assign-
10.
Plastic
grub screw
