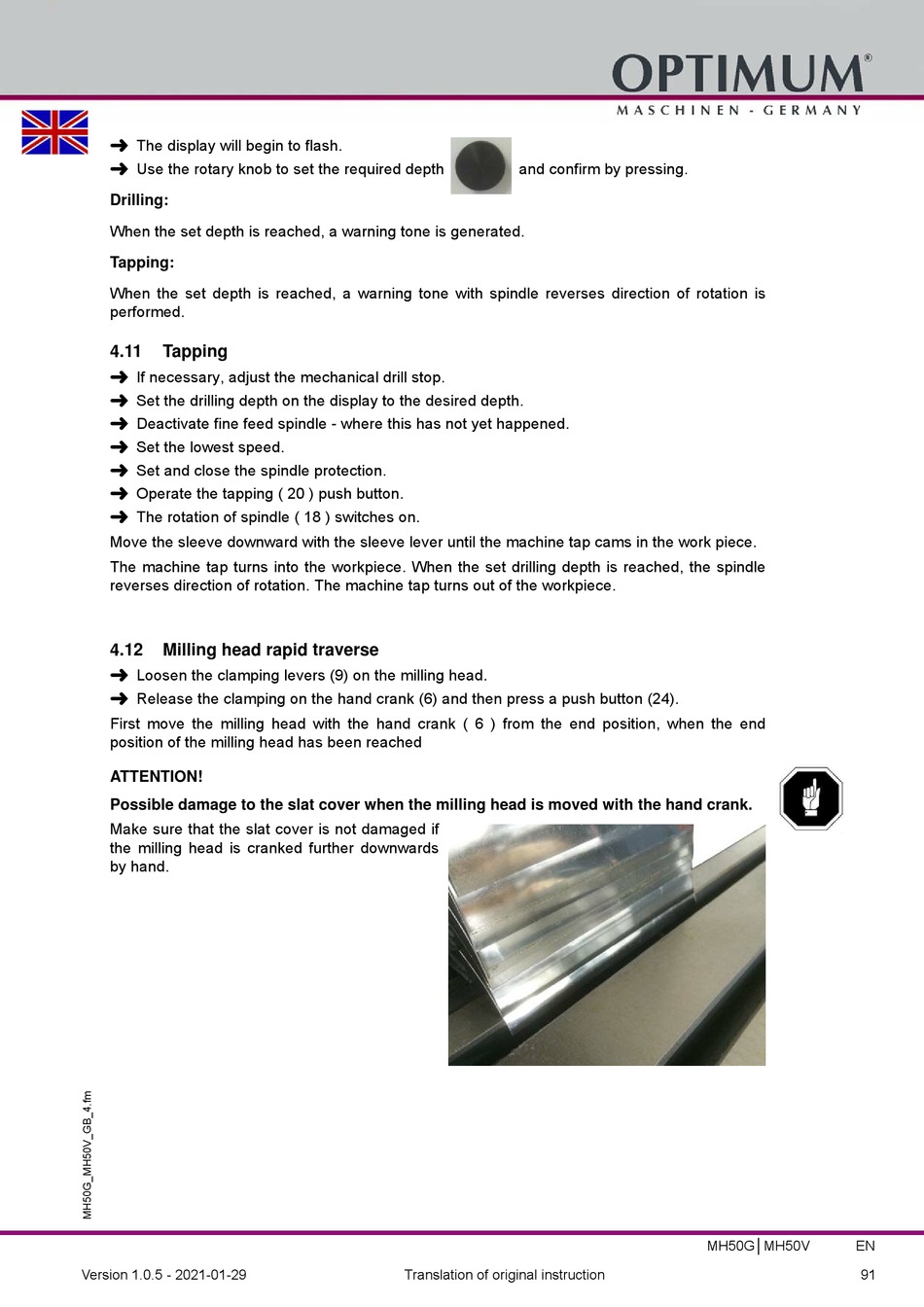

The display will begin to flash.
Use the rotary knob to set the required depth
Drilling:
When the set depth is reached, a warning tone is generated.
Tapping:
When the set depth is reached, a warning tone with spindle reverses direction of rotation is
performed.
4.11
Tapping
If necessary, adjust the mechanical drill stop.
Set the drilling depth on the display to the desired depth.
Deactivate fine feed spindle - where this has not yet happened.
Set the lowest speed.
Set and close the spindle protection.
Operate the tapping ( 20 ) push button.
The rotation of spindle ( 18 ) switches on.
Move the sleeve downward with the sleeve lever until the machine tap cams in the work piece.
The machine tap turns into the workpiece. When the set drilling depth is reached, the spindle
reverses direction of rotation. The machine tap turns out of the workpiece.
4.12
Milling head rapid traverse
Loosen the clamping levers (9) on the milling head.
Release the clamping on the hand crank (6) and then press a push button (24).
First move the milling head with the hand crank ( 6 ) from the end position, when the end
position of the milling head has been reached
ATTENTION!
Possible damage to the slat cover when the milling head is moved with the hand crank.
Make sure that the slat cover is not damaged if
the milling head is cranked further downwards
by hand.
Version 1.0.5 - 2021-01-29
and confirm by pressing.
Translation of original instruction
MH50G│MH50V
EN
91
