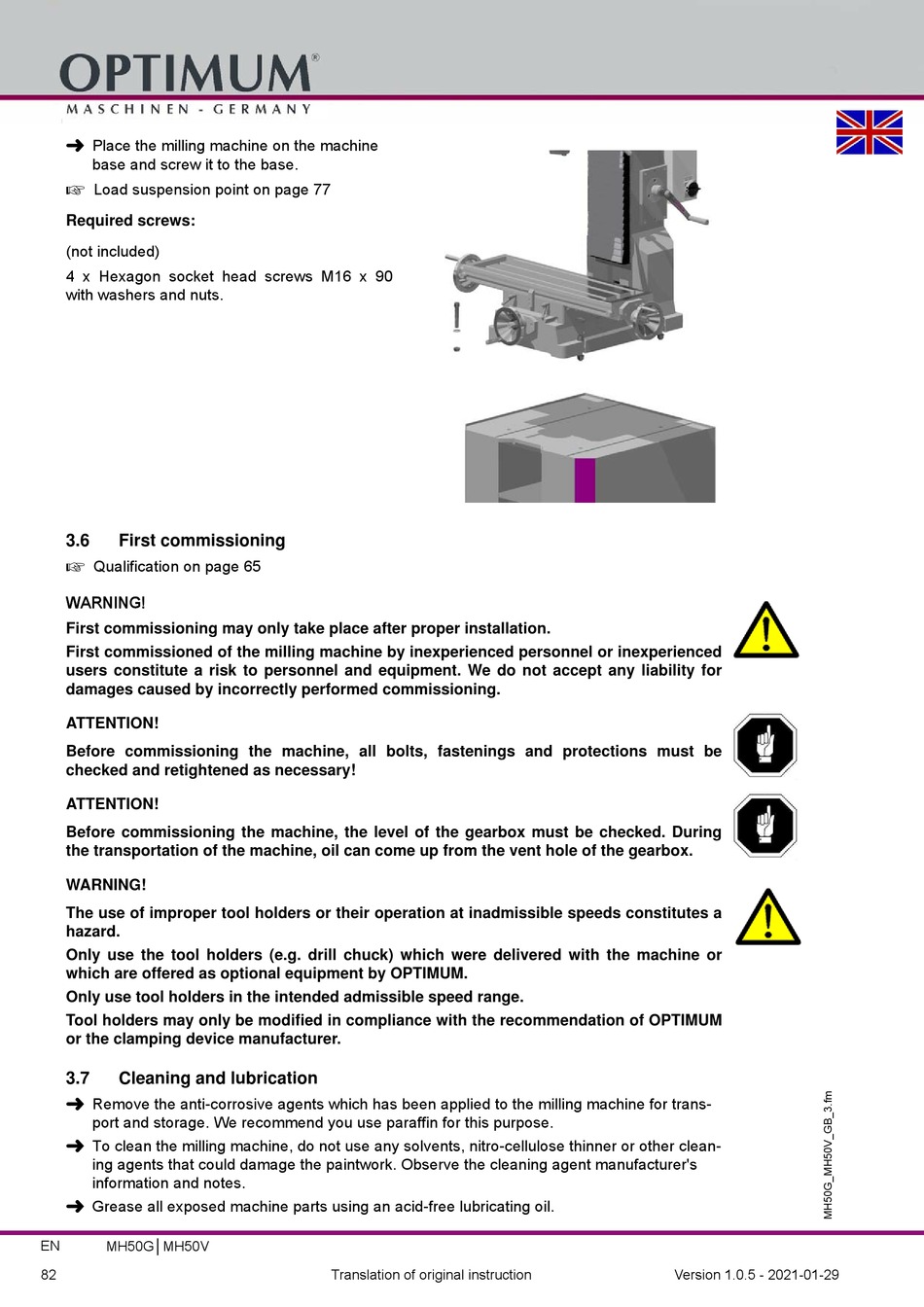

Place the milling machine on the machine
base and screw it to the base.
Load suspension point on page 77
Required screws:
(not included)
4 x Hexagon socket head screws M16 x 90
with washers and nuts.
3.6
First commissioning
Qualification on page 65
WARNING!
First commissioning may only take place after proper installation.
First commissioned of the milling machine by inexperienced personnel or inexperienced
users constitute a risk to personnel and equipment. We do not accept any liability for
damages caused by incorrectly performed commissioning.
ATTENTION!
Before commissioning the machine, all bolts, fastenings and protections must be
checked and retightened as necessary!
ATTENTION!
Before commissioning the machine, the level of the gearbox must be checked. During
the transportation of the machine, oil can come up from the vent hole of the gearbox.
WARNING!
The use of improper tool holders or their operation at inadmissible speeds constitutes a
hazard.
Only use the tool holders (e.g. drill chuck) which were delivered with the machine or
which are offered as optional equipment by OPTIMUM.
Only use tool holders in the intended admissible speed range.
Tool holders may only be modified in compliance with the recommendation of OPTIMUM
or the clamping device manufacturer.
3.7
Cleaning and lubrication
Remove the anti-corrosive agents which has been applied to the milling machine for trans-
port and storage. We recommend you use paraffin for this purpose.
To clean the milling machine, do not use any solvents, nitro-cellulose thinner or other clean-
ing agents that could damage the paintwork. Observe the cleaning agent manufacturer's
information and notes.
Grease all exposed machine parts using an acid-free lubricating oil.
EN
MH50G│MH50V
82
Translation of original instruction
Version 1.0.5 - 2021-01-29
