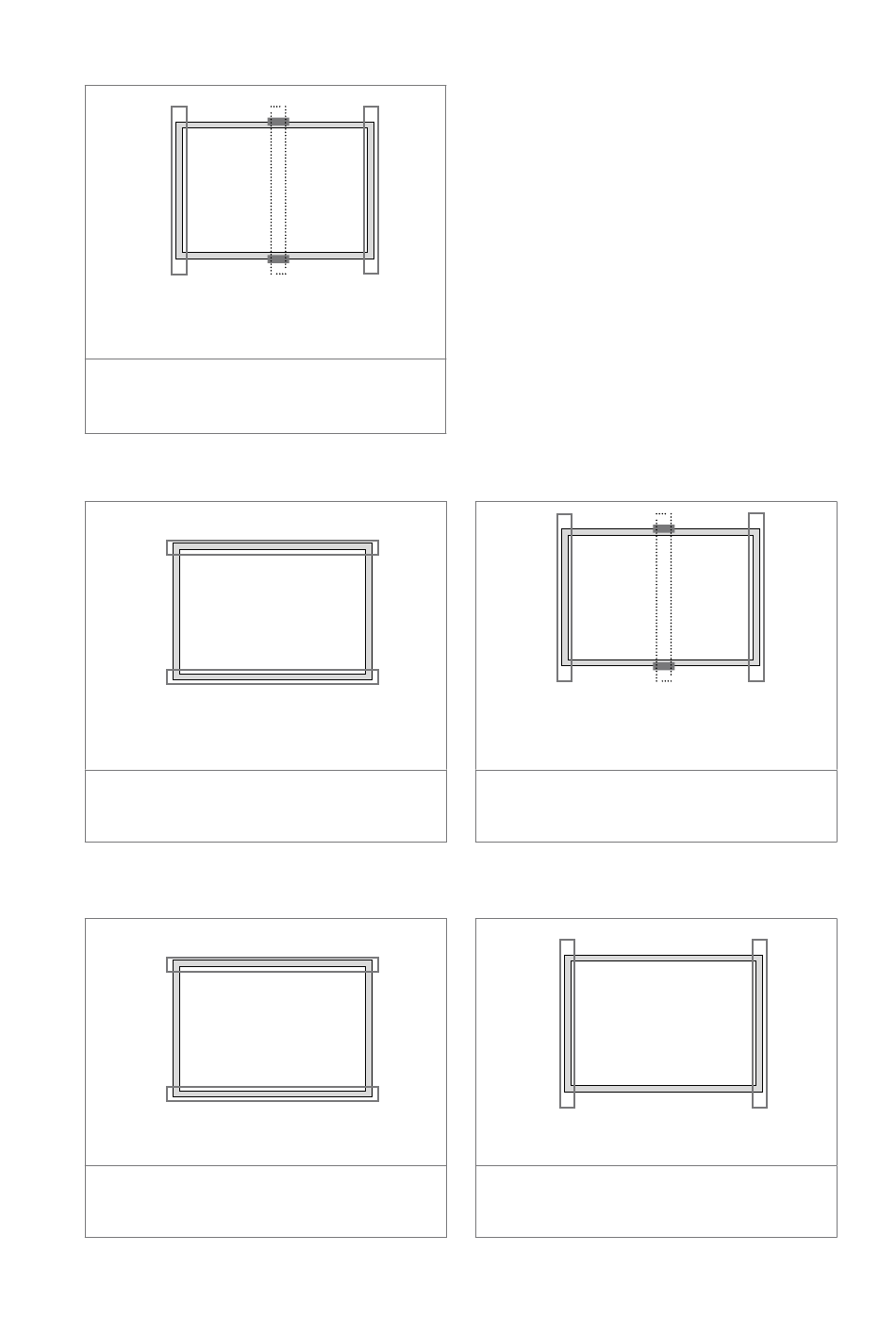

Use two insertion profiles running perpendicularly to
the long side frame. An additional support bar should
be placed below the module. Use two clamps on the
support bar.
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
CS1k-MS, CS1h-MS
Use two insertion profiles running parallel to the long
side frame.
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 2400 Pa
CS1v-MS, CS1vL-MS
Use two insertion profiles running parallel to the long
side frame.
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 4000 Pa
Use two insertion profiles running perpendicularly to
the long side frame. An additional support bar should
be placed below the module. Use two clamps on the
support bar.
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
Use two insertion profiles running perpendicularly to
the long side frame.
Maximum Load:
Uplift load ≤ 2000 Pa
Downforce load ≤ 2000 Pa
