Tritec TRI-STAND Montageanleitung Seite 142

12 |
A1
A1

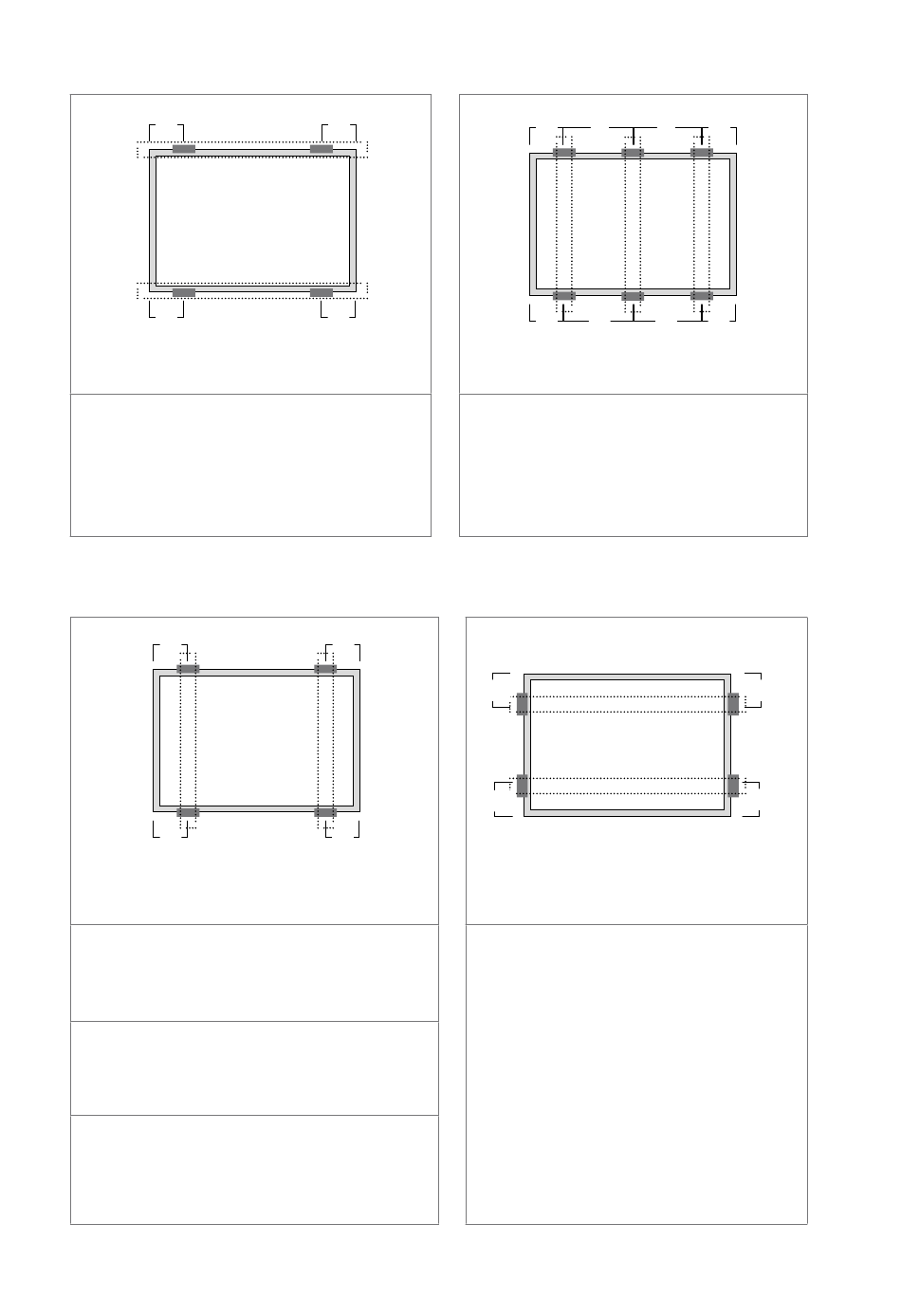

Use four clamps on the long side. Mounting rails
run parallel to the long side frame.
A1 range = (270 – 330) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 4000 Pa
CS6v-p, CS6v-M and CS6v-MS
A1
A1
Use four clamps on the long side. Mounting rails
run perpendicularly to the long side frame.
A1 range = (0 – 239) mm
Maximum Load:
Uplift load ≤ 2000 Pa
Downforce load ≤ 2000 Pa
A1 range = (240 – 550) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 2400 Pa
A1 range = (240 – 330) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
EN-Rev IM/GN-AM-EN/A13 Copyright © November, 2018. Canadian Solar Inc.
A1
A1
A1
A2
A2
A1
Use four clamps on the short side. Mounting rails
run parallel to the long side frame.
A2 range = (170 – 210) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 2400 Pa
A3 A4 A4
A3 A4 A4
Use six clamps on the long side. Mounting rails
run perpendicularly to the long side frame.
A3 range = (80 –380) mm
A5 range = (80 –380) mm
Maximum Load:
Uplift load ≤ 4000 Pa
Downforce load ≤ 6000 Pa
A5
A5
A2
A2
