Tritec TRI-STAND Montageanleitung Seite 138

8 |
CS3w-p
A1
A1

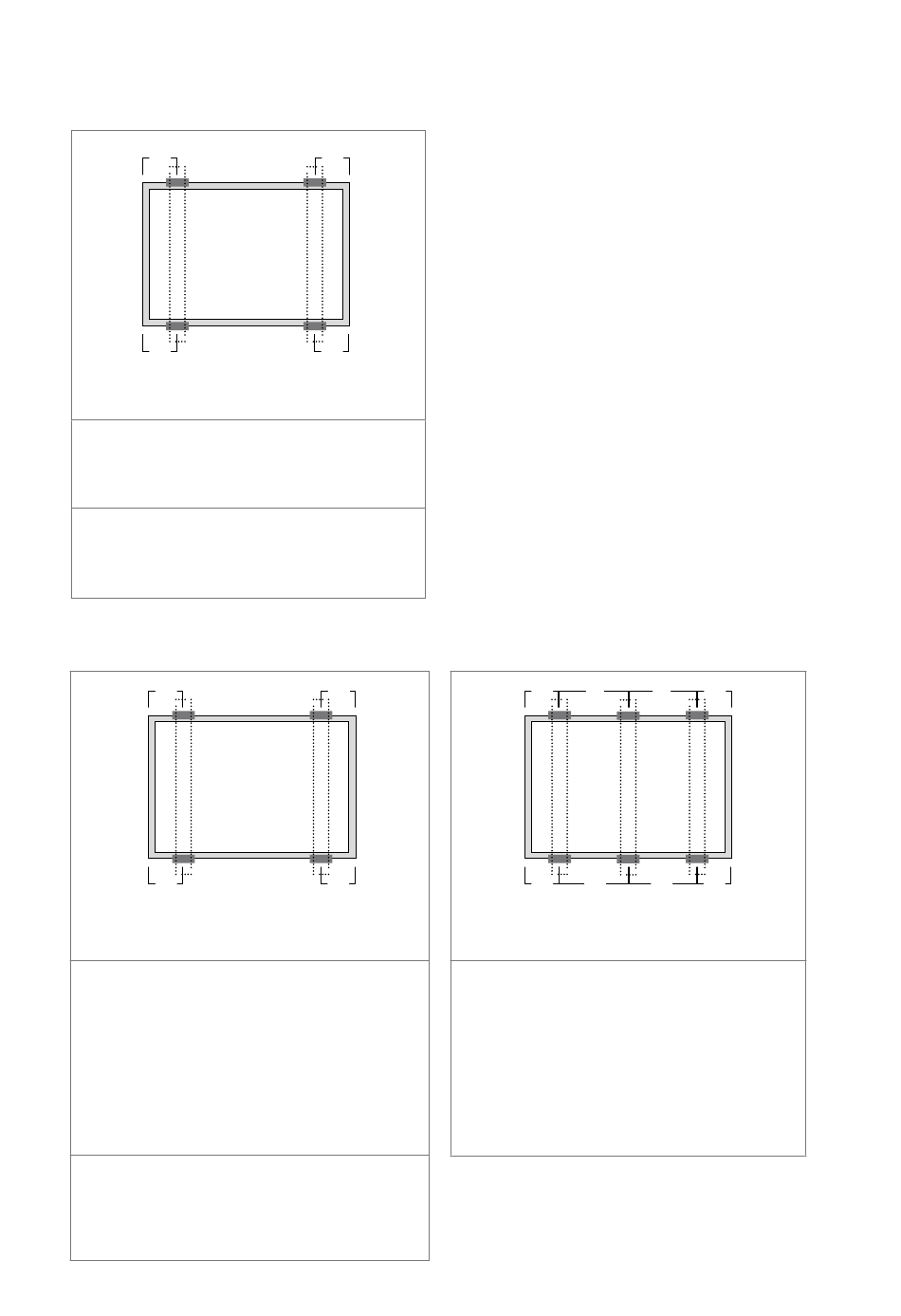

Use four clamps on the long side. Mounting rails
run perpendicularly to the long side frame.
A1 range = (340 – 550) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 2400 Pa
A1 range = (410 – 490) mm
Maximum Load:
Uplift load ≤ 3600 Pa
Downforce load ≤ 5400 Pa
CS3L-p
A1
A1
Use four clamps on the long side. Mounting rails
run perpendicularly to the long side frame.
A1 range = (240 – 330) mm
Maximum Load:
Uplift load ≤ 3600 Pa
Downforce load ≤ 5400 Pa
Notice: when the modules need to be installed in
heavy snow area, please inform Canadian Solar
Inc.'s technical support department in writing for
advices. Failure to follow this notice may violate the
warranty.
A1 range = (331 – 550) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 2400 Pa
EN-Rev IM/GN-AM-EN/A13 Copyright © November, 2018. Canadian Solar Inc.
A1
A1
A1
A1
Use six clamps on the long side.
Mounting rails run perpendicularly to the long
side frame.
A3 range = (140 – 440) mm,
A5 range = (140 – 440) mm
Maximum Load:
Uplift load ≤ 3600 Pa
Downforce load ≤ 5400 Pa
Notice: this method is recommended for better
reliability.
A3 A4 A4
A3 A4 A4
A5
A5
