Tritec TRI-STAND Montageanleitung Seite 143

A2
A2

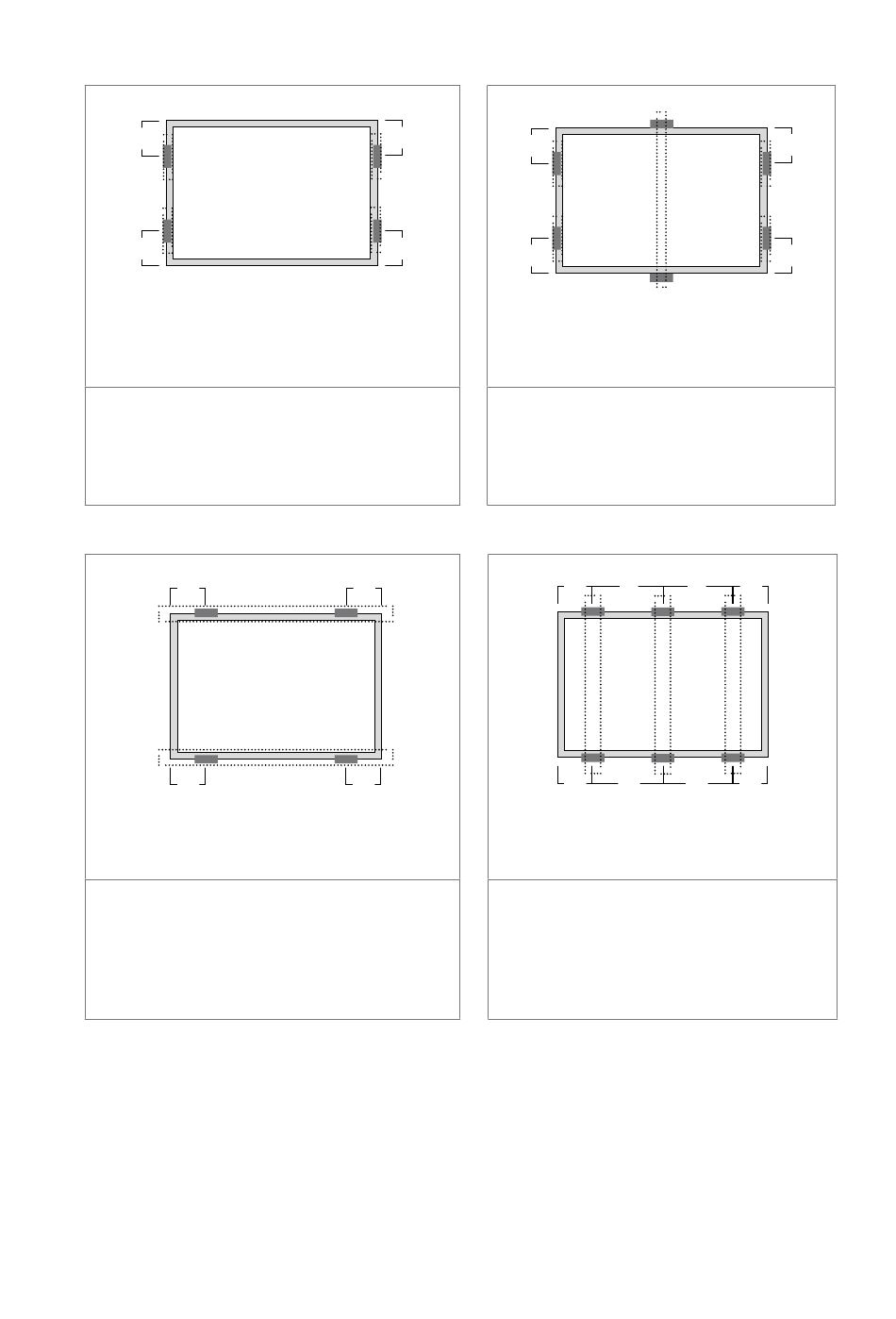

Use four clamps on the short side.
A2 range = (0 – 210) mm
Maximum Load:
Uplift load ≤ 2000 Pa
Downforce load ≤ 2000 Pa
A1
A1
Use four clamps on the long side. Mounting rails
run parallel to the long side frame.
A1 range = (240 – 330) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 4000 Pa
A2
A2
A2
A2
Use four clamps on the short side and two clamps
on the long side. An additional support bar
should be placed below the center of the module.
A2 range = (170 – 210) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
A1
A1
Use six clamps on the long side. Mounting rails
run perpendicularly to the long side frame.
A3 range = (80 –380) mm
A5 range = (80 –380) mm
Maximum Load:
Uplift load ≤ 4000 Pa
Downforce load ≤ 6000 Pa
A3 A4 A4
A3 A4 A4
www.canadiansolar.com
| 13
A2
A2
A5
A5
