Tritec TRI-STAND Montageanleitung Seite 135

A1
A1

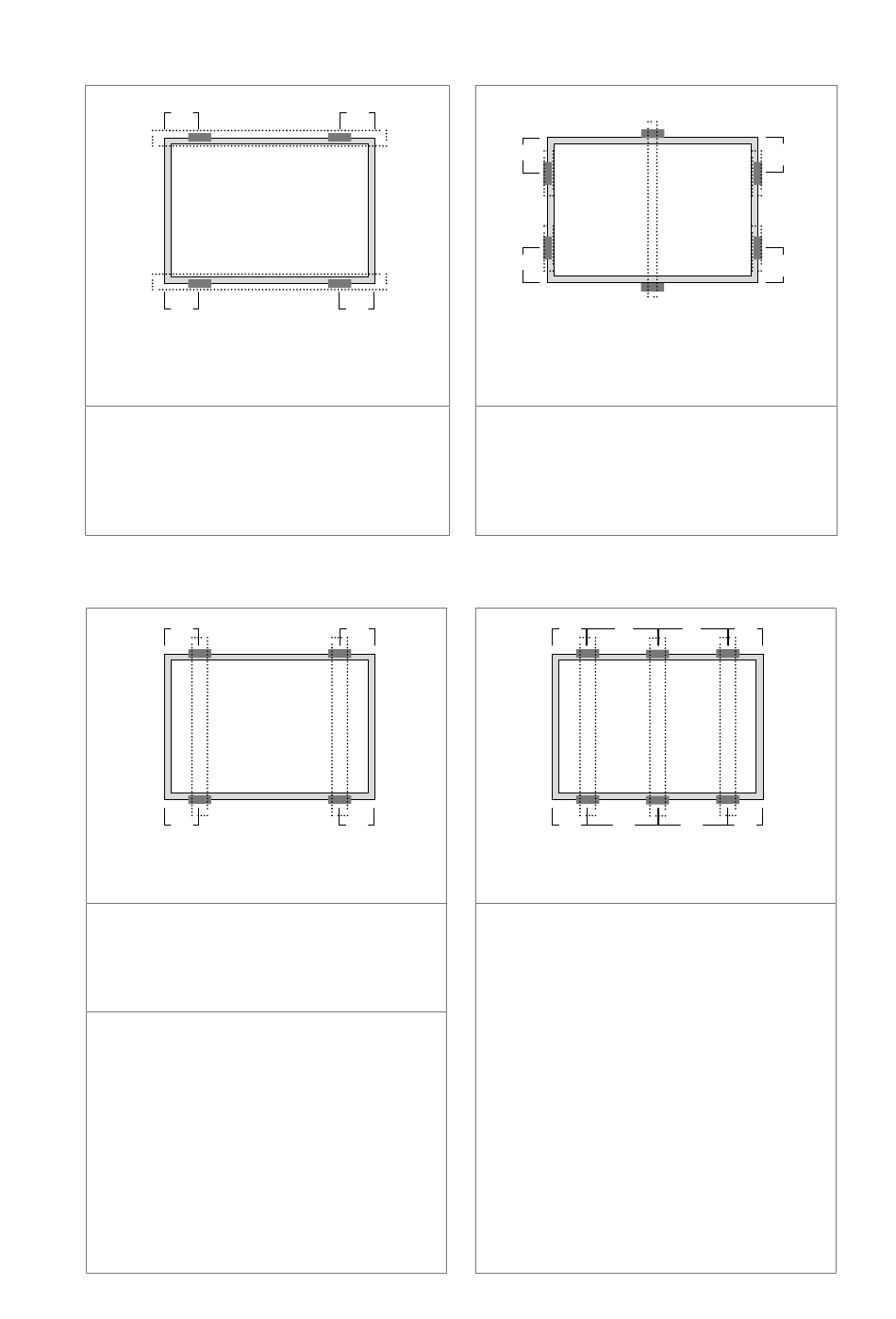

Use four clamps on the long side. Mounting rails
run parallel to the long side frame.
A1 range = (410 – 490) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
CS1U-MS
A1
A1
Use four clamps on the long side. Mounting rails
run perpendicularly to the long side frame.
A1 range = (340 – 550) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 2400 Pa
A1 range = (410 – 490) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
Notice: when the modules need to be installed in
heavy snow area, please inform Canadian Solar
Inc.'s technical support department in writing for
advices. Failure to follow this notice may violate
the warranty.
A1
A2
A2
A1
Use four clamps on the short side and two clamps
on the long side. An additional support bar should
be placed below the center of the module.
A2 range = (200 – 250) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
A1
A1
Use six clamps on the long side.
Mounting rails run parallel to the long side frame.
A3 range = (250– 350) mm
A5 range = (250– 350) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
Notice: This method is recommended for better
reliability.
A3 A4 A4
A3 A4 A4
www.canadiansolar.com
| 5
A2
A2
A5
A5
