Tritec TRI-STAND Montageanleitung Seite 145

A1
A1

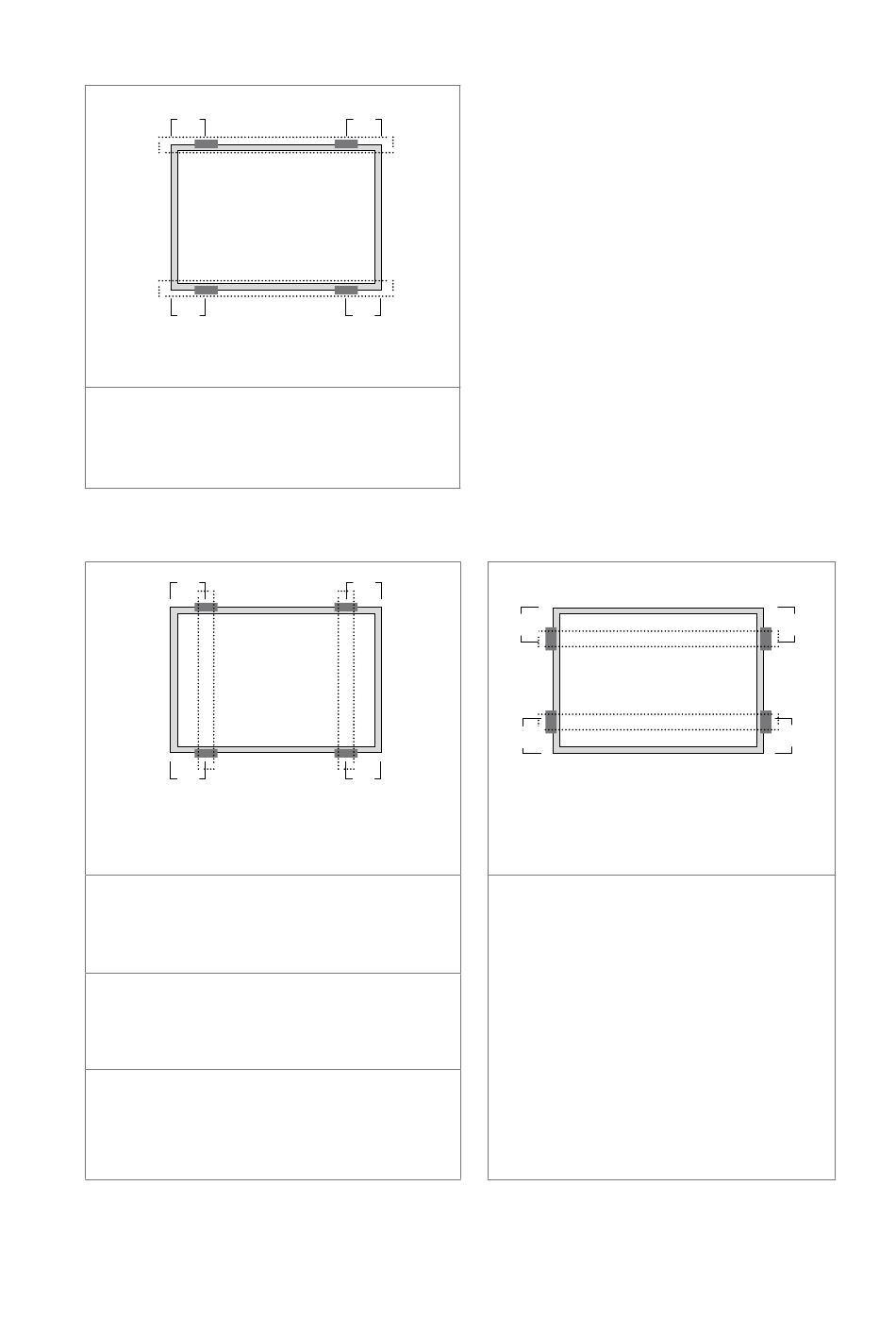

Use four clamps on the long side. Mounting rails
run parallel to the long side frame.
A1 range = (240 – 330) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 4000 Pa
CS1vL-MS, CS1A-MS
A1
A1
Use four clamps on the long side. Mounting rails
run perpendicularly to the long side frame.
A1 range = (0 – 219) mm
Maximum Load:
Uplift load ≤ 2000 Pa
Downforce load ≤ 2000 Pa
A1 range = (220– 440) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 2400 Pa
A1 range = (270 – 330) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
A1
A1
A1
A2
A2
A1
Use four clamps on the short side. Mounting rails
run parallel to the long side frame.
A2 range = (200 – 250) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 2400 Pa
| 15
A2
A2
