Tritec TRI-STAND Montageanleitung Seite 139

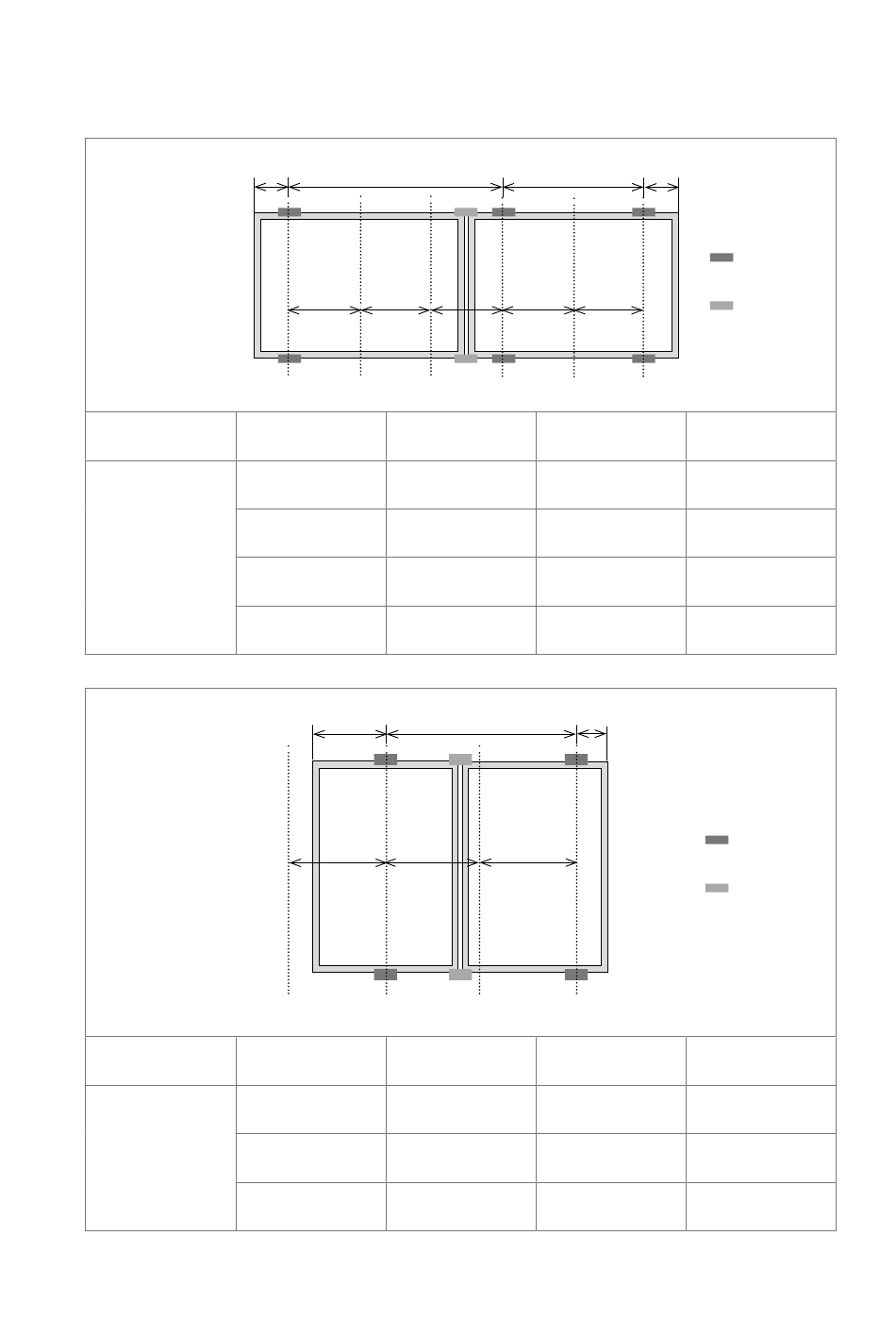

Rail-less clamping for CS3k-p, CS3k-MS, CS6k-p, CS6k-M, CS6k-MS
Cantilever
Mounting Orientation
Landscape
Mounting Orientation
Portrait
Span
Rafter
24 inches
(0.61 m)
Landscape installation, clamping on long side frame.
Max Span Max Cantilever length
72 inches (1.83 m) 24 inches (0.61 m)
64 inches (1.63 m) 21.3 inches (0.54 m)
48 inches (1.22 m) 16 inches (0.41 m)
32 inches (0.81 m) 10.7 inches (0.27 m)
Cantilever
portrait installation, clamping on short side frame.
Max Span Max Cantilever length
48 inches (1.22 m) 16 inches (0.41 m)
32 inches (0.81 m) 10.7 inches (0.27 m)
24 inches (0.61 m) 8 inches (0.2 m)
Span Cantilever
Downforce
2200 Pa
2400 Pa
3400 Pa
5400 Pa
Cantilever
Span
Rafter
24 inches
(0.61 m)
Downforce
1800 Pa
1800 Pa
1800 Pa
| 9
Support
Clamp
Interlock
Uplift
1400 Pa
1400 Pa
1800 Pa
2400 Pa
Support
Clamp
Interlock
Uplift
800 Pa
1200 Pa
1800 Pa
