CS1k-MS, CS1h-MS
A1
A1

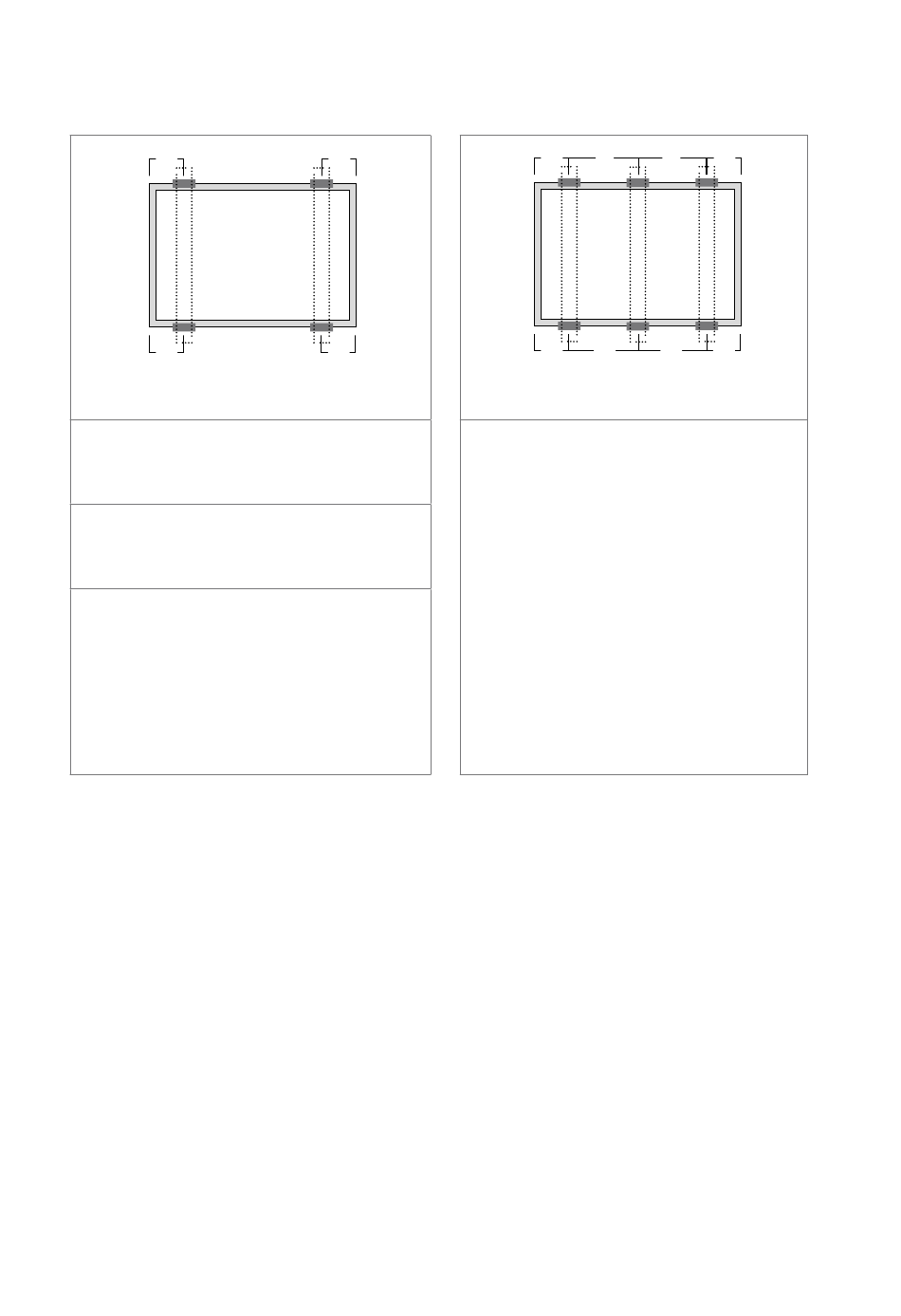

Use four clamps on the long side. Mounting rails
run perpendicularly to the long side frame.
A1 range = (0 – 239) mm
Maximum Load:
Uplift load ≤ 2000 Pa
Downforce load ≤ 2000 Pa
A1 range = (240 – 550) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 2400 Pa
A1 range = (240 – 330) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
Notice: when the modules need to be installed in
heavy snow area, please inform Canadian Solar Inc.'s
technical support department in writing for advices.
Failure to follow this notice may violate the warranty.
EN-Rev IM/GN-AM-EN/A13 Copyright © November, 2018. Canadian Solar Inc.
A1
A1
Use six clamps on the long side. Mounting rails
run perpendicularly to the long side frame.
A3 range = (80 –380) mm
A5 range = (80 –380) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 5400 Pa
Notice: This method is recommended for better
reliability.
A3 A4 A4
A3 A4 A4
A5
A5
