Tritec TRI-STAND Montageanleitung Seite 137

A1
A1

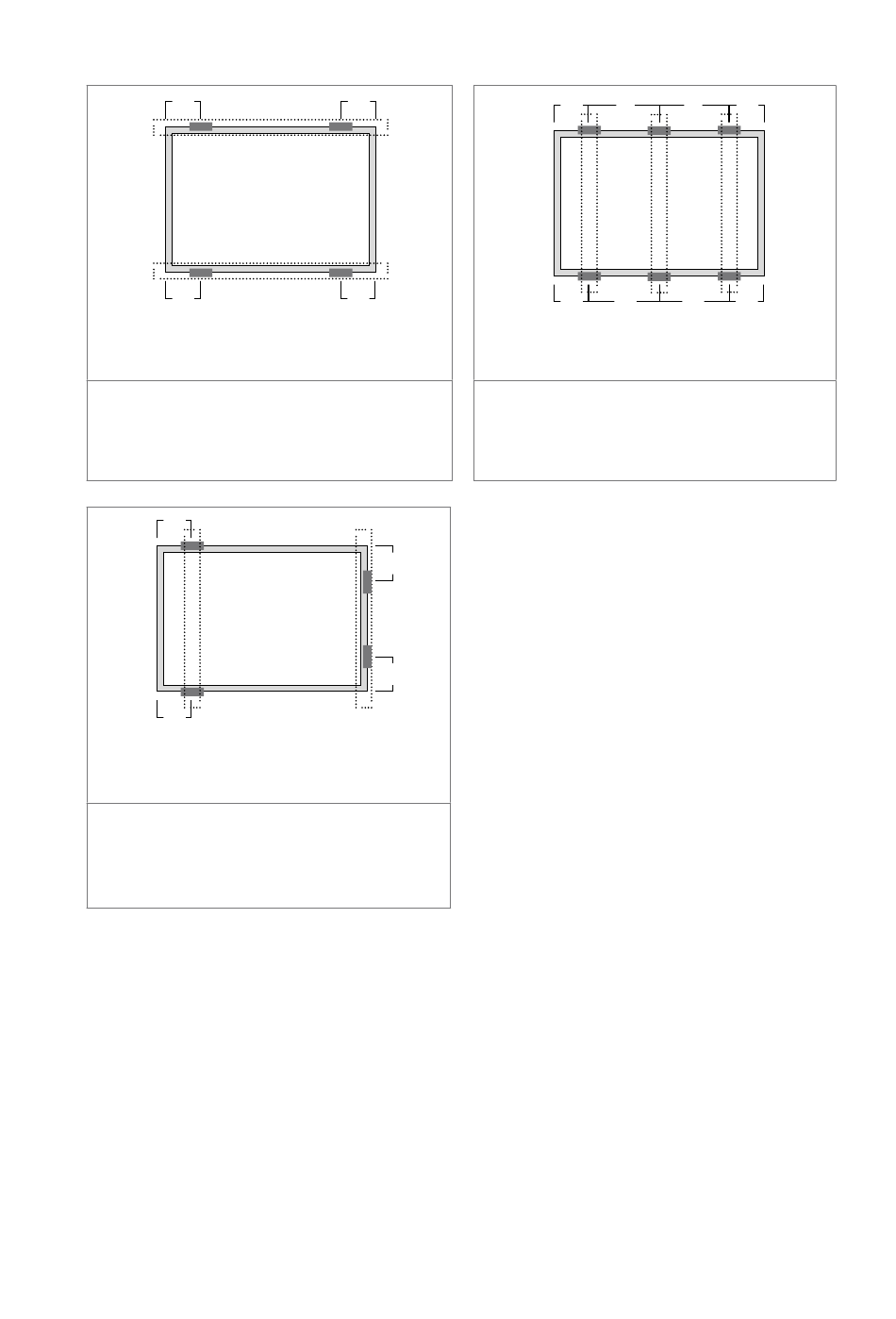

Use four clamps on the long side. Mounting rails
run parallel to the long side frame.
A1 range = (240 – 330) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 4000 Pa
A1
A1
Use two clamps on the long side and two clamps
on the short side.
Mounting rails run perpendicular to the long side
frame.
A1 range = (100 – 550) mm
A2 range = (200 – 250) mm
Maximum Load:
Uplift load ≤ 2400 Pa
Downforce load ≤ 2400 Pa
A1
A1
Use six clamps on the long side.
Mounting rails run perpendicularly to the long
side frame.
A3 range = (80 –380) mm,
A5 range = (80 –380) mm
Maximum Load:
Uplift load ≤ 4000 Pa
Downforce load ≤ 6000 Pa
A2
A2
A3 A4 A4
A3 A4 A4
