Setting Vehicle Height
For best plow performance the plow
platform and base must be parallel to the
surface being plowed. The vehicle height
should be adjusted prior to plowing to set
the plow in the correct position. This can
be done by adjusting the vehicle spring
settings, adjusting tire pressure, and adding or
removing weight from the vehicle. Be sure to
include the weight of the driver on the vehicle
when setting up the machine.
Every plowing situation is diff erent. Always plan ahead before you start. It is up to you
to analyze the situation and make the decisions necessary for the proper use of your WARN
products. Some key things to remember when using your WARN plow:
√ Vehicle weight balance and stability can be greatly changed when a plow is attached
and when the vehicle is pushing a loaded plow. With this change, steering and
vehicle control will be diff erent.
√ 5 MPH (8 KPH) maximum. Keep your speed low and pay attention to how the
machine is responding to your control. The plow may impact unseen and immovable
objects, causing a sudden change in vehicle control. Use low range and 4WD if the
vehicle is so equipped.
√ Keep bystanders away from the plowing route or path. Steering and vehicle control
are diff erent when plowing, changing reaction time.
√ Wear proper safety equipment. Carefully review your vehicle manual and labeling.
√ Inspect your equipment before and after each use. Get it repaired if damaged. This
applies to the plow, winch (if used) and vehicle.
√ Set your plow up for the conditions. Best performance is obtained with the right
attack angle, spring tension and pivot angle. Too much cutting action will slow or
stop your progress. Too little may not get the job done.
√ Never plow side hills steeper than 10 degrees.

PLOWING

WARNING Vehicle weight balance and stability can
be greatly changed when a plow is attached and when
the vehicle is pushing a loaded plow. With this change,
steering and vehicle control will be diff erent.

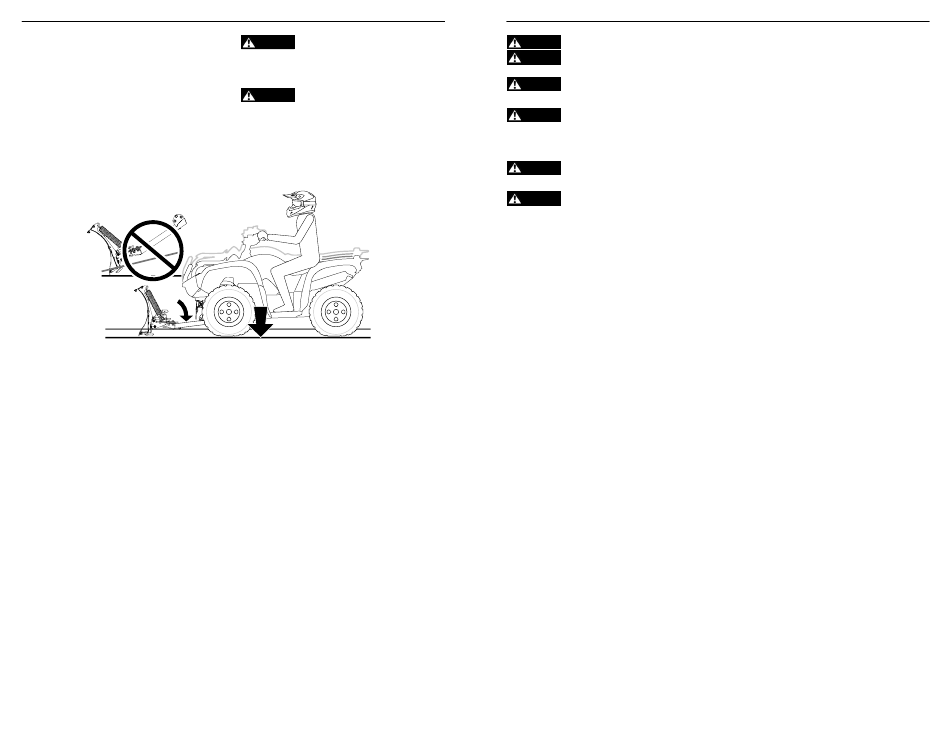

WARNING Always operate the vehicle at a low speed
with the blade installed. Never exceed 5 mph (8 km/h),
even with blade up. Use low range if vehicle is equipped.
WARN INDUSTRIES
11
PLOWING
Never operate the plow near bystanders.
WARNING
WARNING Always operate the vehicle at a low speed
with the blade installed.
Never exceed 5 mph (8 km/h), even with
WARNING
blade up. Use low range if vehicle is equipped.
Always plow cautiously, impact with
WARNING
hidden or stationary object may cause the vehicle to stop
suddenly or go out of control. Always stay clear of moving
parts and joints.
WARNING Always keep others away when operating
or adjusting plow.
WARNING Always wear gloves when handling winch
rope.
Step 1: PUT ON GLOVES & INSPECT YOUR
EQUIPMENT
Look for loose hardware, worn
components and inspect for damage.
Correct issues before you plow. Set blade
pivot to straight position.
Step 2: POSITION THE BLADE ASSEMBLY
AND VEHICLE
Carefully move the vehicle and plow
assembly to a fl at level area and about
3' (1m) apart. Slowly move the vehicle
towards the mounting tabs of the tube
assembly until the push tube is between
the front tires.
Step 3: ENGAGE THE PLOW ASSEMBLY TO
THE VEHICLE MOUNT
Lift the push tube at mounting tab end
and slide plow assembly on wear bar,
seating the alignment pilot disks into the
mount cradle. If the plow is on a loose
surface, you may need to work on one side
and then the other.
Step 4: INSTALL THE CONNECTING PINS
AND LATCH THE PIN BAIL
On each side, install the connecting pin.
You may need to wiggle the push tube
assembly to allow the pin to easily insert. If
you fi nd diffi culty, a tapered drift may help
align the holes.
Step 5: ATTACH THE LIFT DEVICE
If you are using a winch, put the winch
in freespool and pull out 3 to 5 feet (1 to
2 meters) of wire rope. Route the rope
through the rope guide and attach the hook
to the cross member of the tube assembly
as shown. Close the rope guide and insert
the locking pin. When using another type
of lifting device, carefully review and follow
the instructions included with that device.
Step 6: CHECK THE LIFT DEVICE
OPERATION
Lift and lower the plow. Note how far
you can lift without stalling the lifting
device or causing impact between the plow
assembly and the vehicle. Do not over lift
the plow during use.
Step 7: SET THE BLADE ATTACK ANGLE,
SKID HEIGHT, AND BLADE PIVOT ANGLE
See the plow blade labeling for tips on
setting up the blade for the job at hand. If
the material is deep, plow several thin layers
at a relaxed attack angle, minimizing load
on the plow and vehicle. Finish the job with
an aggressive attack angle to leave a clean
surface.
