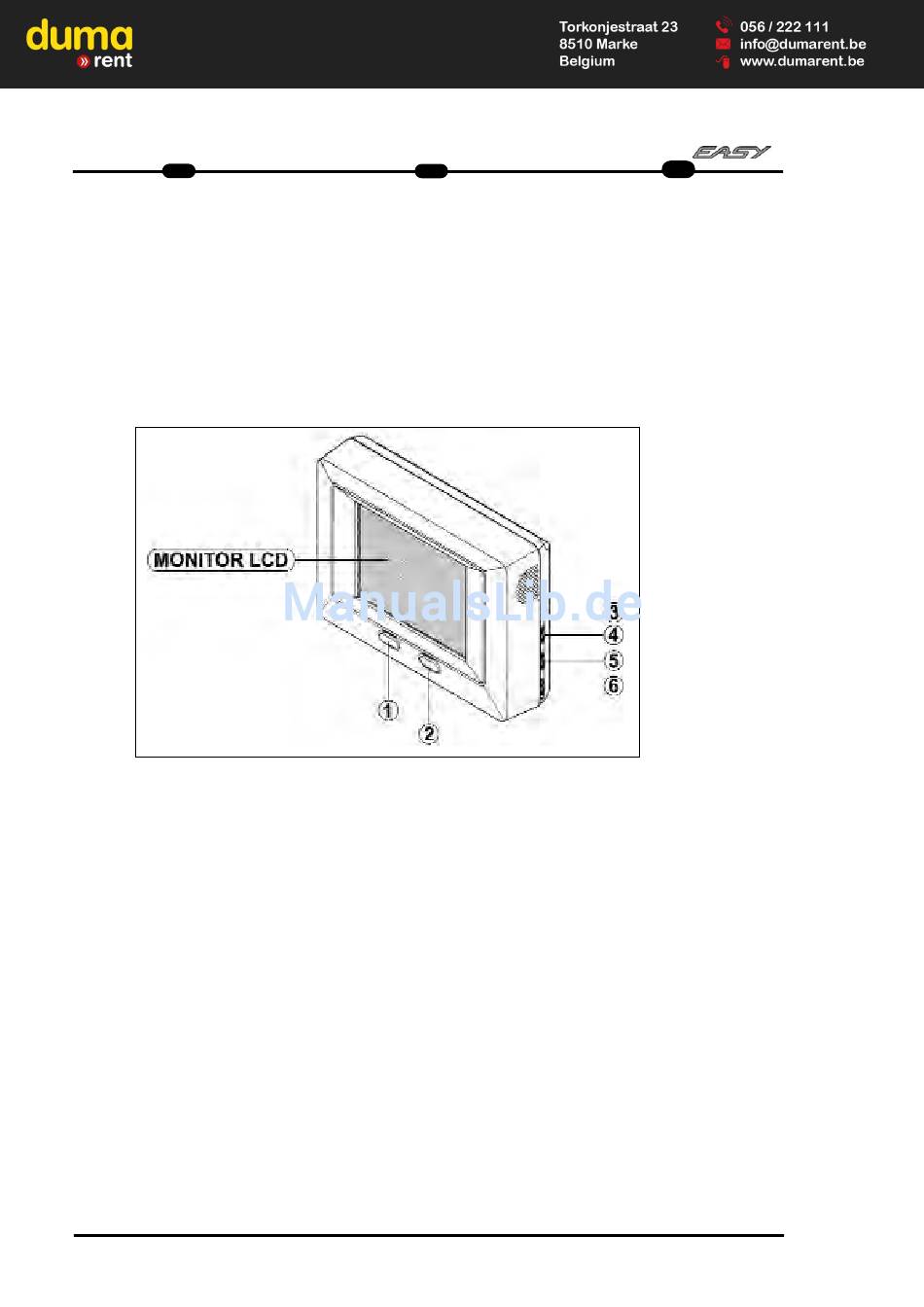

Description of LCD MONITOR model CM- 402.
(See Figure)
FRONT VIEW
1- Main switch.
Press the on/off switch to switch on the monitor.
2 - Contrast switch.
Press the switch to adjust the monitor luminosity in day/night mode.
3 - TV camera change switch.
Move the switch to change the TV camera. (if more than one TV camera is present)
4 - Switch not used
5 - Colour.
Checks colour intensity.
6 - Luminosity.
Checks luminosity.
Specification MONITOR LCD
TV System
Power supply source
Power consumption
Operating Temperature
LCD
Dimension
Weight
General maintenance and cleaning
· If the vehicle has been parked in the sun and the cab gets heated considerably, let the MONITOR cool down before switching it on.
· Clean the MONITOR and CAMERA unit with a soft cloth. Use a mild detergent.
Never use strong detergents like thinners or petrol as this could damage the unit coating.
Cleaning
Disconnect the unit or switch it off before cleaning.
Do not use liquid or gaseous detergents; use a damp cloth for cleaning.
Liquid entering the MONITOR unit
Do not thrust objects or throw liquids or solids on the unit as this result in its electrical parts catching fire.
Assistance
Do not attempt to open or modify the CAMERA and MONITOR unit.
CONTACT YOUR AGENT OR DEALER.
60
EN
NTSC or PAL
DC12V or AC/DC trasformatore
5.4 WATT
-15°C a +60°C
4" TFT LCD COLOR
145(W) x 105(H) x 40(D) mm
0.3Kg
MRT 1440-1640-1840
