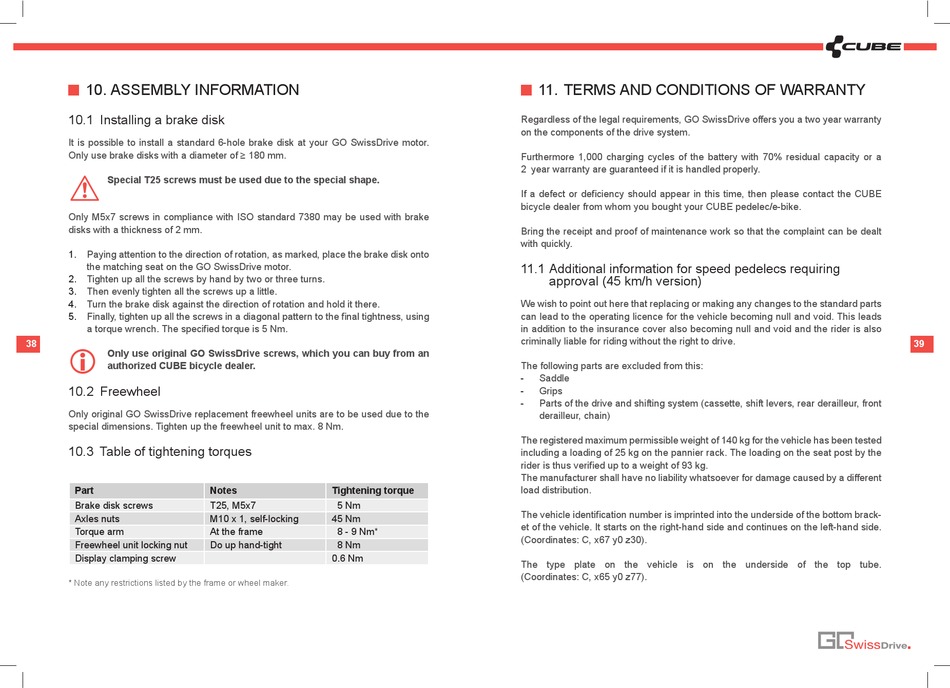

10. aSSemBlY INformaTIoN
10.1 Installing a brake disk
It is possible to install a standard 6-hole brake disk at your Go SwissDrive motor.
only use brake disks with a diameter of ≥ 180 mm.
Special T25 screws must be used due to the special shape.
a
only m5x7 screws in compliance with ISo standard 7380 may be used with brake
disks with a thickness of 2 mm.
1. Paying attention to the direction of rotation, as marked, place the brake disk onto
the matching seat on the Go SwissDrive motor.
2. Tighten up all the screws by hand by two or three turns.
3. Then evenly tighten all the screws up a little.
4. Turn the brake disk against the direction of rotation and hold it there.
5. finally, tighten up all the screws in a diagonal pattern to the final tightness, using
a torque wrench. The specified torque is 5 Nm.
38
Only use original GO SwissDrive screws, which you can buy from an
i
authorized CUBE bicycle dealer.

10.2 freewheel

only original Go SwissDrive replacement freewheel units are to be used due to the
special dimensions. Tighten up the freewheel unit to max. 8 Nm.
10.3 Table of tightening torques
Part
Brake disk screws
axles nuts
Torque arm
freewheel unit locking nut
Display clamping screw
* Note any restrictions listed by the frame or wheel maker.
Notes Tightening torque
T25, m5x7 5 Nm
m10 x 1, self-locking 45 Nm
at the frame 8 - 9 Nm*
Do up hand-tight 8 Nm
0.6 Nm
11. TermS aND coNDITIoNS of WarraNTY
regardless of the legal requirements, Go SwissDrive offers you a two year warranty
on the components of the drive system.
furthermore 1,000 charging cycles of the battery with 70% residual capacity or a
2 year warranty are guaranteed if it is handled properly.
If a defect or deficiency should appear in this time, then please contact the cUBe
bicycle dealer from whom you bought your cUBe pedelec/e-bike.
Bring the receipt and proof of maintenance work so that the complaint can be dealt
with quickly.
11.1 additional information for speed pedelecs requiring
approval (45 km/h version)
We wish to point out here that replacing or making any changes to the standard parts
can lead to the operating licence for the vehicle becoming null and void. This leads
in addition to the insurance cover also becoming null and void and the rider is also
criminally liable for riding without the right to drive.
The following parts are excluded from this:
- Saddle
- Grips
- Parts of the drive and shifting system (cassette, shift levers, rear derailleur, front
derailleur, chain)
The registered maximum permissible weight of 140 kg for the vehicle has been tested
including a loading of 25 kg on the pannier rack. The loading on the seat post by the
rider is thus verified up to a weight of 93 kg.
The manufacturer shall have no liability whatsoever for damage caused by a different
load distribution.
The vehicle identification number is imprinted into the underside of the bottom brack-
et of the vehicle. It starts on the right-hand side and continues on the left-hand side.
(coordinates: c, x67 y0 z30).
The type plate on the vehicle is on the underside of the top tube.
(coordinates: c, x65 y0 z77).
