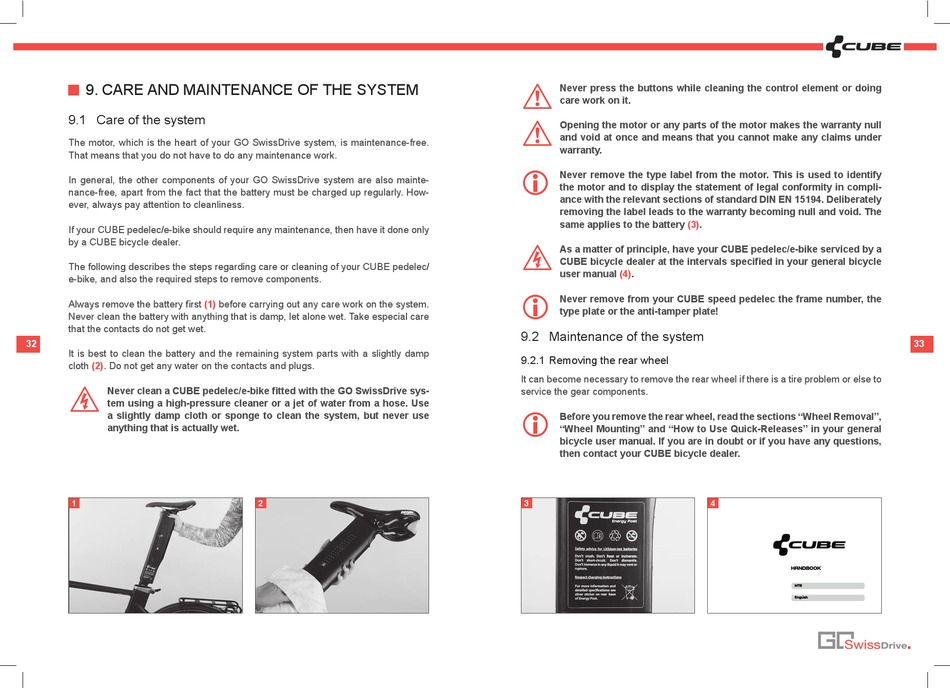

9. care aND maINTeNaNce of The SYSTem
9.1 care of the system
The motor, which is the heart of your Go SwissDrive system, is maintenance-free.
That means that you do not have to do any maintenance work.
In general, the other components of your Go SwissDrive system are also mainte-
nance-free, apart from the fact that the battery must be charged up regularly. how-
ever, always pay attention to cleanliness.
If your cUBe pedelec/e-bike should require any maintenance, then have it done only
by a cUBe bicycle dealer.
The following describes the steps regarding care or cleaning of your cUBe pedelec/
e-bike, and also the required steps to remove components.
always remove the battery first (1) before carrying out any care work on the system.
Never clean the battery with anything that is damp, let alone wet. Take especial care
that the contacts do not get wet.
32
It is best to clean the battery and the remaining system parts with a slightly damp
cloth (2). Do not get any water on the contacts and plugs.
Never clean a CUBE pedelec/e-bike fitted with the GO SwissDrive sys-
g
tem using a high-pressure cleaner or a jet of water from a hose. Use
a slightly damp cloth or sponge to clean the system, but never use
anything that is actually wet.
1 2
Never press the buttons while cleaning the control element or doing
a
care work on it.
Opening the motor or any parts of the motor makes the warranty null
a
and void at once and means that you cannot make any claims under
warranty.
Never remove the type label from the motor. This is used to identify
i
the motor and to display the statement of legal conformity in compli-
ance with the relevant sections of standard DIN EN 15194. Deliberately
removing the label leads to the warranty becoming null and void. The
same applies to the battery (3).
As a matter of principle, have your CUBE pedelec/e-bike serviced by a
g
CUBE bicycle dealer at the intervals specified in your general bicycle
user manual (4).
Never remove from your CUBE speed pedelec the frame number, the
I
type plate or the anti-tamper plate!
9.2 maintenance of the system
9.2.1 removing the rear wheel
It can become necessary to remove the rear wheel if there is a tire problem or else to
service the gear components.
Before you remove the rear wheel, read the sections "Wheel Removal",
i
"Wheel Mounting" and "How to Use Quick-Releases" in your general
bicycle user manual. If you are in doubt or if you have any questions,
then contact your CUBE bicycle dealer.
3 4
Handbook
mtb
English
33
