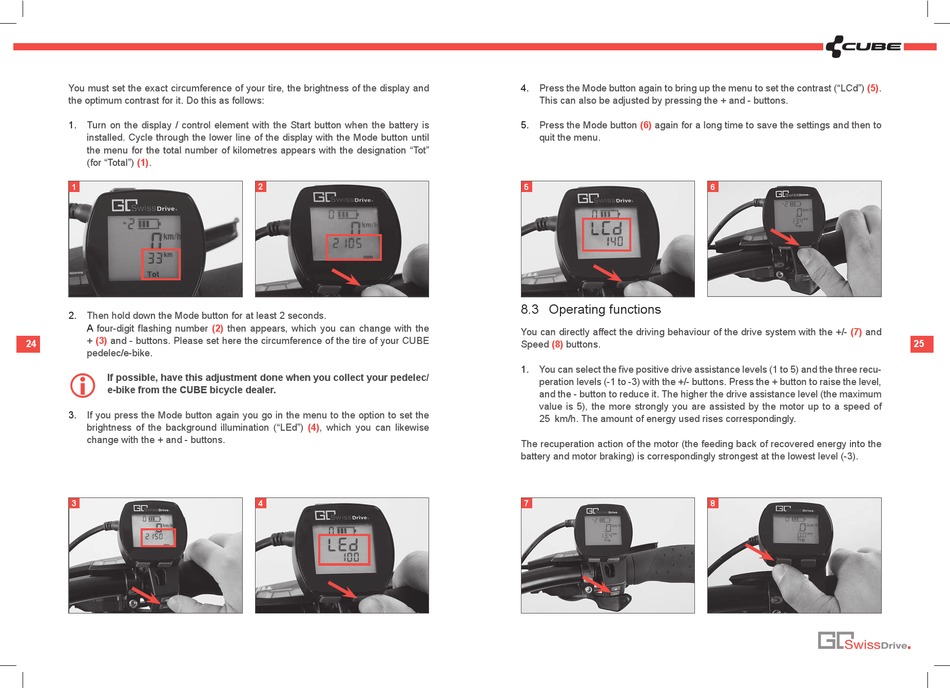

You must set the exact circumference of your tire, the brightness of the display and
the optimum contrast for it. Do this as follows:
1. Turn on the display / control element with the Start button when the battery is
installed. cycle through the lower line of the display with the mode button until
the menu for the total number of kilometres appears with the designation "Tot"
(for "Total") (1).
1
2. Then hold down the mode button for at least 2 seconds.
a four-digit flashing number (2) then appears, which you can change with the
+ (3) and - buttons. Please set here the circumference of the tire of your cUBe
24
pedelec/e-bike.
If possible, have this adjustment done when you collect your pedelec/
i
e-bike from the CUBE bicycle dealer.
3. If you press the mode button again you go in the menu to the option to set the
brightness of the background illumination ("led") (4), which you can likewise
change with the + and - buttons.
3
2
4
4. Press the mode button again to bring up the menu to set the contrast ("lcd") (5).
This can also be adjusted by pressing the + and - buttons.
5. Press the mode button (6) again for a long time to save the settings and then to
quit the menu.
5
8.3 operating functions
You can directly affect the driving behaviour of the drive system with the +/- (7) and
Speed (8) buttons.
1. You can select the five positive drive assistance levels (1 to 5) and the three recu-
peration levels (-1 to -3) with the +/- buttons. Press the + button to raise the level,
and the - button to reduce it. The higher the drive assistance level (the maximum
value is 5), the more strongly you are assisted by the motor up to a speed of
25 km/h. The amount of energy used rises correspondingly.
The recuperation action of the motor (the feeding back of recovered energy into the
battery and motor braking) is correspondingly strongest at the lowest level (-3).
7
6
8
25
