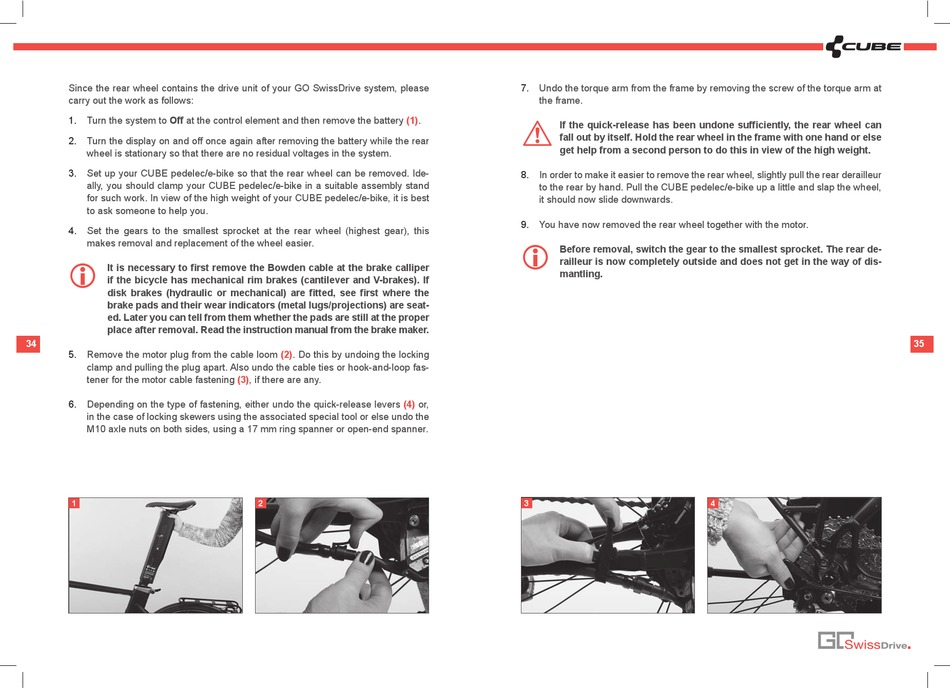

Since the rear wheel contains the drive unit of your Go SwissDrive system, please
carry out the work as follows:
1. Turn the system to Off at the control element and then remove the battery (1).
2. Turn the display on and off once again after removing the battery while the rear
wheel is stationary so that there are no residual voltages in the system.
3. Set up your cUBe pedelec/e-bike so that the rear wheel can be removed. Ide-
ally, you should clamp your cUBe pedelec/e-bike in a suitable assembly stand
for such work. In view of the high weight of your cUBe pedelec/e-bike, it is best
to ask someone to help you.
4. Set the gears to the smallest sprocket at the rear wheel (highest gear), this
makes removal and replacement of the wheel easier.
It is necessary to first remove the Bowden cable at the brake calliper
i
if the bicycle has mechanical rim brakes (cantilever and V-brakes). If
disk brakes (hydraulic or mechanical) are fitted, see first where the
brake pads and their wear indicators (metal lugs/projections) are seat-
ed. Later you can tell from them whether the pads are still at the proper
place after removal. Read the instruction manual from the brake maker.
34
5. remove the motor plug from the cable loom (2). Do this by undoing the locking
clamp and pulling the plug apart. also undo the cable ties or hook-and-loop fas-
tener for the motor cable fastening (3), if there are any.
6. Depending on the type of fastening, either undo the quick-release levers (4) or,
in the case of locking skewers using the associated special tool or else undo the
m10 axle nuts on both sides, using a 17 mm ring spanner or open-end spanner.
1 2
7. Undo the torque arm from the frame by removing the screw of the torque arm at
the frame.
If the quick-release has been undone sufficiently, the rear wheel can
a
fall out by itself. Hold the rear wheel in the frame with one hand or else
get help from a second person to do this in view of the high weight.
8. In order to make it easier to remove the rear wheel, slightly pull the rear derailleur
to the rear by hand. Pull the cUBe pedelec/e-bike up a little and slap the wheel,
it should now slide downwards.
9. You have now removed the rear wheel together with the motor.
Before removal, switch the gear to the smallest sprocket. The rear de-
i
railleur is now completely outside and does not get in the way of dis-
mantling.
3 4
