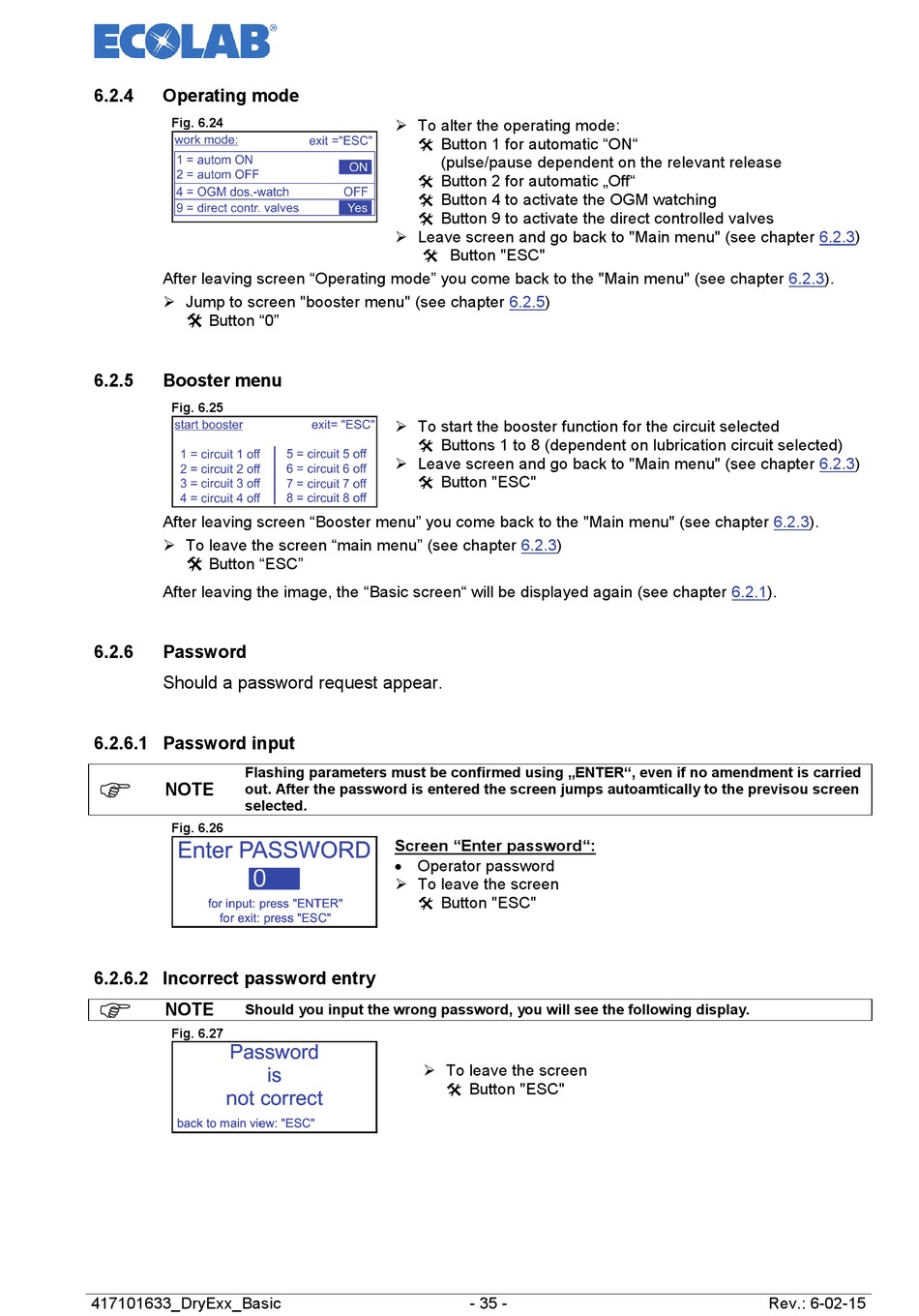

6.2.4
Operating mode
Fig. 6.24
After leaving screen "Operating mode" you come back to the "Main menu" (see chapter 6.2.3).
Jump to screen "booster menu" (see chapter 6.2.5)
Button "0"
6.2.5
Booster menu
Fig. 6.25
After leaving screen "Booster menu" you come back to the "Main menu" (see chapter 6.2.3).
To leave the screen "main menu" (see chapter 6.2.3)
Button "ESC"
After leaving the image, the "Basic screen" will be displayed again (see chapter 6.2.1).
6.2.6
Password
Should a password request appear.
6.2.6.1 Password input
Flashing parameters must be confirmed using „ENTER", even if no amendment is carried
NOTE
out. After the password is entered the screen jumps autoamtically to the previsou screen
selected.
Fig. 6.26
6.2.6.2 Incorrect password entry
NOTE
Should you input the wrong password, you will see the following display.
Fig. 6.27
417101633_DryExx_Basic
To alter the operating mode:
Button 1 for automatic "ON"
(pulse/pause dependent on the relevant release
Button 2 for automatic „Off"
Button 4 to activate the OGM watching
Button 9 to activate the direct controlled valves
Leave screen and go back to "Main menu" (see chapter 6.2.3)
Button "ESC"
To start the booster function for the circuit selected
Buttons 1 to 8 (dependent on lubrication circuit selected)
Leave screen and go back to "Main menu" (see chapter 6.2.3)
Button "ESC"
Screen "Enter password":
• Operator password
To leave the screen
Button "ESC"
To leave the screen
Button "ESC"
- 35 -
Rev.: 6-02-15
