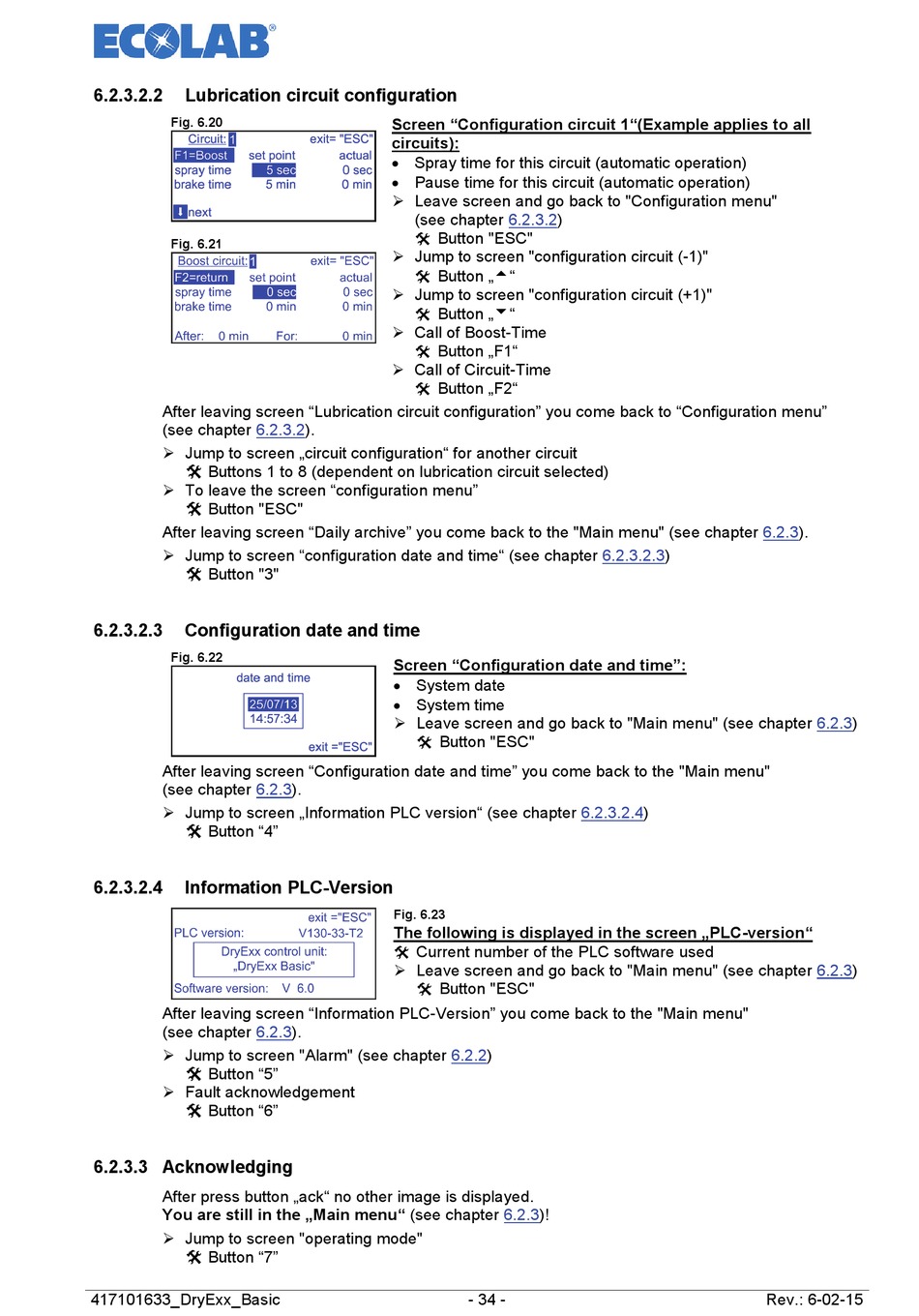

6.2.3.2.2
Lubrication circuit configuration
Fig. 6.20
Fig. 6.21
After leaving screen "Lubrication circuit configuration" you come back to "Configuration menu"
(see chapter 6.2.3.2).
Jump to screen „circuit configuration" for another circuit
Buttons 1 to 8 (dependent on lubrication circuit selected)
To leave the screen "configuration menu"
Button "ESC"
After leaving screen "Daily archive" you come back to the "Main menu" (see chapter 6.2.3).
Jump to screen "configuration date and time" (see chapter 6.2.3.2.3)
Button "3"
6.2.3.2.3
Configuration date and time
Fig. 6.22
After leaving screen "Configuration date and time" you come back to the "Main menu"
(see chapter 6.2.3).
Jump to screen „Information PLC version" (see chapter 6.2.3.2.4)
Button "4"
6.2.3.2.4
Information PLC-Version
After leaving screen "Information PLC-Version" you come back to the "Main menu"
(see chapter 6.2.3).
Jump to screen "Alarm" (see chapter 6.2.2)
Button "5"
Fault acknowledgement
Button "6"
6.2.3.3 Acknowledging
After press button „ack" no other image is displayed.
You are still in the „Main menu" (see chapter 6.2.3)!
Jump to screen "operating mode"
Button "7"
417101633_DryExx_Basic
Screen "Configuration circuit 1"(Example applies to all
circuits):
• Spray time for this circuit (automatic operation)
• Pause time for this circuit (automatic operation)
Leave screen and go back to "Configuration menu"
(see chapter 6.2.3.2)
Button "ESC"
Jump to screen "configuration circuit (-1)"
Button „"
Jump to screen "configuration circuit (+1)"
Button „"
Call of Boost-Time
Button „F1"
Call of Circuit-Time
Button „F2"
Screen "Configuration date and time":
• System date
• System time
Leave screen and go back to "Main menu" (see chapter 6.2.3)
Button "ESC"
Fig. 6.23
The following is displayed in the screen „PLC-version"
Current number of the PLC software used
Leave screen and go back to "Main menu" (see chapter 6.2.3)
Button "ESC"
- 34 -
Rev.: 6-02-15
