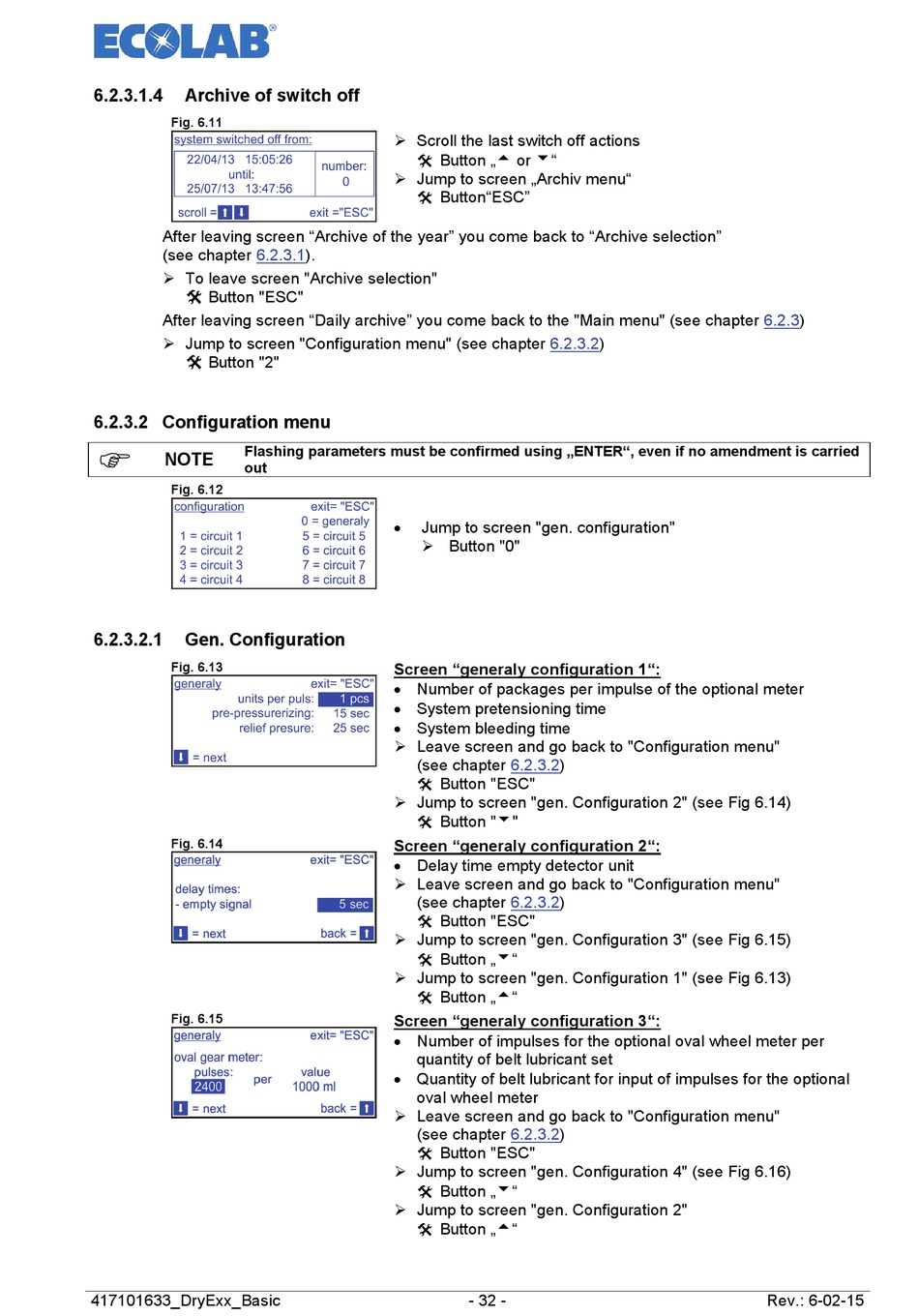

6.2.3.1.4

Archive of switch off

Fig. 6.11
After leaving screen "Archive of the year" you come back to "Archive selection"
(see chapter 6.2.3.1).
 To leave screen "Archive selection"
Button "ESC"

After leaving screen "Daily archive" you come back to the "Main menu" (see chapter 6.2.3)
 Jump to screen "Configuration menu" (see chapter 6.2.3.2)
Button "2"


6.2.3.2 Configuration menu

Flashing parameters must be confirmed using „ENTER", even if no amendment is carried
NOTE
out
Fig. 6.12
6.2.3.2.1

Gen. Configuration

Fig. 6.13
Fig. 6.14
Fig. 6.15
417101633_DryExx_Basic
 Scroll the last switch off actions
 Button „ or "
 Jump to screen „Archiv menu"
 Button"ESC"
• Jump to screen "gen. configuration"
 Button "0"
Screen "generaly configuration 1":
• Number of packages per impulse of the optional meter
• System pretensioning time
• System bleeding time
 Leave screen and go back to "Configuration menu"
(see chapter 6.2.3.2)
 Button "ESC"
 Jump to screen "gen. Configuration 2" (see Fig 6.14)
 Button ""
Screen "generaly configuration 2":
• Delay time empty detector unit
 Leave screen and go back to "Configuration menu"
(see chapter 6.2.3.2)
 Button "ESC"
 Jump to screen "gen. Configuration 3" (see Fig 6.15)
 Button „"
 Jump to screen "gen. Configuration 1" (see Fig 6.13)
 Button „"
Screen "generaly configuration 3":
• Number of impulses for the optional oval wheel meter per
quantity of belt lubricant set
• Quantity of belt lubricant for input of impulses for the optional
oval wheel meter
 Leave screen and go back to "Configuration menu"
(see chapter 6.2.3.2)
 Button "ESC"
 Jump to screen "gen. Configuration 4" (see Fig 6.16)
 Button „"
 Jump to screen "gen. Configuration 2"
 Button „"
- 32 - Rev.: 6-02-15
