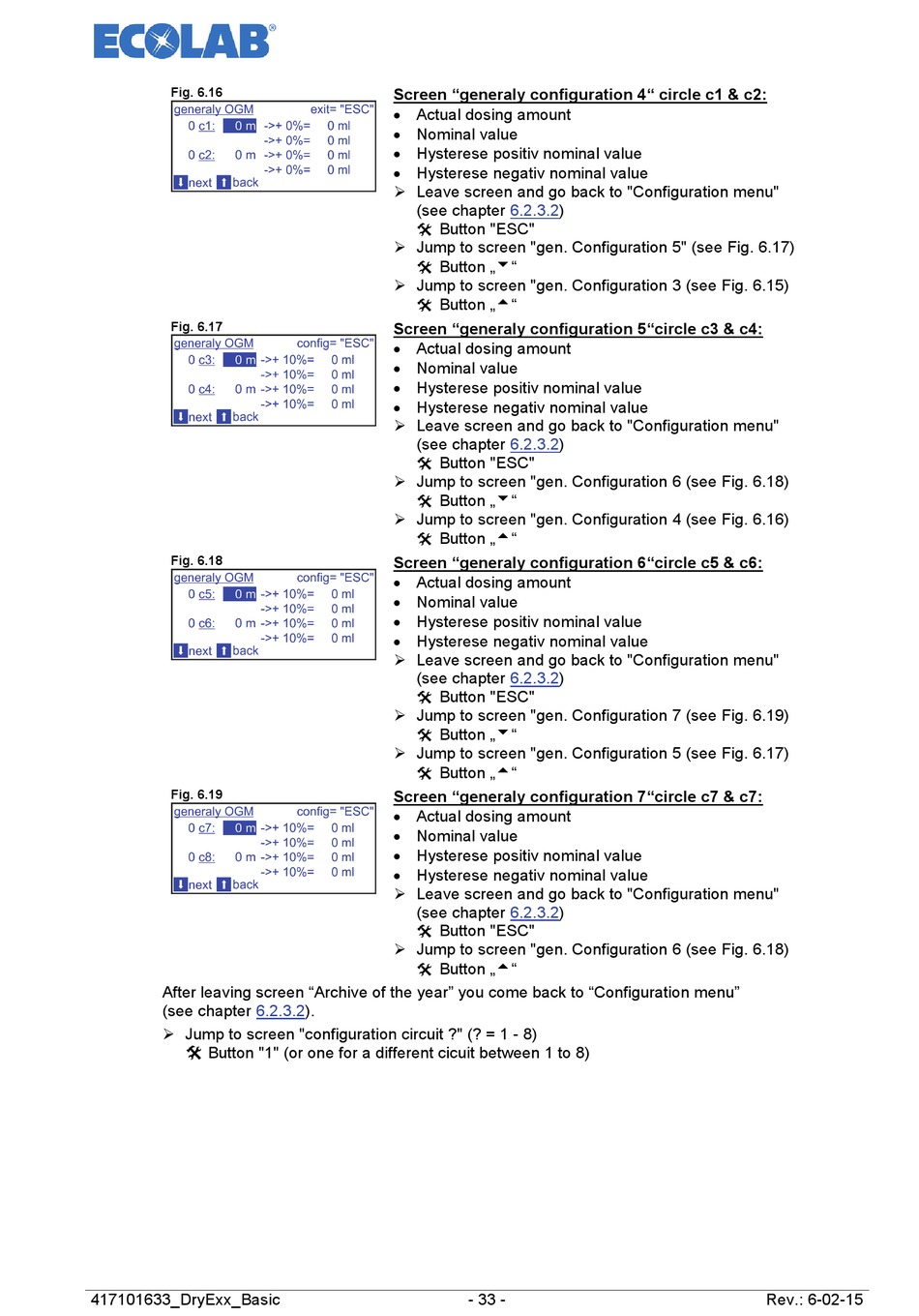

ECOLAB Lubo-DryExx-Basic Bedienungsanleitung Seite 33

Fig. 6.16
Fig. 6.17
Fig. 6.18
Fig. 6.19
After leaving screen "Archive of the year" you come back to "Configuration menu"
(see chapter 6.2.3.2).
 Jump to screen "configuration circuit ?" (? = 1 - 8)
Button "1" (or one for a different cicuit between 1 to 8)

417101633_DryExx_Basic
Screen "generaly configuration 4" circle c1 & c2:
• Actual dosing amount
• Nominal value
• Hysterese positiv nominal value
• Hysterese negativ nominal value
 Leave screen and go back to "Configuration menu"
(see chapter 6.2.3.2)
 Button "ESC"
 Jump to screen "gen. Configuration 5" (see Fig. 6.17)
 Button „"
 Jump to screen "gen. Configuration 3 (see Fig. 6.15)
 Button „"
Screen "generaly configuration 5"circle c3 & c4:
• Actual dosing amount
• Nominal value
• Hysterese positiv nominal value
• Hysterese negativ nominal value
 Leave screen and go back to "Configuration menu"
(see chapter 6.2.3.2)
 Button "ESC"
 Jump to screen "gen. Configuration 6 (see Fig. 6.18)
 Button „"
 Jump to screen "gen. Configuration 4 (see Fig. 6.16)
 Button „"
Screen "generaly configuration 6"circle c5 & c6:
• Actual dosing amount
• Nominal value
• Hysterese positiv nominal value
• Hysterese negativ nominal value
 Leave screen and go back to "Configuration menu"
(see chapter 6.2.3.2)
 Button "ESC"
 Jump to screen "gen. Configuration 7 (see Fig. 6.19)
 Button „"
 Jump to screen "gen. Configuration 5 (see Fig. 6.17)
 Button „"
Screen "generaly configuration 7"circle c7 & c7:
• Actual dosing amount
• Nominal value
• Hysterese positiv nominal value
• Hysterese negativ nominal value
 Leave screen and go back to "Configuration menu"
(see chapter 6.2.3.2)
 Button "ESC"
 Jump to screen "gen. Configuration 6 (see Fig. 6.18)
 Button „"
- 33 - Rev.: 6-02-15
