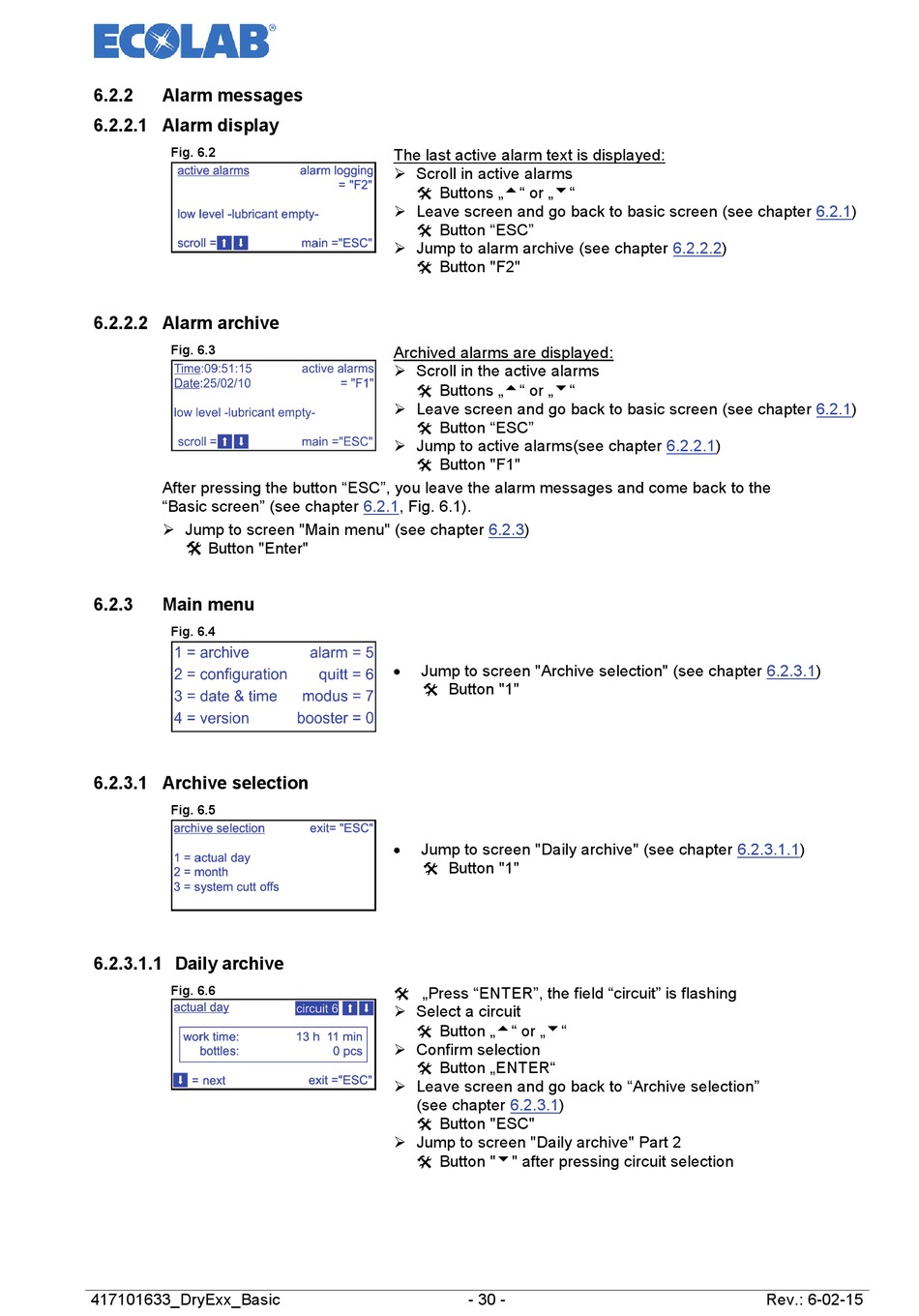

6.2.2

Alarm messages

6.2.2.1 Alarm display

Fig. 6.2

6.2.2.2 Alarm archive

Fig. 6.3
After pressing the button "ESC", you leave the alarm messages and come back to the
"Basic screen" (see chapter 6.2.1, Fig. 6.1).
 Jump to screen "Main menu" (see chapter 6.2.3)
Button "Enter"

6.2.3

Main menu

Fig. 6.4

6.2.3.1 Archive selection

Fig. 6.5

6.2.3.1.1 Daily archive

Fig. 6.6
417101633_DryExx_Basic
The last active alarm text is displayed:
 Scroll in active alarms
 Buttons „" or „"
 Leave screen and go back to basic screen (see chapter 6.2.1)
 Button "ESC"
 Jump to alarm archive (see chapter 6.2.2.2)
 Button "F2"
Archived alarms are displayed:
 Scroll in the active alarms
 Buttons „" or „"
 Leave screen and go back to basic screen (see chapter 6.2.1)
 Button "ESC"
 Jump to active alarms(see chapter 6.2.2.1)
 Button "F1"
• Jump to screen "Archive selection" (see chapter 6.2.3.1)
 Button "1"
• Jump to screen "Daily archive" (see chapter 6.2.3.1.1)
 Button "1"
 „Press "ENTER", the field "circuit" is flashing
 Select a circuit
 Button „" or „"
 Confirm selection
 Button „ENTER"
 Leave screen and go back to "Archive selection"
(see chapter 6.2.3.1)
 Button "ESC"
 Jump to screen "Daily archive" Part 2
 Button "" after pressing circuit selection
- 30 - Rev.: 6-02-15
