Product description

4 Product description
4.1

Setup

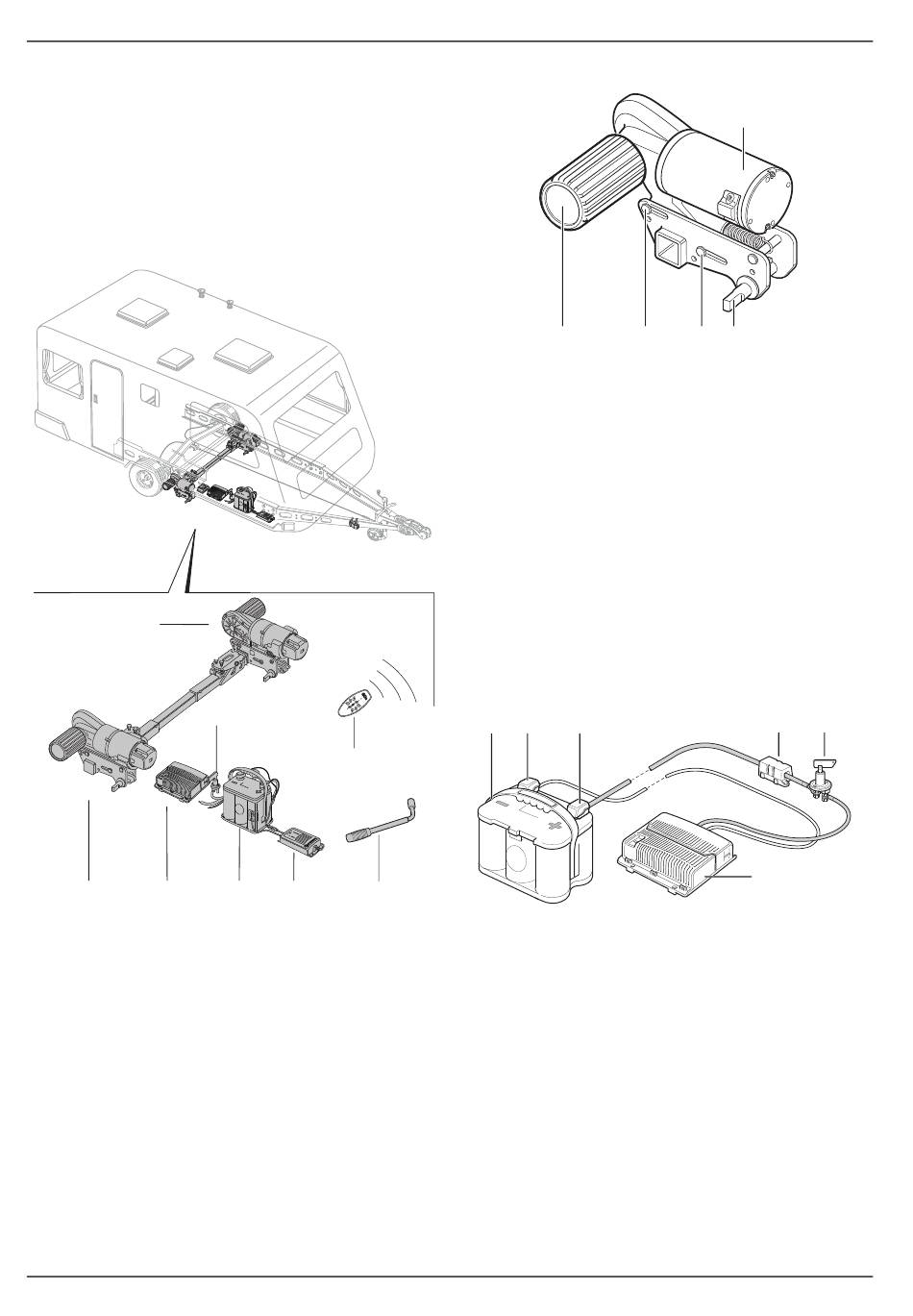

4.1.1 Setup of the entyre system
The manoeuvring system consists of two separate drive
units, each with its own 12 V DC motor� These units are
mounted on the frame of the vehicle in the immediate
vicinity of the wheels, and are connected by a lateral
bar�
1
3
2
Fig. 1
1 Left drive unit (in the driving direction)
2 Right drive unit (in the driving direction)
3
Control unit (illustration serves as an example)
4 Isolating switch
5
Battery
6 Charger
7 Lever
8
Remote control
26 EN
4
8
6 7
5
4.1.2 Setup of the drive unit
4
Fig. 2
1
Electric motor
2 Toggle crank
3 status display Engaging and disengaging
4
Drive roller
4.1.3 Setup of the power supply

WARNING
Fire hazard due to the control unit being co-
vered inside the caravan
If the control unit is inadequately ventilated, it
may overheat during operation�
Adequately ventilate the control unit�
Do not cover the control unit�
 Drawing serves as an example (Mover XT control
unit)
1 2 3
Fig. 3
1
Battery
2 Negative terminal
3 Positive terminal
4
Fuse
5 Isolating switch
6 Remote control
GO2 RH3
1
3 3 2
4
6
60040-00325 ∙ 00 ∙ 08/2022
