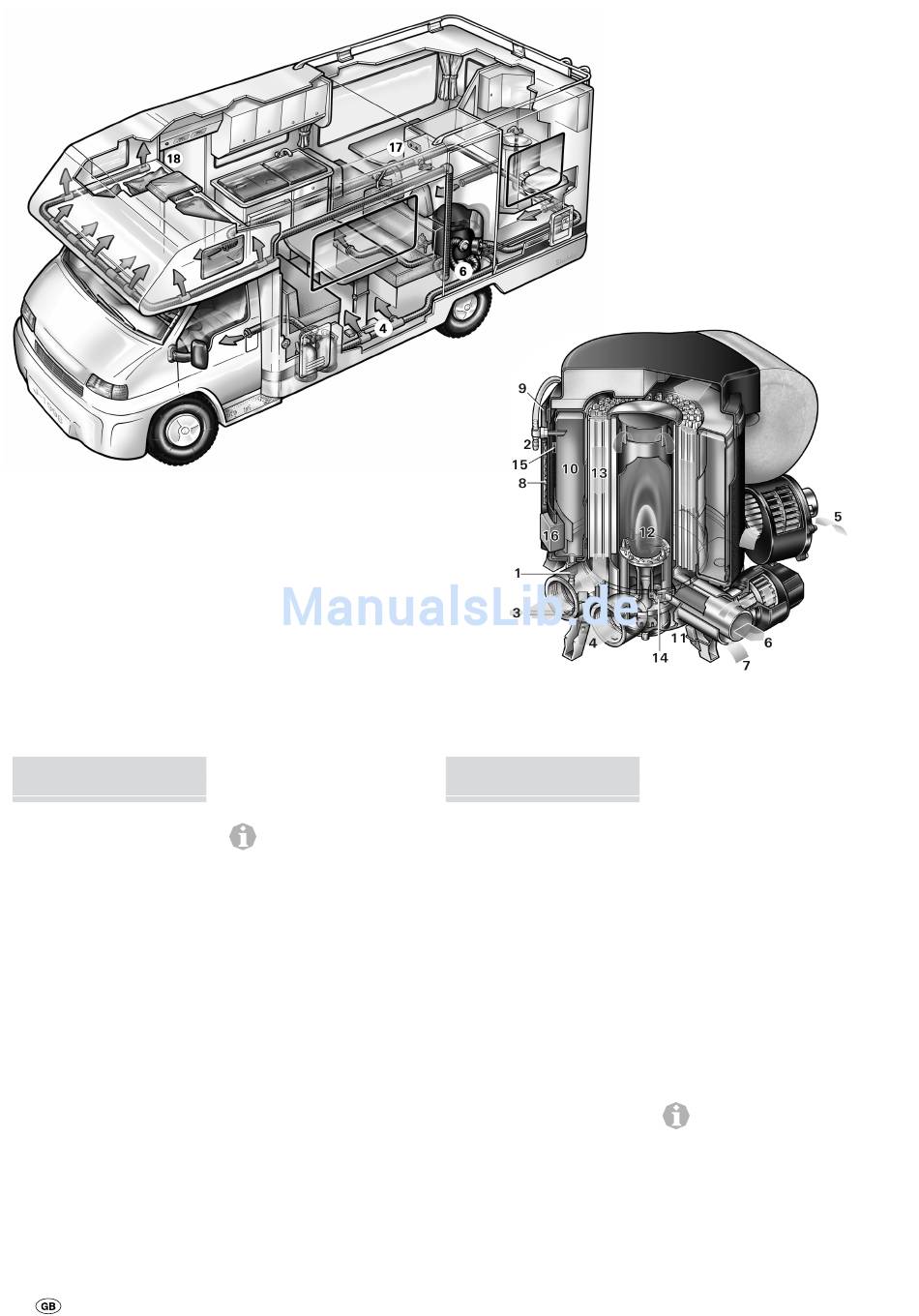

1 Cold water connection
2 Hot water connection
3 Gas connection
4 Hot air outlets
5 Circulating air return line
6 Waste gas discharge
7 Combustion air infeed
8 Electronic control unit
9 Cover for connection
cable
10 Water container (12 litres)
Function
description
The Trumatic C is a hot-air
liquid-gas heating system
with integrated hot water
boiler (12 litres content). The
burner operates fan-sup-
ported, which ensures trou-
ble-free function even when
on the move.
In winter operation (heat-
ing and hot water) the device
automatically selects the
output level required, de-
pending on the temperature
difference between the room
temperature which has been
set and the temperature at
the particular time. The Type
C 6002 operates at three out-
put stages (2000, 4000, and
6000 W), and the Type
C 4002 at two stages (2000
and 4000 W). With the boiler
filled, the water will be auto-
matically heated at the same
time. The water temperature
depends on the selected op-
erating mode and the heating
power that is being emitted
8
11 Igniter
12 Burner
13 Heat exchanger
14 Overheating protector
15 Temperature sensor
16 230 V heating collar
for hot water
(Trumatic C EL only)
17 Control panels
18 Room temperature
sensor
(with or without water tem-
perature monitoring or with
drained water system).
Heating operation
is basically possible
without restriction with or
without water content.
In summer operation (hot
water only), the heating of
the water content takes place
at the lowest burner stage.
Once the water temperature
has been reached, the burner
switches off and the yellow
monitor lamp goes out.
Trumatic C EL units have
an additional 230 V electric
heating capability available
as an option (450 W/2 A) for
hot water.
Important
operating notes
1. If the cowl has been
placed near or directly be-
neath an opening window,
the device must be equipped
with an automatic shut-off
device in order to prevent
operation with the window
open.
2. The integrity and tight fit
of the exhaust gas double
duct must be checked regu-
larly, particularly at the end
of long trips. Also check the
mounting of the appliance
and the cowl.
3. Following a blow-back
(misfire) always have the ex-
haust gas system checked by
an expert!
4. Always keep the cowl for
the exhaust duct and com-
bustion air intake free of con-
tamination (slush, ice, leaves
etc.).
5. The installed temperature
limiter shuts off the gas sup-
ply if the appliance becomes
too hot. Therefore do not
shut the warm air outlets and
the opening for the returning
circulating air.
6. Directive 2004/78/EC
stipulates that a safety shut-
off device is required if mo-
tor homes are being heated
while driving. The safety
shut-off device is also recom-
mended for safety reasons
if caravans are being heated
while driving.
The Truma SecuMotion gas
pressure regulator meets this
requirement.
If no Truma SecuMotion
gas pressure regulator
is installed, the gas cylinder
must be closed whilst driving
and information signs must
be attached to the cylinder
cabinet and in the vicinity of
the control panel.
7. Always use original
Truma parts for mainte-
nance and repair work!
