Product description

3.1

General product overview

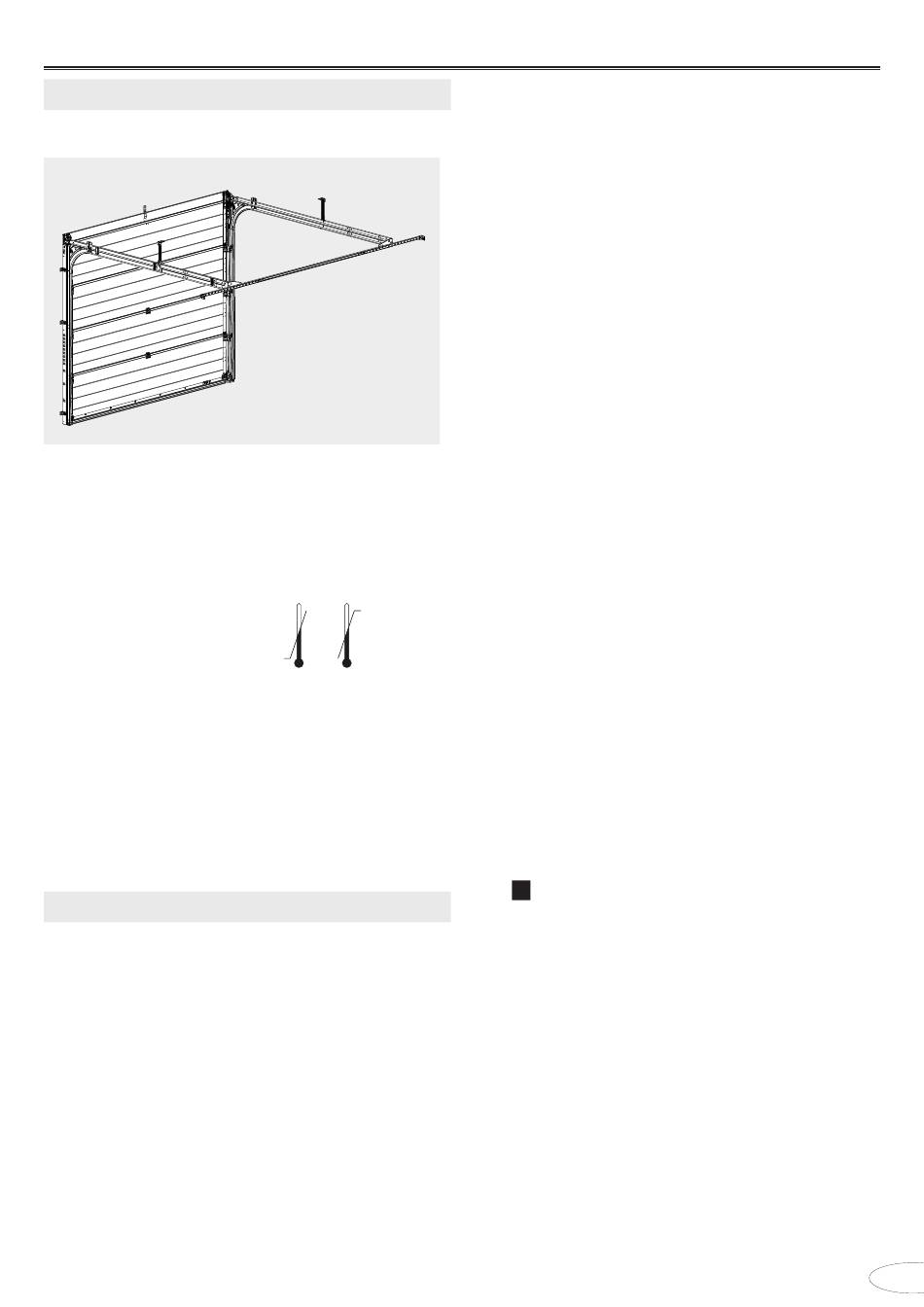

Fig. 1: Product view
3.2

Technical data

Model specifications
Product:
Door size / weight
Temperature range:
Sound pressure level L
Manufacturer:
3.3

Rating plate

The rating plate is situated on the inside of the door
leaf.
4

Mounting

4.1 Safety information for installation and
assembly
• The installation may only be carried out by
suitably qualified installers, see chapter 2.3 -
Personnel qualifications.
• Read these installation instructions before you
start installing the product.
• Never carry out the installation on your own.
Some of the work steps can only be achieved
with two people working.
• Wear your personal protective equipment upon
installation.
These assembly, operation and maintenance instructions must be kept for the entire period of use!
iso20-4 ZF
iso45-5 ZF
see rating plate
+40 °C
-20 °C
≤ 70 dB(A)
pA
Novoferm GmbH
Isselburger Straße 31
46459 Rees (Haldern),
Germany
www.novoferm.de
4.2

Scope of delivery

The scope of delivery is determined by the product
configuration. The scope of delivery usually com-
prises the following:
• Sectional door pre-assembled with tension spring
4.3

Preparing for installation

4.3.1 Information regarding installation
Observe the following information before starting the
installation:
• The steps for installation described in these
assembly and operating instructions refer to a
standard installation. Please contact the
manufacturer regarding special mounting
conditions.
• Prior to assembly, preventively compare the
dimensions of the garage by comparing them to
the basic dimensions of the door.
– minimal internal width of the garage = width of
basic dimension + 160 mm
– minimum garage height up to ceiling = height
of basic dimension + 115 mm (manually
operated and NovoPort)
– minimum garage height up to ceiling = height
of basic dimension + 130 mm (ceiling pull)
– minimum width stop, right and left = 35 mm
• Check the dimensions of the garage door
opening and compare them to the dimensions
specified on the delivery note.
• Check whether the supplied wooden screws (S8)
and the plugs (S9) are suitable for the respective
structural conditions.
• All right/ left specifications regarding the
installation refer to the perspective from the
inside of the garage, i.e. the viewing direction is
towards the outwards direction!
• All specified dimensions are in millimetres.
Subject to technical changes.
4.3.2 Required tools
Fig. a , page A1. For assembly, you require the
following tools (put into the garage prior to the install-
ation of the door, if no other access is available):
• wooden folding rule or tape measure
• reversible ratchet with extension
• wrench set with SW 7, 10, 13 and T30 (if
required, also jaw spanners or socket wrenches)
• cross-tip screwdriver Phillips; size 2
• T30 screwdriver
• impact drill
• 10 mm drill (drill length at least 200 mm)
• chalk for marking
• cutter knife
• spirit level (min. 80 cm)
• hacksaw
• water pump pliers
• hammer
EN - 19
