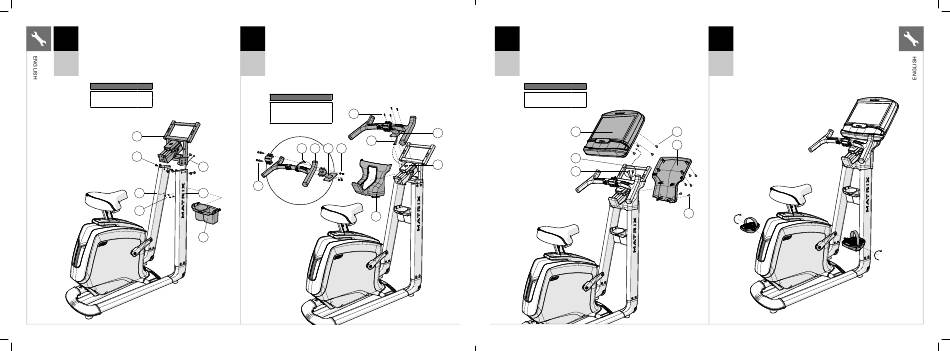

A Open HARDWARE FOR STEP 3.
3
B Carefully feed the CABLES (4) under the CONSOLE BRIDGE (9).
C Attach CONSOLE BRIDGE (9) to the CONSOLE MASTS (6 & 7)
using 8 BOLTS (B). Torque settings: 23.1 Nm / 17 lb-ft.
U30
D Attach the WATER BOTTLE HOLDER (10) to the CONSOLE
MASTS (6 & 7) using 4 SCREWS (C).
U50
Hardware For Step 3
Description Qty
B Bolt 8
C Screw 4
9
B
7
C
96
MXR20_AG_Bikes_r1_0_B.indd 96-97 MXR20_AG_Bikes_r1_0_B.indd 96-97
A Open HARDWARE FOR STEP 4.
4
B Carefully feed the CABLES (11) through the HANDLEBAR BRACKET (13).
C Attach the HANDLEBAR (12) to the HANDLEBAR BRACKET (13) using 4
BOLTS (D) and 4 NUTS (E).
U30
D Snap CONSOLE BRIDGE COVER (14) into position.
U50
E Carefully feed the CABLES (11) through the CONSOLE BRIDGE (9).
F Attach the HANDLEBAR BRACKET (13) to the CONSOLE BRIDGE (9)
using 4 BOLTS (F).
Hardware For Step 4
Description Qty
D Bolt (20mm) 4
F
E Nut 4
F Bolt (12mm) 4
11
11 12 13 E
4
D
6
14
10
A Open HARDWARE FOR STEP 5.
5
B Connect the CABLES (11) to the CONSOLE (15) and carefully tuck them into
the CONSOLE BRIDGE (9).
C Attach the CONSOLE (15) to the CONSOLE BRIDGE (9) using 4 BOLTS (G).
U30
D Attach the CONSOLE BACK COVER (16) to the console (15) and CONSOLE
BRIDGE (9) using 6 SCREWS (H).
U50
Hardware For Step 5
Description Qty
G Screw 4
H Screw 6
15
13
9
9
11
A Attach the RIGHT PEDAL to the RIGHT CRANK ARM, tightening it
6
clockwise with the provided 13mm/15mm flat wrench.
B Attach the LEFT PEDAL onto the left crank arm, tightening it
counter-clockwise with the provided 13mm/15mm flat wrench.
(NOTE: The left crank arm is reversed threaded so it is very
U30
important that it is tightened counter-clockwise. Tightening it the
opposite way can damage the pedal or the crank arm or both.)
U50
G
16
H
